NSP151R-BEXRKE (2020)

Toyota Vios/Yaris

Production Dec 2020 - Sep 9999
Engine 2NRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2012- )SED

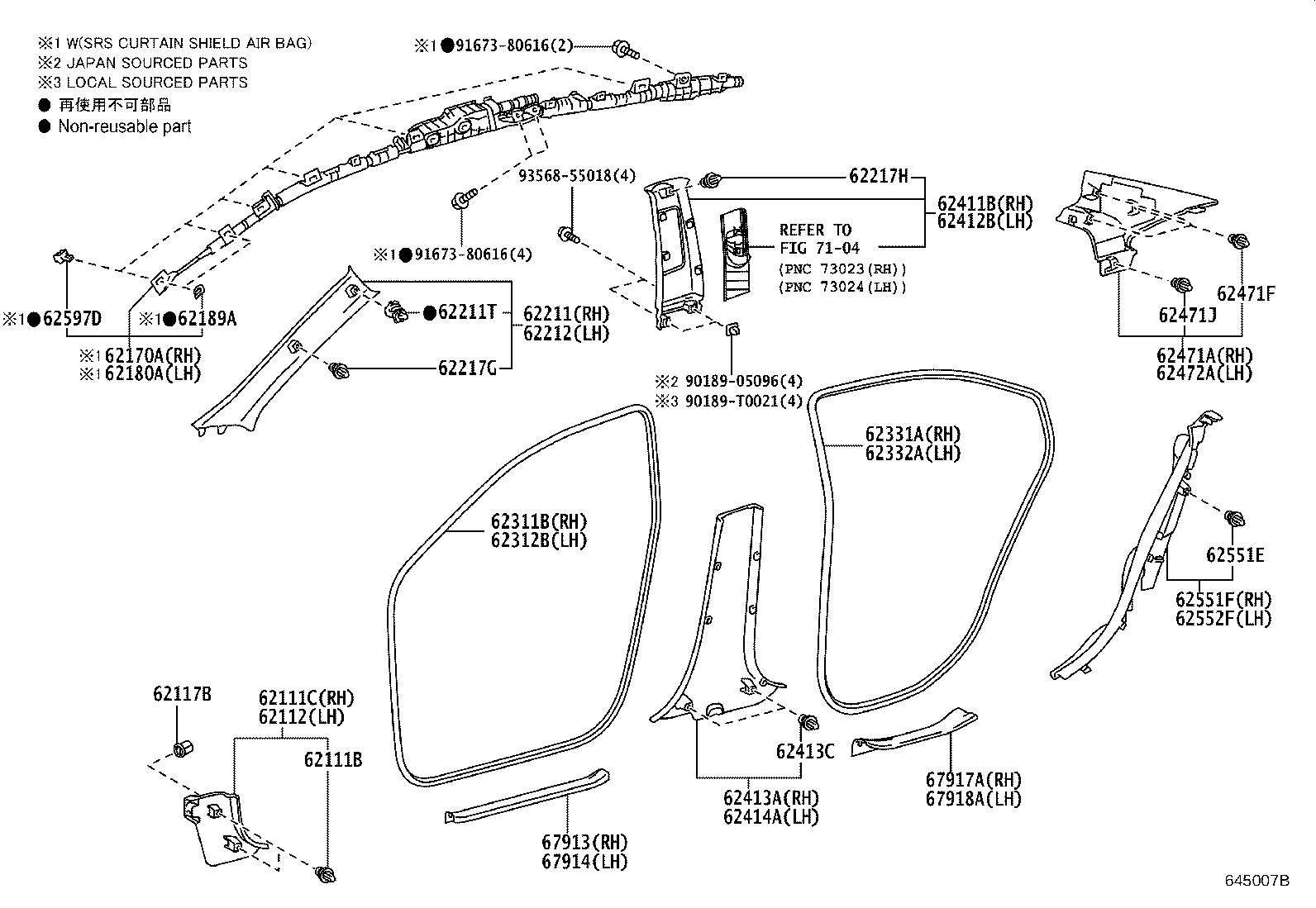

Click highlighted areas on diagram

diagram 62111C 62112 62117B 62117C 62170A 62180A 62189A 62211 62211T 62212 62217G 62217H 62311B 62312B 62331A 62332A 62411B 62412B 62413A 62413C 62414A 62471A 62471F 62471J 62472A 62551E 62551F 62551G 62552F 62597D 67913 67914 67917A 67918A 7104 90167T0020 90189T0021 9167380616 9167380616
Part # Description Qty Price
62111C - BOARD, COWL SIDE TRIM, RH
62111-0D250C0

NSP151

BLACK,TRIM2#

 1
62112 - BOARD, COWL SIDE TRIM, LH
62112-0D290C0

NSP151

BLACK,TRIM2#

 1
62117B - CLIP, NO.1(FOR COWL SIDE TRIM)
90467-06147

NSP151

 2
62117C - CLIP, NO.2(FOR COWL SIDE TRIM)
90467-T0021

NSP151

 4
62170A - AIR BAG ASSY, CURTAIN SHIELD, RH
62170-0D080

NSP151..SED

 1
62180A - AIR BAG ASSY, CURTAIN SHIELD, LH
62180-0D080

NSP151..SED

 1
62189A - SPACER, CURTAIN SHIELD AIR BAG CLIP
62189-42010

NSP151

 4
62211 - GARNISH, FRONT PILLAR, RH
62211-0DA80B0

NSP151..SED..(G,R)

GRAY,TRIM2#

 1
62211-0D880B0

NSP151..SED..D

GRAY,TRIM2#

 1
62211T - CLIP(FOR FRONT PILLAR GARNISH)
62217-52120

NSP151

 2
62212 - GARNISH, FRONT PILLAR, LH
62212-0D880B0

NSP151..SED..D

GRAY,TRIM2#

 1
62212-0DA80B0

NSP151..SED..(G,R)

GRAY,TRIM2#

 1
62217G - CLIP, FRONT PILLAR GARNISH
90467-T0021

NSP151

 2
62217H - CLIP, CENTER PILLER GARNISH
90467-10188

NSP151

 2
62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62311-0D260

NSP151

 1
62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62312-0D260

NSP151

 1
62331A - WEATHERSTRIP, REAR DOOR OPENING TRIM, RH
62331-0D180

NSP151..SED

 1
62332A - WEATHERSTRIP, REAR DOOR OPENING TRIM, LH
62332-0D160

NSP151..SED

 1
62411B - GARNISH, CENTER PILLAR, UPPER RH
62410-0D020B0

NSP151..SED

GRAY,TRIM2#

 1
62412B - GARNISH, CENTER PILLAR, UPPER LH
62420-0D020B0

NSP151..SED

GRAY,TRIM2#

 1
62413A - GARNISH, CENTER PILLAR, LOWER RH
62413-0D390C0

NSP151

BLACK,TRIM2#

 1
62413C - CLIP (FOR CENTER LOWER GARNISH)
90467-T0021

NSP151

 4
62414A - GARNISH, CENTER PILLAR, LOWER LH
62414-0D390C0

NSP151

BLACK,TRIM2#

 1
62471A - GARNISH, ROOF SIDE, INNER RH
62471-0D840B0

NSP151..SED..D

GRAY,TRIM2#

 1
62471-0D850B0

NSP151..SED..(G,R)

GRAY,TRIM2#

 1
62471F - CLIP (FOR ROOF SIDE, INNER UPPER GARNISH)
90467-T0021

NSP151..SED

 6
62471J - CLIP (FOR ROOF SIDE GARNISH)
90467-10167

NSP151..SED

 2
62472A - GARNISH, ROOF SIDE, INNER LH
62472-0D840B0

NSP151..SED..D

GRAY,TRIM2#

 1
62472-0D850B0

NSP151..SED..(G,R)

GRAY,TRIM2#

 1
62551E - CLIP(FOR REAR SEAT SIDE GARNISH)
90467-10188

NSP151

 2
62551F - GARNISH, REAR SEAT SIDE, RH
62551-0D430C0

NSP151..SED..(G,R)

BLACK,TRIM2#

 1
62551-0D420C0

NSP151..SED..D

BLACK,TRIM2#

 1
62551G - CLIP
90467-06020C0

NSP151..SED..(G,R)

BLACK,TRIM2#

 2
90467-T0046C0

NSP151..SED..(G,R)

BLACK,TRIM2#

 2
62552F - GARNISH, REAR SEAT SIDE, LH
62552-0D420C0

NSP151..SED..D

BLACK,TRIM2#

 1
62552-0D430C0

NSP151..SED..(G,R)

BLACK,TRIM2#

 1
62597D - CLIP
90467-18017

NSP151..SED

 12
67913 - PLATE, FRONT DOOR SCUFF, RH
67913-0D280C0

NSP151

BLACK,TRIM2#

 1
67914 - PLATE, FRONT DOOR SCUFF, LH
67914-0D270C0

NSP151

BLACK,TRIM2#

 1
67917A - PLATE, REAR DOOR SCUFF, RH
67917-0D210C0

NSP151

BLACK,TRIM2#

 1
67918A - PLATE, REAR DOOR SCUFF, LH
67918-0D210C0

NSP151

BLACK,TRIM2#

 1
Common parts
90167-T0020
90189-T0021
91673-80616
Linked diagrams
7104

(2101- )4D

Click highlighted areas on diagram

diagram 62111B 62111C 62112 62117B 62170A 62180A 62189A 62211 62211T 62212 62217G 62217H 62311B 62312B 62331A 62332A 62411B 62412B 62413A 62413C 62414A 62471A 62471F 62471J 62472A 62551E 62551F 62552F 62597D 67913 67914 67917A 67918A 7104 9018905096 90189T0021 9167380616 9167380616 9356855018
Part # Description Qty Price
Common parts
90189-05096
90189-T0021
91673-80616
93568-55018
Linked diagrams
7104
