NSP151R-BEXRKE (2020)
Toyota Vios/Yaris
Production
Dec 2020
-
Sep 9999
Engine
2NRFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

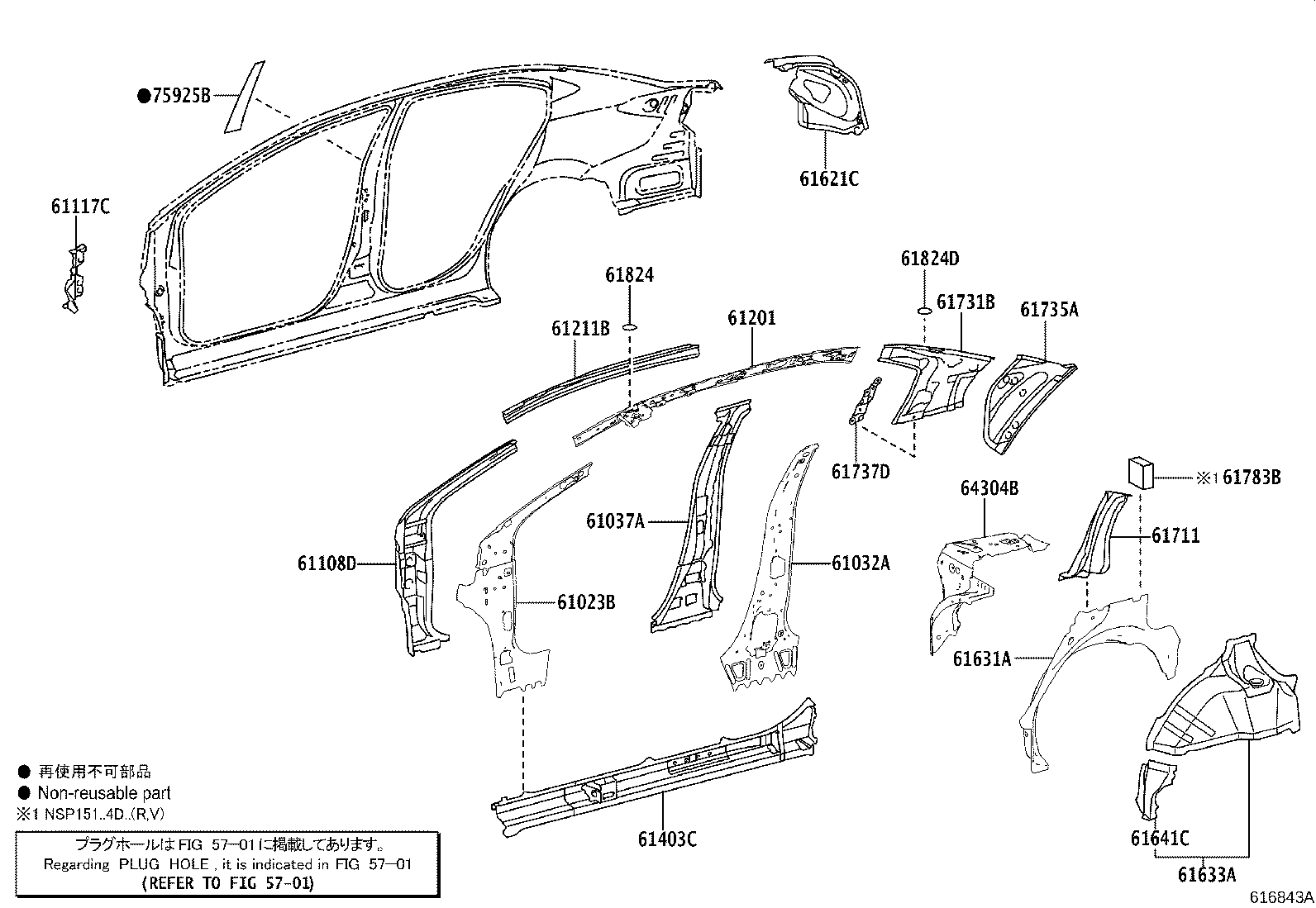

ILLUST NO. 1 OF 3(2012- )SED
Click highlighted areas on diagram
INNER PANEL, RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-0D370 |
NSP151 |
1 | ||
| 61032A - PILLAR SUB-ASSY, NO.1 INNER, RH | ||||
| 61032-0D300 |
NSP151 |
1 | ||
| 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH | ||||
| 61037-0D917 |
NSP151 |
1 | ||
| 61108D - REINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER RH | ||||
| 61108-0D240 |
NSP151 |
1 | ||
| 61117C - GUSSET, SIDE PANEL TO COWL, RH | ||||
| 61117-0D030 |
NSP151 |
1 | ||
| 61203 - RAIL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61203-0D030 |
NSP151 |
1 | ||
| 61205 - RAIL SUB-ASSY, ROOF SIDE, INNER REAR RH | ||||
| 61205-0D010 |
NSP151..SED |
1 | ||
| 61211B - RAIL, ROOF SIDE, OUTER REAR RH | ||||
| 61211-0D260 |
NSP151..SED |
1 | ||
| 61403C - REINFORCE SUB-ASSY, ROCKER, OUTER RH | ||||
| 61403-0D370 |
NSP151 |
1 | ||
| 61621C - TROUGH, LUGGAGE COMPARTMENT OPENING, RH | ||||
| 61063-0D110 |
NSP151..SED |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-K0010 |
NSP151..SED |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61605-0D050 |
NSP151..SED |
1 | ||
| 61641C - GUSSET, QUARTER WHEEL HOUSE, FRONT RH | ||||
| 61641-0D070 |
NSP151 |
1 | ||
| 61711 - PANEL, ROOF SIDE, OUTER RH | ||||
| 61711-K0030 |
NSP151..SED |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-K0060 |
NSP151..SED |
1 | ||
| 61735A - PANEL, ROOF SIDE, INNER REAR RH | ||||
| 61735-K0020 |
NSP151..SED |
1 | ||
| 61737D - REINFORCEMENT, ROOF SIDE, INNER RH | ||||
| 61737-0D040 |
NSP151..SED |
1 | ||
| 61783B - PAD, REAR WHEEL OPENING EXTENSION, NO.1 | ||||
| 61783-0D100 |
NSP151..SED..(G,R) |
1 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-0D020 |
NSP151 |
2 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-0D020 |
NSP151 |
2 | ||
| 64304B - REINFORCE SUB-ASSY, PACKAGE TRAY BRACKET, RH | ||||
| 64304-0D250 |
NSP151..SED |
1 | ||
| 75925B - TAPE, BLACK OUT, NO.3 RH | ||||
| 75925-0D090 |
NSP151 |
1 | ||
| Linked diagrams | ||||
| 5701 | ||||

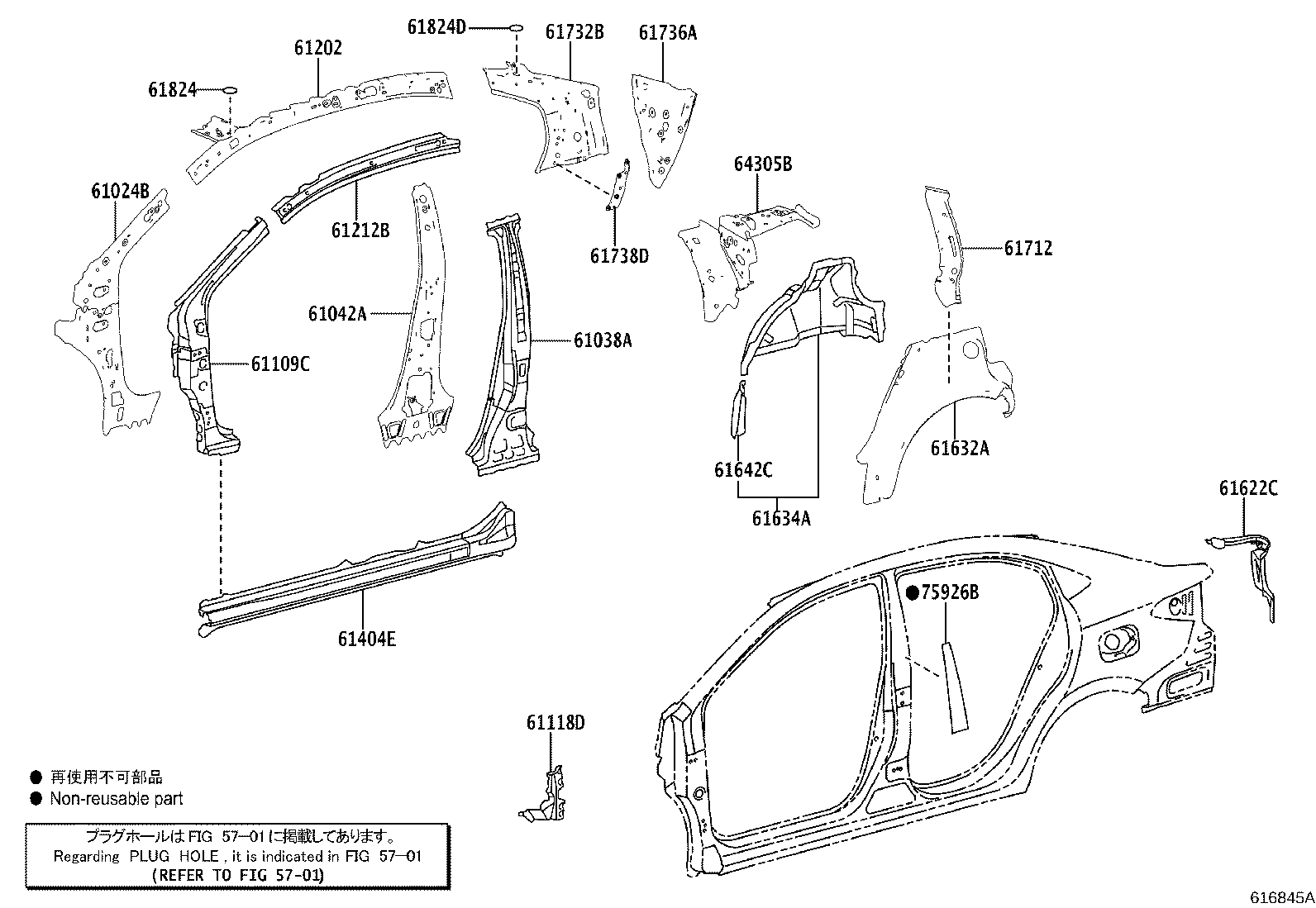

ILLUST NO. 2 OF 3(2012- )SED
Click highlighted areas on diagram
INNER PANEL, LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-0D370 |
NSP151 |
1 | ||
| 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH | ||||
| 61038-0D916 |
NSP151 |
1 | ||
| 61042A - PILLAR SUB-ASSY, NO.1 INNER, LH | ||||
| 61042-0D300 |
NSP151 |
1 | ||
| 61109C - REINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER LH | ||||
| 61109-0D240 |
NSP151 |
1 | ||
| 61118D - GUSSET, SIDE PANEL TO COWL, LH | ||||
| 61118-0D020 |
NSP151 |
1 | ||
| 61204 - RAIL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61204-0D030 |
NSP151 |
1 | ||
| 61206 - RAIL SUB-ASSY, ROOF SIDE, INNER REAR LH | ||||
| 61206-0D010 |
NSP151..SED |
1 | ||
| 61212B - RAIL, ROOF SIDE, OUTER REAR LH | ||||
| 61212-0D250 |
NSP151..SED |
1 | ||
| 61404E - REINFORCE SUB-ASSY, ROCKER, OUTER LH | ||||
| 61404-0D370 |
NSP151 |
1 | ||
| 61622C - TROUGH, LUGGAGE COMPARTMENT OPENING, LH | ||||
| 61064-0D110 |
NSP151..SED |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-K0010 |
NSP151..SED |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61606-0D080 |
NSP151..SED |
1 | ||
| 61642C - GUSSET, QUARTER WHEEL HOUSE, FRONT LH | ||||
| 61642-0D070 |
NSP151 |
1 | ||
| 61712 - PANEL, ROOF SIDE, OUTER LH | ||||
| 61712-K0030 |
NSP151..SED |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-K0060 |
NSP151..SED |
1 | ||
| 61736A - PANEL, ROOF SIDE, INNER REAR LH | ||||
| 61736-K0020 |
NSP151..SED |
1 | ||
| 61738D - REINFORCEMENT, ROOF SIDE, INNER LH | ||||
| 61738-0D040 |
NSP151..SED |
1 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-0D020 |
NSP151 |
2 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-0D020 |
NSP151 |
2 | ||
| 64305B - REINFORCE SUB-ASSY, PACKAGE TRAY BRACKET, LH | ||||
| 64305-0D250 |
NSP151..SED |
1 | ||
| 75926B - TAPE, BLACK OUT, NO.3 LH | ||||
| 75926-0D090 |
NSP151 |
1 | ||
| Linked diagrams | ||||
| 5701 | ||||

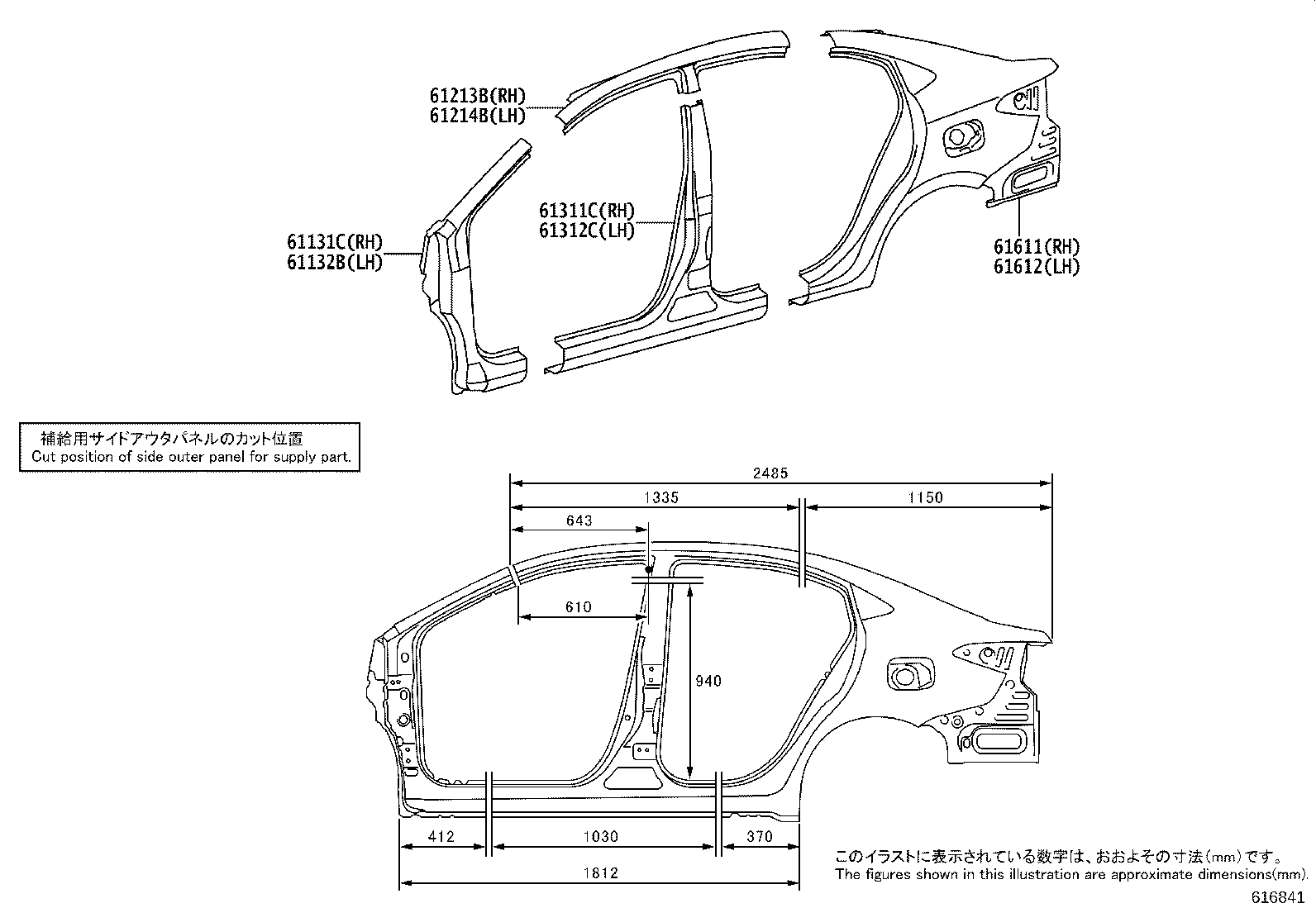

ILLUST NO. 3 OF 3(2012- )SED
Click highlighted areas on diagram
OUTER PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61131C - PILLAR, FRONT BODY, OUTER RH | ||||
| 61131-0D200 |
NSP151 |
1 | ||
| 61132B - PILLAR, FRONT BODY, OUTER LH | ||||
| 61132-0D200 |
NSP151 |
1 | ||
| 61213B - RAIL, ROOF SIDE, OUTER NO.2 RH | ||||
| 61213-0D100 |
NSP151..SED |
1 | ||
| 61214B - RAIL, ROOF SIDE, OUTER NO.2 LH | ||||
| 61214-0D100 |
NSP151..SED |
1 | ||
| 61311C - PANEL, REAR BODY FRONT OUTSIDE, RH | ||||
| 61311-0D130 |
NSP151 |
1 | ||
| 61312C - PANEL, REAR BODY FRONT OUTSIDE, LH | ||||
| 61312-0D130 |
NSP151..SED |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-0D260 |
NSP151..SED |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-0D410 |
NSP151..SED |
1 | ||
ILLUST NO. 1 OF 3(2101- )4D
Click highlighted areas on diagram
OUTSIDE PANEL
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 2 OF 3(2101- )4D
Click highlighted areas on diagram
INSIDE PANEL,RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 5701 | ||||
ILLUST NO. 3 OF 3(2101- )4D
Click highlighted areas on diagram
INSIDE PANEL,LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 5701 | ||||
