NSP151R-BEXRKE (2020)

Toyota Vios/Yaris

Production Dec 2020 - Sep 9999
Engine 2NRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2012- )

Click highlighted areas on diagram

diagram 55394F 58808 58810J 58811D 58811G 58815C 58816D 58817A 58821C 58821C 58833D 58833D 58833D 58833D 58837B 58839A 58843 58871 58872A 58873 58904B 58905 58908A 58910C 58910D 58911A 58912C 58916 58921A 58923A 58959B 58993 58995A 58997 90119T0237 90119T0279 90119T0279 90119T0342 90159T0037 90163T0001 90167T0011 90167T0012 90167T0012 90167T0012 9046705172 9046805135 9046805135 9046805135 9167380616 9354054014 9354054014 9356855016 9356855016 9356855016 9356855016
Part # Description Qty Price
55394F - CUSHION, INSTRUMENT PANEL, LOWER
55394-0D320

NSP151..G,R

 1
58810J - BOX ASSY, CONSOLE
58810-0D030C0

NSP151..D

BLACK,TRIM2#

 1
58810-0D130C0

NSP151..G,R

BLACK,TRIM2#

 1
58811D - CLIP(FOR CONSOLE BOX)
90467-10203

NSP151

 2
58811G - CLIP(CONSOL BOX)
90467-05172

NSP151

 5
58815C - CARPET, CONSOLE BOX
58815-0D310

NSP151

 1
58816D - INSERT, CONSOLE BOX, FRONT NO.1
58816-0D050C0

NSP151

BLACK,TRIM2#

 1
58817A - INSERT, CONSOLE BOX, FRONT NO.2
58817-0D050C0

NSP151

BLACK,TRIM2#

 1
58821C - PANEL, CONSOLE, UPPER
58821-0D580

NSP151..G,R

 1
58821-0D570

NSP151..CVT..D

 1
58821C - PANEL, CONSOLE, UPPER
58821-0D580

NSP151..G,R

 1
58821-0D570

NSP151..CVT..D

 1
58833D - CLIP(FOR CONSOLE COVER)
90467-05172

NSP151

 4
58833D - CLIP(FOR CONSOLE COVER)
90467-05172

NSP151

 4
58833D - CLIP(FOR CONSOLE COVER)
90467-05172

NSP151

 4
58833D - CLIP(FOR CONSOLE COVER)
90467-05172

NSP151

 4
58837B - BOX, CONSOLE CUP HOLDER
58837-0D120C0

NSP151

BLACK,TRIM2#

 1
58839A - COVER, CONSOLE BOX HOLE
58839-0D050C0

NSP151

BLACK,TRIM2#

 1
58843 - BEZEL, SHIFTING HOLE
58843-0D480

NSP151..R

 1
58871 - CUSHION, CONSOLE BOX
58871-0D100

NSP151..G,R

 1
58872A - CUSHION, CONSOLE BOX, NO.2
58872-0D050

NSP151..G,R

 1
58873 - CUSHION, CONSOLE BOX, NO.3
58873-0D020

NSP151..G,R

 1
58904B - COVER SUB-ASSY, PARKING BRAKE HOLE
58904-0D150C0

NSP151

BLACK,TRIM2#

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-0D220C1

NSP151..HB;NSP151..SED..(D,R)

BLACK,TRIM2#

 1
58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908-0D020C0

NSP151

BLACK,TRIM2#

 1
58910C - BOX ASSY, CONSOLE, REAR
58910-0DB00C0

NSP151..HB;NSP151..SED..(D,R)

BLACK,TRIM2#

 1
58910D - CLIP(FOR CONSOLE BOX)
90467-05164C7

NSP151

BLACK,TRIM2#

 1
58911A - PANEL, BOX SIDE, NO.1
58911-0D400C0

NSP151

BLACK,TRIM2#

 1
58912C - PANEL, BOX SIDE, NO.2
58912-0D040C0

NSP151

BLACK,TRIM2#

 1
58916 - MAT, BOX BOTTOM
58916-0D120C0

NSP151

BLACK,TRIM2#

 1
58921A - PANEL, REAR CONSOLE, UPPER
58921-0D030

NSP151

 1
58923A - PANEL, CONSOLE REAR END
58923-0D120C0

NSP151..D

BLACK,TRIM2#

 1
58923-0D270C0

NSP151..G,R

BLACK,TRIM2#

 1
58959B - CUSHION, CONSOLE COMPARTMENT DOOR
90541-03078

NSP151

 2
58993 - BRACKET, CONSOLE BOX MOUNTING, REAR
58993-0D010

NSP151

 1
58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1
58995-0D150

NSP151

 1
58997 - BRACKET, CONSOLE BOX MOUNTING, NO.3
58997-0D070

NSP151

 1
Common parts
90119-T0237
90119-T0279
90119-T0342
90159-T0037
90163-T0001
90167-T0011
90167-T0012
90467-05172
90468-05135
91673-80616
93540-54014
93568-55016

(2101- )

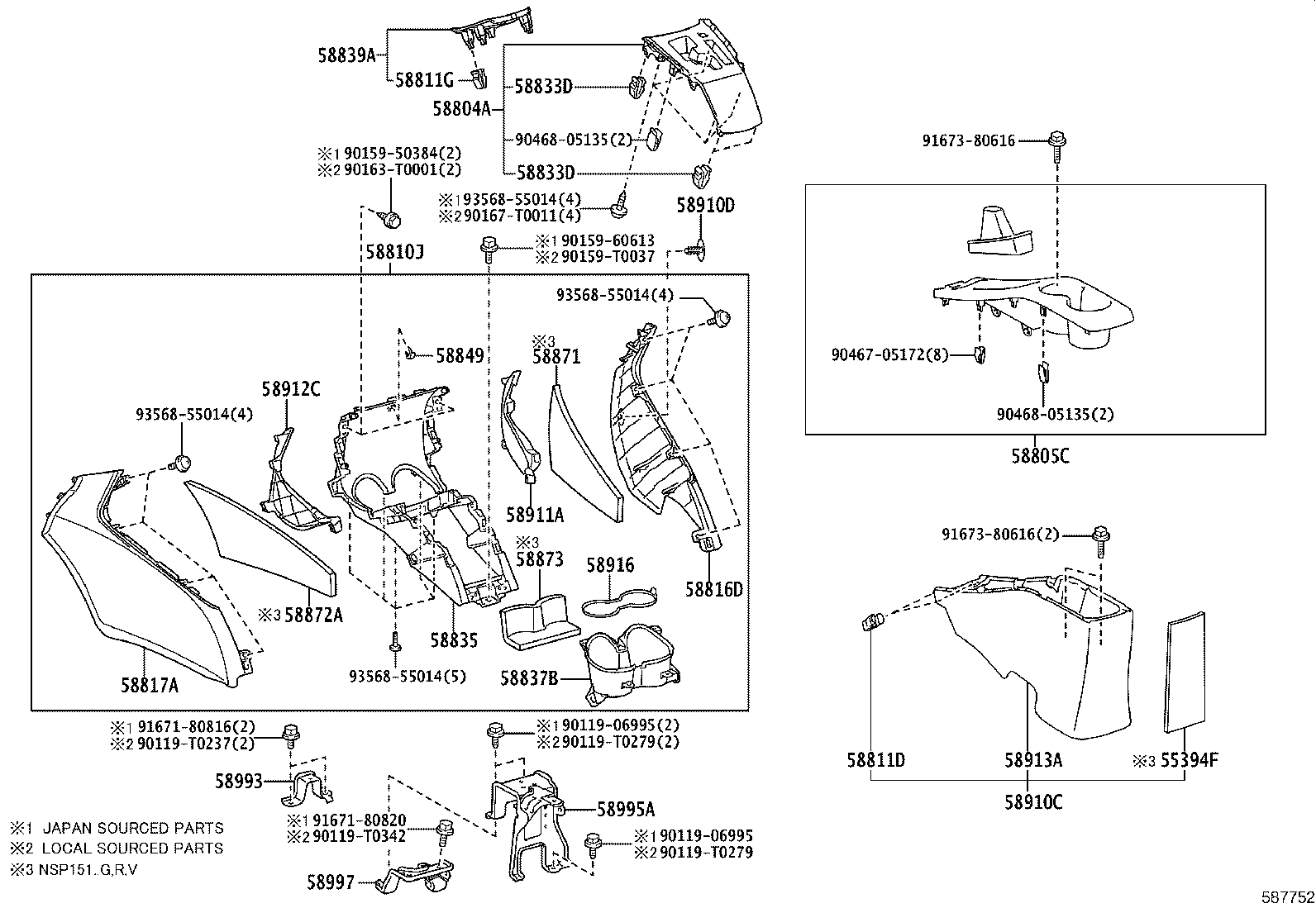

Click highlighted areas on diagram

diagram 55394F 58804A 58805C 58810J 58811D 58811G 58816D 58817A 58833D 58833D 58835 58837B 58839A 58849 58871 58872A 58873 58910C 58910D 58911A 58912C 58913A 58916 58993 58995A 58997 9011906995 9011906995 90119T0237 90119T0279 90119T0279 90119T0342 9015950384 9015960613 90159T0037 90163T0001 90167T0011 9046705172 9046805135 9046805135 9167180816 9167180820 9167380616 9167380616 9356855014 9356855014 9356855014 9356855014
Part # Description Qty Price
Common parts
90119-06995
90119-T0237
90119-T0279
90119-T0342
90159-50384
90159-60613
90159-T0037
90163-T0001
90167-T0011
90467-05172
90468-05135
91671-80816
91671-80820
91673-80616
93568-55014
