NSP151R-BEXRKE (2020)
Toyota Vios/Yaris
Production
Dec 2020
-
Sep 9999
Engine
2NRFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(2012- )SED

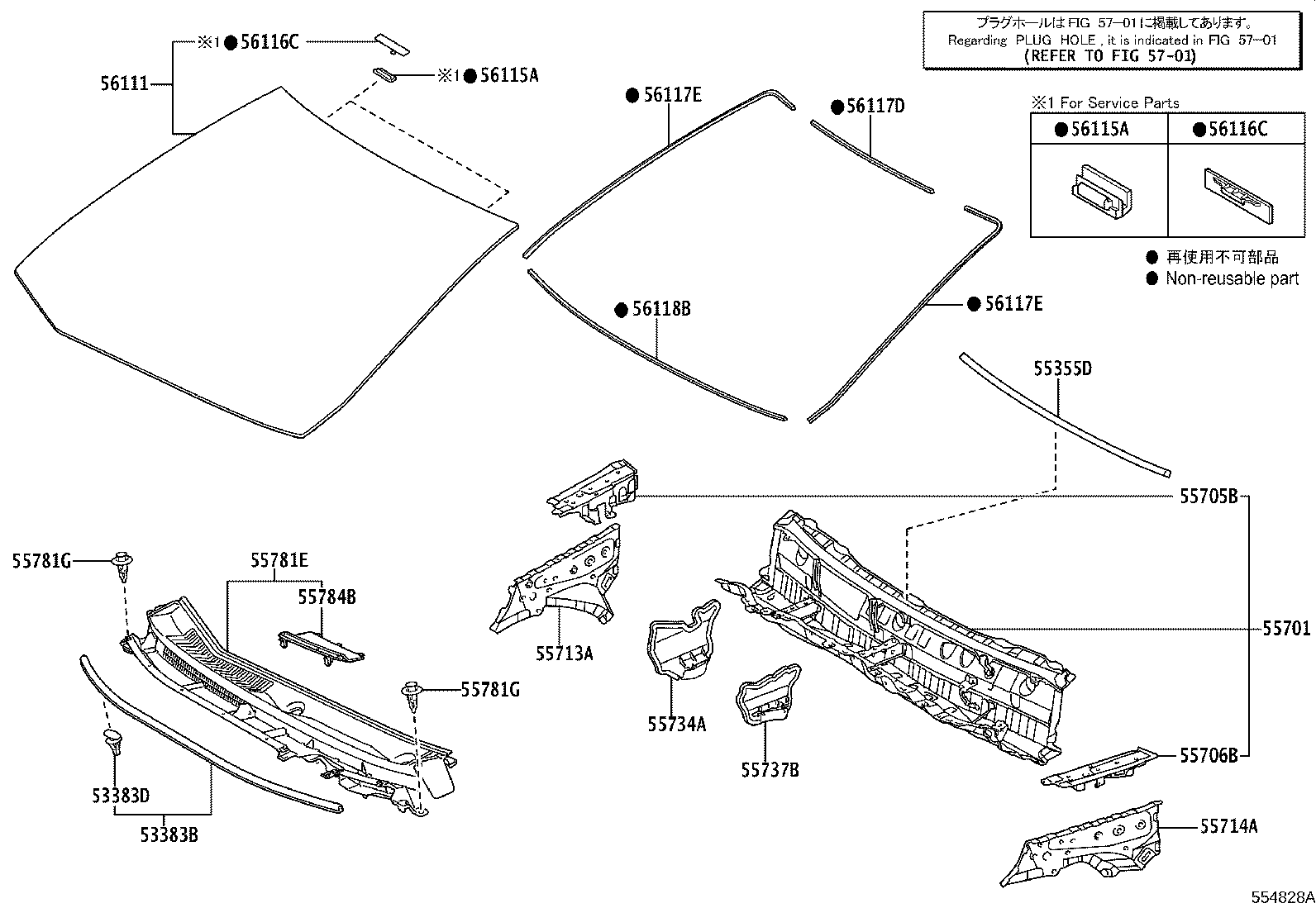

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53383B - SEAL, HOOD TO COWL TOP | ||||
| 53383-0D180 |
NSP151 |
1 | ||
| 53383D - CLIP(FOR HOOD TO COWL TOP SEAL) | ||||
| 67867-0D070 |
NSP151 |
5 | ||
| 55355D - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-0D480 |
NSP151 |
1 | ||
| 55701 - PANEL SUB-ASSY, COWL | ||||
| 55700-0D450 |
NSP151 |
1 | ||
| 55705B - PANEL SUB-ASSY, COWL TOP SIDE, RH | ||||
| 55705-0D120 |
NSP151 |
1 | ||
| 55706B - PANEL SUB-ASSY, COWL TOP SIDE, LH | ||||
| 55706-0D120 |
NSP151 |
1 | ||
| 55713A - PANEL, COWL TOP SIDE, RH | ||||
| 55713-0D250 |
NSP151 |
1 | ||
| 55714A - PANEL, COWL TOP SIDE, LH | ||||
| 55714-0D250 |
NSP151 |
1 | ||
| 55735A - PLATE, WATER GUARD, LH | ||||
| 55734-0D060 |
NSP151 |
1 | ||
| 55737B - SEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1 | ||||
| 55737-0D200 |
NSP151 |
1 | ||
| 55781E - LOUVER SUB-ASSY, COWL TOP VENTILATOR | ||||
| 55708-0D322 |
NSP151 |
1 | ||
| 55781G - CLIP, COWL TOP VENTILATOR LOUVER | ||||
| 52161-0K040 |
NSP151 |
2 | ||
| 55781G - CLIP, COWL TOP VENTILATOR LOUVER | ||||
| 52161-0K040 |
NSP151 |
2 | ||
| 55784B - LOUVER, COWL TOP VENTILATOR, CENTER NO.2 | ||||
| 55784-0D110 |
NSP151 |
1 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56101-0D430 |
NSP151..R |
1 | ||
| 56101-0D420 |
NSP151..D |
1 | ||
| 56101-0DD20 |
NSP151..G,R MLM PACKAGE&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE |
1 | ||
| 56115A - STOPPER, WINDSHIELD GLASS, NO.1 | ||||
| 56115-30100 |
NSP151 |
1 | ||
| 56115A - STOPPER, WINDSHIELD GLASS, NO.1 | ||||
| 56115-30100 |
NSP151 |
1 | ||
| 56116C - STOPPER, WINDSHIELD GLASS, NO.2 | ||||
| 56116-22050 |
NSP151 |
1 | ||
| 56116C - STOPPER, WINDSHIELD GLASS, NO.2 | ||||
| 56116-22050 |
NSP151 |
1 | ||
| 56117D - DAM, WINDSHIELD GLASS ADHESIVE | ||||
| 56117-0D160 |
NSP151..G,R L=549,MLM PACKAGE&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE |
1 | ||
| 56117-0D160 |
NSP151 L=549 |
1 | ||
| 56117E - DAM, WINDOW GLASS ADHESIVE | ||||
| 56117-0D170 |
NSP151..G,R L=915,MLM PACKAGE&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE |
2 | ||
| 56117-0D170 |
NSP151 L=915 |
2 | ||
| 56117E - DAM, WINDOW GLASS ADHESIVE | ||||
| 56117-0D170 |
NSP151..G,R L=915,MLM PACKAGE&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE |
2 | ||
| 56117-0D170 |
NSP151 L=915 |
2 | ||
| 56118B - DAM, WINDOW GLASS ADHESIVE, NO.2 | ||||
| 56117-0D180 |
NSP151..G,R L=1182,MLM PACKAGE&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE |
1 | ||
| 56117-0D180 |
NSP151 L=1182 |
1 | ||
| Linked diagrams | ||||
| 5701 | ||||
(2101- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 5701 | ||||
