NSP151R-BEXRKE (2020)
Toyota Vios/Yaris
Production
Dec 2020
-
Sep 9999
Engine
2NRFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 2(2012- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52161V - PIECE, INSTRUMENT PANEL | ||||
| 52161-0K040 |
NSP151 |
2 | ||
| 52161V - PIECE, INSTRUMENT PANEL | ||||
| 52161-0K040 |
NSP151 |
2 | ||
| 55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER | ||||
| 55302-0D260C0 |
NSP151 BLACK,TRIM2# |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-0D220C0 |
NSP151 BLACK,TRIM2# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-0D390 |
NSP151 |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55308-0D070 |
NSP151 |
1 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-0D280C0 |
NSP151 BLACK,TRIM2# |
1 | ||
| 55318C - PANEL, INSTRUMENT SIDE, LH | ||||
| 55318-0D240C0 |
NSP151 BLACK,TRIM2# |
1 | ||
| 55322A - BRACKET, INSTRUMENT PANEL, NO.2 | ||||
| 55322-0D240 |
NSP151 |
1 | ||
| 55324B - BRACKET, INSTRUMENT PANEL, NO.4 | ||||
| 55324-0D240 |
NSP151 |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-0D771 |
NSP151 |
1 | ||
| 55349A - CUSHION, INSTRUMENT PANEL | ||||
| 55349-0D370 |
NSP151 |
2 | ||
| 55349A - CUSHION, INSTRUMENT PANEL | ||||
| 55349-0D370 |
NSP151 |
2 | ||
| 55349C - CUSHION, INSTRUMENT PANEL | ||||
| 55349-0D240 |
NSP151 |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-0D400 |
NSP151 |
1 | ||
| 55394C - BOLT, INSTRUMENT PANEL | ||||
| 55394-52010 |
NSP151 |
4 | ||
| 55394C - BOLT, INSTRUMENT PANEL | ||||
| 55394-52010 |
NSP151 |
4 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-52030 |
NSP151 |
2 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-0D160 |
NSP151 |
1 | ||
| Common parts | ||||
| 90105-T0041 | ||||
| 90105-T0194 | ||||
| 90119-T0106 | ||||
| 90119-T0314 | ||||
| 90159-T0009 | ||||
| 90159-T0014 | ||||
| 90159-T0037 | ||||
| 90167-T0012 | ||||
| 90178-T0007 | ||||
| 90178-T0019 | ||||
| 90183-05103 | ||||
| 90467-05172 | ||||
| Linked diagrams | ||||
| 8202 | ||||
ILLUST NO. 2 OF 2(2012- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55045A - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER RH | ||||
| 55045-0D190 |
NSP151 |
1 | ||
| 55046A - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER LH | ||||
| 55046-0D170 |
NSP151 |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-47010 |
NSP151 |
1 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55408-0D020C0 |
NSP151 BLACK,TRIM2# |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55409-0D040C0 |
NSP151 BLACK,TRIM2# |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55410-0D210C0 |
NSP151 BLACK,TRIM2# |
1 | ||
| 55414C - BEZEL, STARTER SWITCH | ||||
| 55414-0D030C0 |
NSP151 BLACK,TRIM2# |
1 | ||
| 55416C - RETAINER, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55416-0D200 |
NSP151 |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-0D280C0 |
NSP151 BLACK,TRIM2# |
1 | ||
| 55440D - BOX ASSY, INSTRUMENT PANEL | ||||
| 55440-0D250C0 |
NSP151 BLACK,TRIM2# |
1 | ||
| 55444A - SPRING, INSTRUMENT PANEL BOX | ||||
| 55444-0D290 |
NSP151 |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-0D260C0 |
NSP151 BLACK,TRIM2# |
1 | ||
| 55468C - SEAL, INSTRUMENT CLUSTER FINISH PANEL, NO.1 | ||||
| 55468-0D270 |
NSP151 |
1 | ||
| 55480D - PANEL ASSY, INSTRUMENT PANEL FINISH, LWR | ||||
| 55480-0D290C0 |
NSP151 BLACK,TRIM2# |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-12190 |
NSP151 |
1 | ||
| 55521F - COVER, STEREO OPENING, NO.2 | ||||
| 55521-05030 |
NSP151 |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-0D350C0 |
NSP151 BLACK,TRIM2# |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-0D200 |
NSP151 |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-0D210 |
NSP151 |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-0D590 |
NSP151..D |
1 | ||
| 55650-0D600 |
NSP151..G,R |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-0D440 |
NSP151..D |
1 | ||
| 55660-0D450 |
NSP151..G,R |
1 | ||
| 55661A - BEZEL, INSTRUMENT PANEL REGISTER | ||||
| 55661-0D190C0 |
NSP151..D BLACK,TRIM2# |
1 | ||
| 55661-0D110 |
NSP151..G,R |
1 | ||
| 55662A - BEZEL, INSTRUMENT PANEL RESISTER, NO.2 | ||||
| 55662-0D090C0 |
NSP151..D BLACK,TRIM2# |
1 | ||
| 55662-0D200 |
NSP151..G,R |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-0D500 |
NSP151..G;NSP151..SED..R |
1 | ||
| 55670-0D490 |
NSP151..SED..D |
1 | ||
| 58959E - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
NSP151 |
2 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-0D060C0 |
NSP151 BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90167-40057 | ||||
| 90167-T0011 | ||||
| 90167-T0012 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 90468-05135 | ||||
| 93540-14010 | ||||
| 93560-13010 | ||||

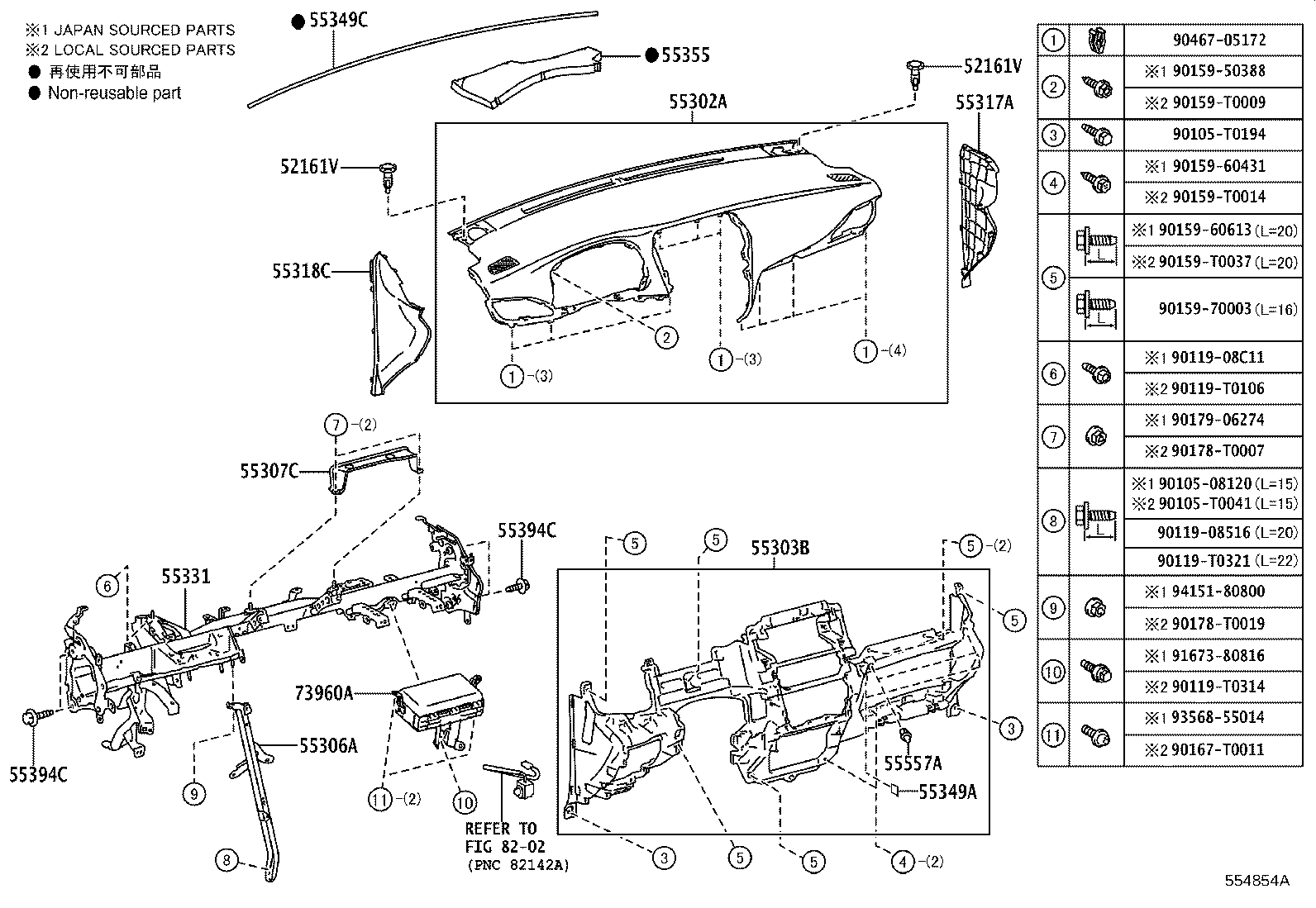

ILLUST NO. 1 OF 2(2101- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-08120 | ||||
| 90105-T0041 | ||||
| 90105-T0194 | ||||
| 90119-08516 | ||||
| 90119-08C11 | ||||
| 90119-T0106 | ||||
| 90119-T0314 | ||||
| 90119-T0321 | ||||
| 90159-50388 | ||||
| 90159-60431 | ||||
| 90159-60613 | ||||
| 90159-70003 | ||||
| 90159-T0009 | ||||
| 90159-T0014 | ||||
| 90159-T0037 | ||||
| 90167-T0011 | ||||
| 90178-T0007 | ||||
| 90178-T0019 | ||||
| 90179-06274 | ||||
| 90467-05172 | ||||
| 91673-80816 | ||||
| 93568-55014 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8202 | ||||

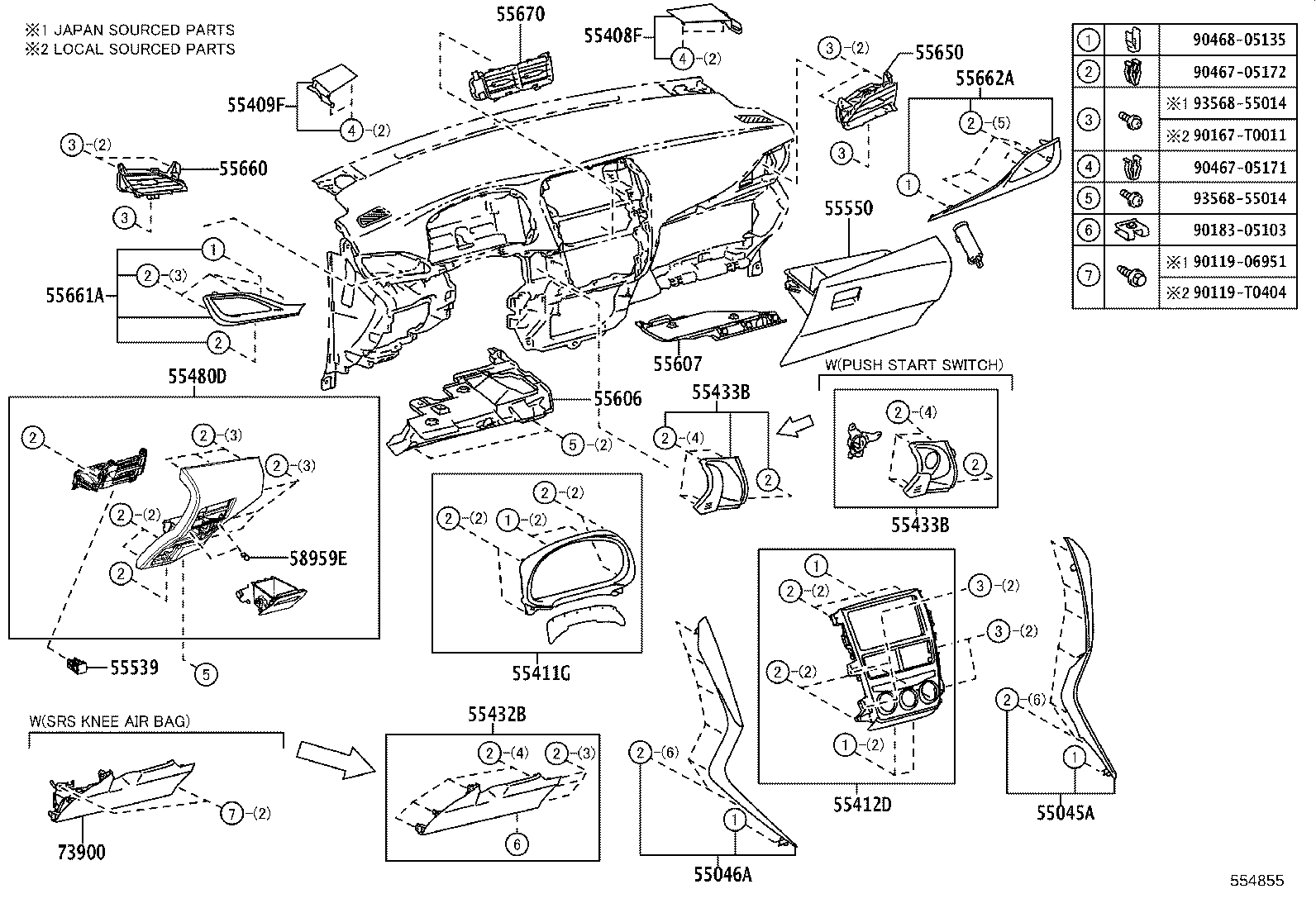

ILLUST NO. 2 OF 2(2101- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06951 | ||||
| 90119-T0404 | ||||
| 90167-T0011 | ||||
| 90183-05103 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 90468-05135 | ||||
| 93568-55014 | ||||
