NSP151R-BEXRKE (2020)
Toyota Vios/Yaris
Production
Dec 2020
-
Sep 9999
Engine
2NRFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(2012- )

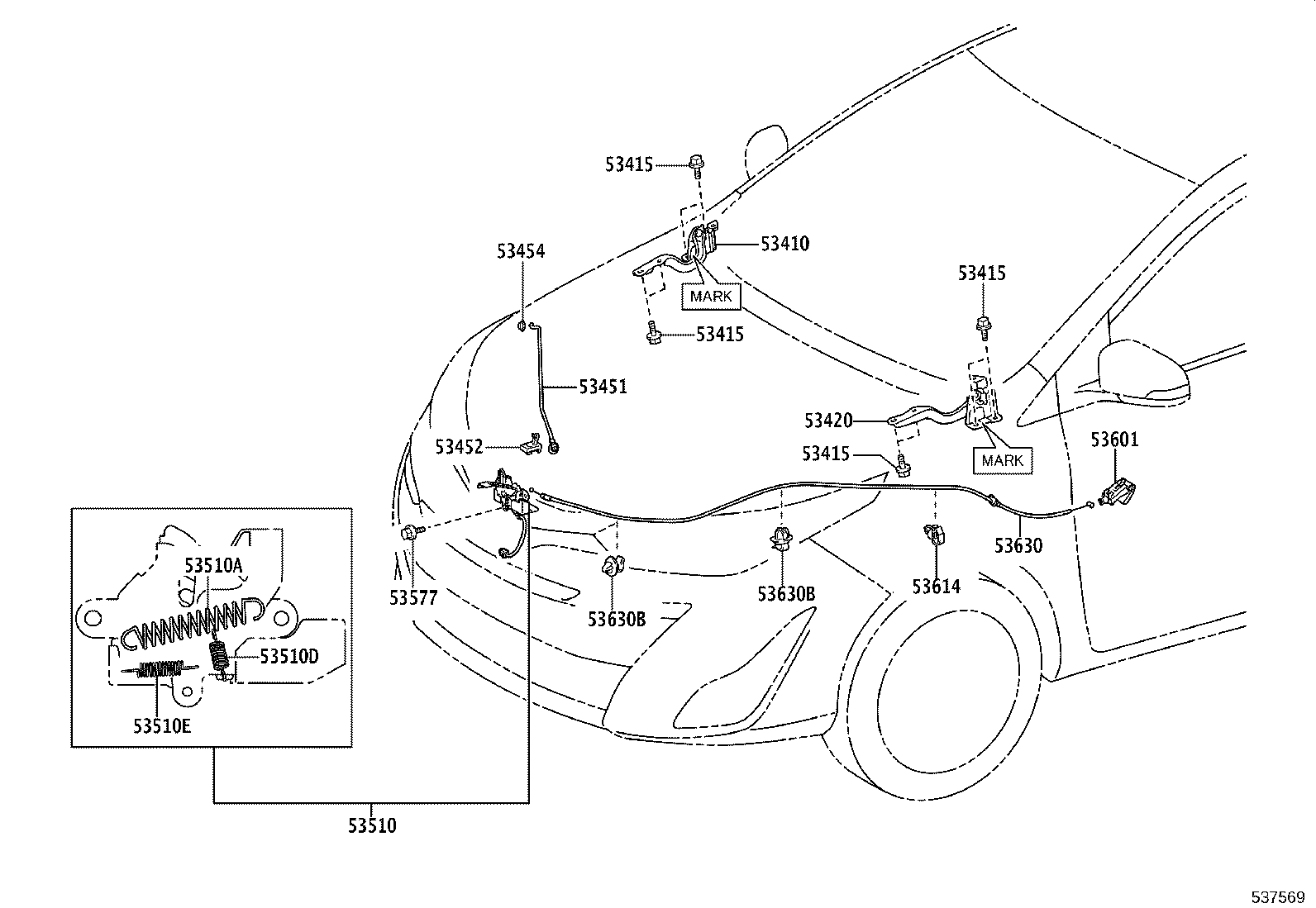

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53410 - HINGE ASSY, HOOD, RH | ||||
| 53410-0D400 |
NSP151 |
1 | ||
| 53420 - HINGE ASSY, HOOD, LH | ||||
| 53420-0D400 |
NSP151 |
1 | ||
| 53451 - ROD, HOOD SUPPORT | ||||
| 53440-0D220 |
NSP151 |
1 | ||
| 53452 - HOLDER, HOOD STAY | ||||
| 53452-0D090 |
NSP151 |
1 | ||
| 53454 - CLIP, HOOD SUPPORT ROD | ||||
| 90480-T0009 |
NSP151 |
1 | ||
| 53510 - LOCK ASSY, HOOD | ||||
| 53510-0D830 |
NSP151 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-16077 |
NSP151 WD=1.6,CW=12 |
1 | ||
| 53510D - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-T0004 |
NSP151 WD=1.2,CW=8.5 |
1 | ||
| 53510E - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-T0005 |
NSP151 WD=0.9,CW=21 |
1 | ||
| 53577 - BOLT, HOOD LOCK | ||||
| 90119-T0273 |
NSP151 |
3 | ||
| 53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL | ||||
| 53601-0D040C1 |
NSP151 BLACK,TRIM2# |
1 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 53630-0D380 |
NSP151 |
1 | ||
| 53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE) | ||||
| 90469-06005 |
NSP151 |
2 | ||
| Common parts | ||||
| 90105-T0120 | ||||
| Linked diagrams | ||||
| 8503 | ||||
