NSP151R-BEXRKE (2020)
Toyota Vios/Yaris
(2012- )

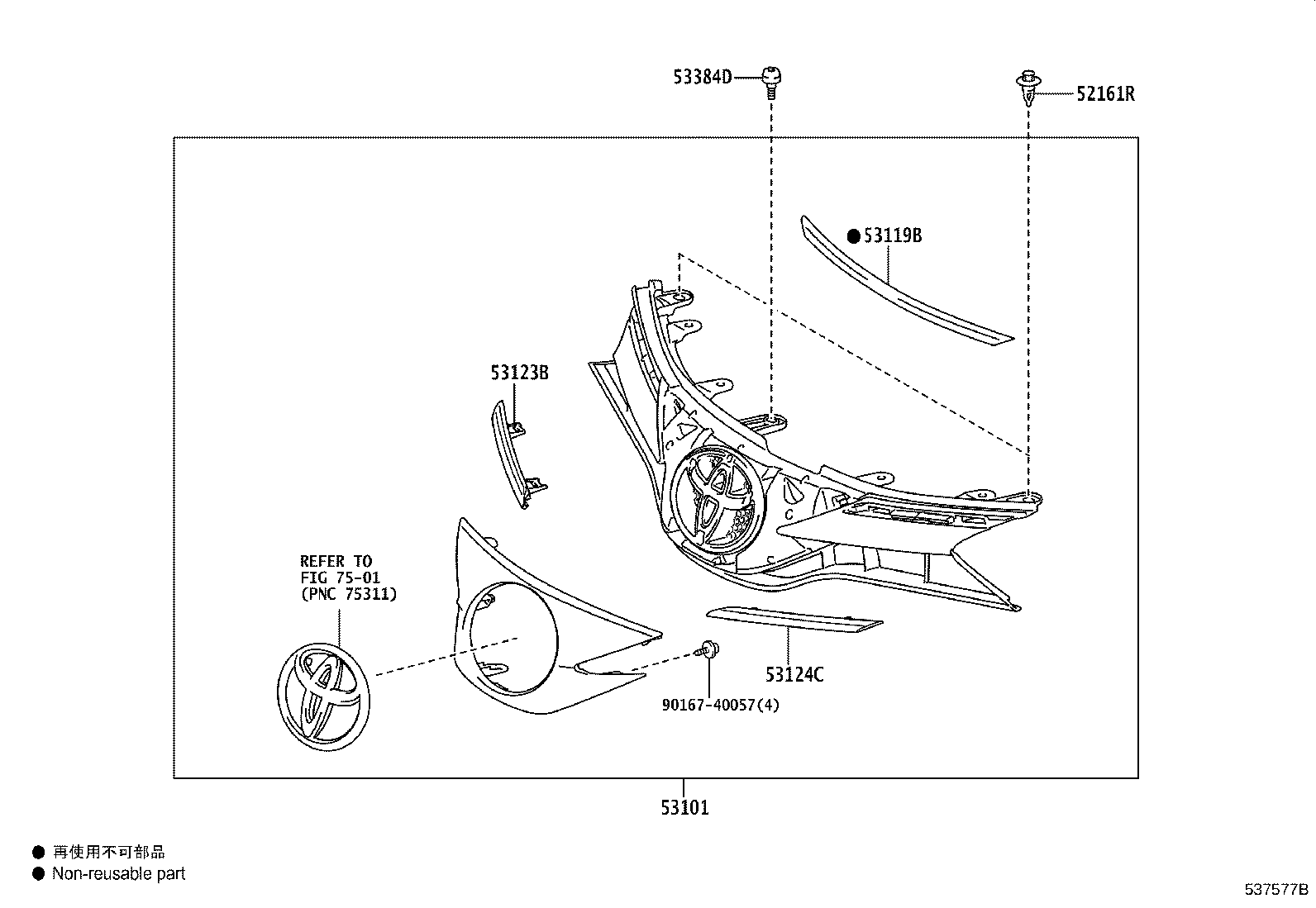

W(HALOGEN HEADLAMP)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52161R - PIECE, FRONT BUMPER | ||||
| 52161-0K040 |
NSP151 |
2 | ||
| 53111A - GRILLE, RADIATOR, OUTSIDE | ||||
| 53111-0D913 |
NSP151..G,R;NSP151..SED..D MLM PACKAGE |
1 | ||
| 53111-0D913 |
NSP151..G,R;NSP151..SED..D |
1 | ||
| 53114A - GRILLE, RADIATOR, INNER | ||||
| 53114-0D030 |
NSP151..G,R;NSP151..SED..D |
1 | ||
| 53114-YP130 |
NSP151..G,R MLM PACKAGE |
1 | ||
| 53114-0D030 |
NSP151..G,R;NSP151..SED..D MLM PACKAGE |
1 | ||
| 53114-YP120 |
NSP151..D MLM PACKAGE |
1 | ||
| 53119B - PROTECTOR, RADIATOR GRILLE | ||||
| 53119-0D020 |
NSP151..G,R;NSP151..SED..D |
1 | ||
| 53123B - MOULDING, RADIATOR GRILLE SIDE, RH | ||||
| 53123-0D310 |
NSP151..R;NSP151..SED..D |
1 | ||
| 53123-YP240 |
NSP151 MLM PACKAGE |
1 | ||
| 53123-0D310 |
NSP151..R;NSP151..SED..D MLM PACKAGE |
1 | ||
| 53124C - MOULDING, RADIATOR GRILLE, UPPER LH | ||||
| 53124-YP240 |
NSP151 MLM PACKAGE |
1 | ||
| 53124-0D430 |
NSP151..R;NSP151..SED..D |
1 | ||
| 53124-0D430 |
NSP151..R;NSP151..SED..D MLM PACKAGE |
1 | ||
| 53384D - CUSHION, HOOD, CENTER | ||||
| 53119-12150 |
NSP151 |
1 | ||
| Common parts | ||||
| 90167-40057 | ||||
| Linked diagrams | ||||
| 7501 | ||||
(2012- )

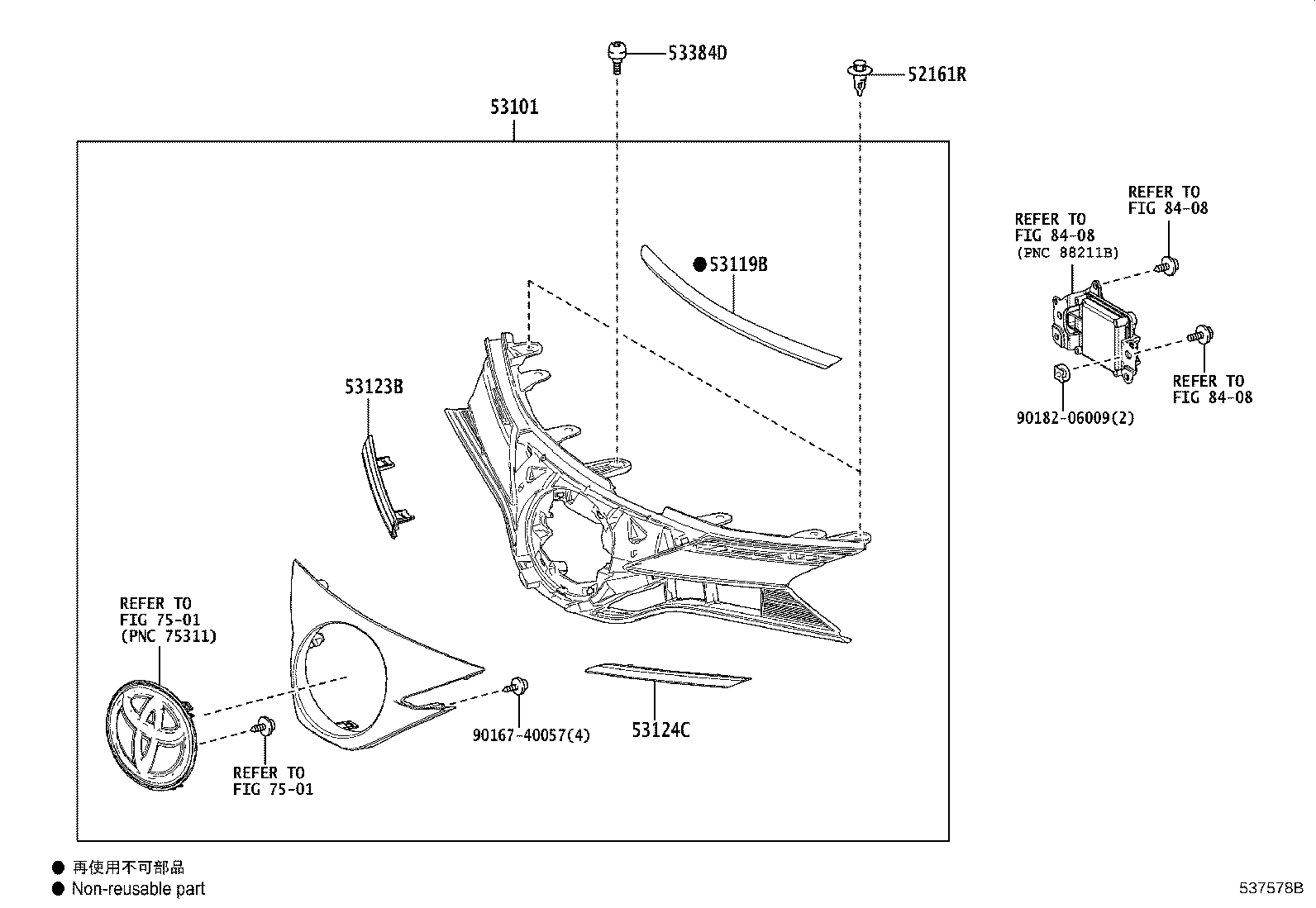

W(LED HEADLAMP)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52161R - PIECE, FRONT BUMPER | ||||
| 52161-0K040 |
NSP151 |
2 | ||
| 53111 - GRILLE, RADIATOR | ||||
| 53111-YP906 |
NSP151 PAINT REQ.,MLM PACKAGE |
1 | ||
| 53114A - GRILLE, RADIATOR, INNER | ||||
| 53114-0D030 |
NSP151..G,R;NSP151..SED..D |
1 | ||
| 53114-YP130 |
NSP151..G,R MLM PACKAGE |
1 | ||
| 53114-0D030 |
NSP151..G,R;NSP151..SED..D MLM PACKAGE |
1 | ||
| 53114-YP120 |
NSP151..D MLM PACKAGE |
1 | ||
| 53119B - PROTECTOR, RADIATOR GRILLE | ||||
| 53119-0D020 |
NSP151..G,R;NSP151..SED..D |
1 | ||
| 53123B - MOULDING, RADIATOR GRILLE SIDE, RH | ||||
| 53123-0D310 |
NSP151..R;NSP151..SED..D |
1 | ||
| 53123-YP240 |
NSP151 MLM PACKAGE |
1 | ||
| 53123-0D310 |
NSP151..R;NSP151..SED..D MLM PACKAGE |
1 | ||
| 53124C - MOULDING, RADIATOR GRILLE, UPPER LH | ||||
| 53124-YP240 |
NSP151 MLM PACKAGE |
1 | ||
| 53124-0D430 |
NSP151..R;NSP151..SED..D |
1 | ||
| 53124-0D430 |
NSP151..R;NSP151..SED..D MLM PACKAGE |
1 | ||
| 53384D - CUSHION, HOOD, CENTER | ||||
| 53119-12150 |
NSP151 |
1 | ||
| Common parts | ||||
| 90167-40057 | ||||
| 90167-50063 | ||||
| 90182-06009 | ||||
| Linked diagrams | ||||
| 7501 | ||||
| 8408 | ||||
(2101- )D,G,R
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90167-40057 | ||||
| Linked diagrams | ||||
| 7501 | ||||
(2101- )G,V ; (2101- )4D..R
W(TOYOTA SAFETY SENSE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90167-40057 | ||||
| 90182-06009 | ||||
| Linked diagrams | ||||
| 7501 | ||||
| 8408 | ||||
