NSP151R-BEXRKE (2020)

Toyota Vios/Yaris

Production Dec 2020 - Sep 9999
Engine 2NRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2012- )SED

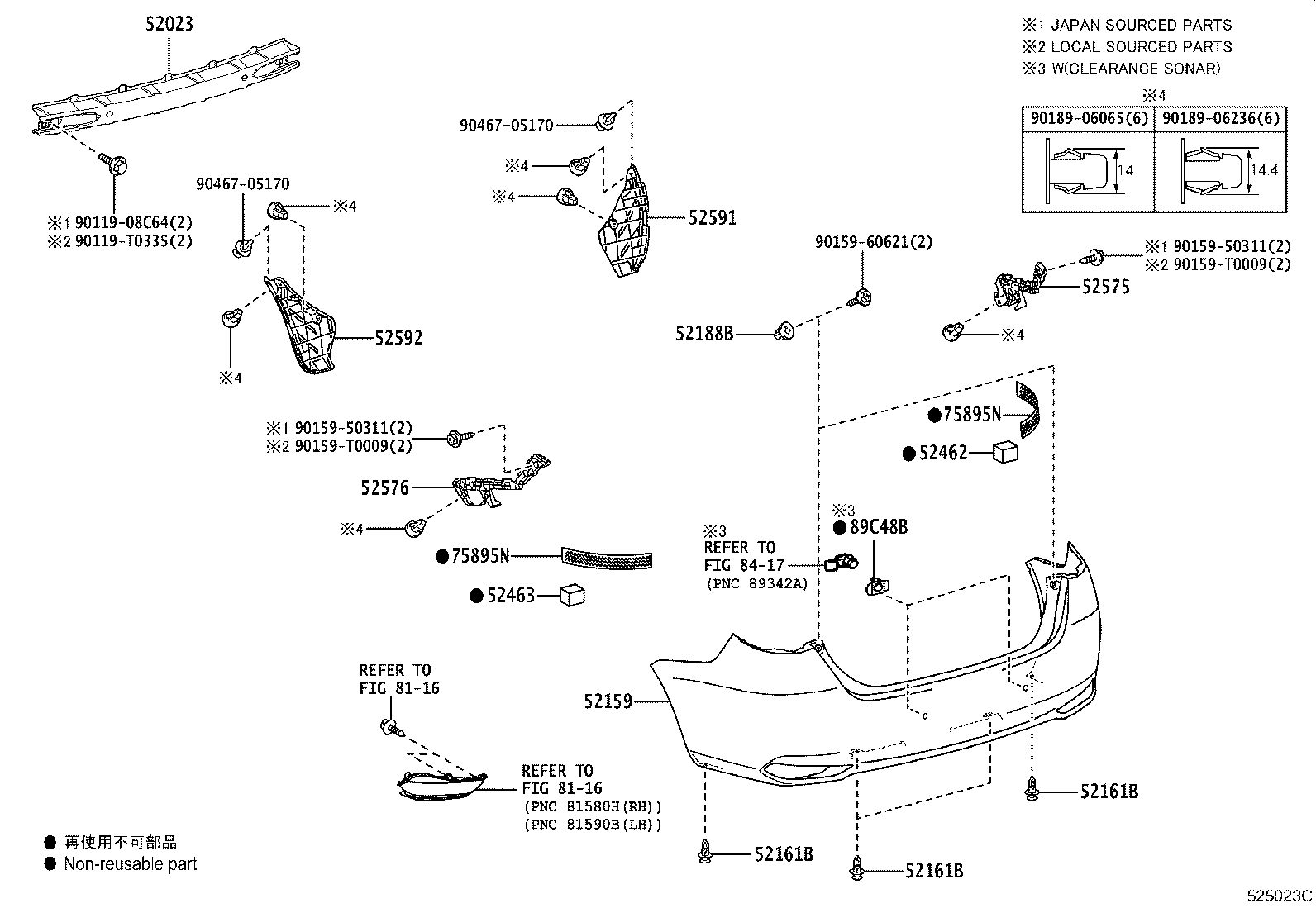

Click highlighted areas on diagram

diagram 52023 52159 52161B 52161B 52161B 52188B 52462 52463 52575 52576 52591 52592 75895N 75895N 8116 8116 89C48A 89C48B 90119T0335 9015960621 90159T0009 90159T0009 90189T0018 90189T0018 90189T0018 90189T0018 90467T0047 90467T0047
Part # Description Qty Price
52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER
52023-0D190

NSP151

 1
52159 - COVER, REAR BUMPER
52159-0U964

NSP151..SED..(D,R)

PAINT REQ.

 1
52161B - PIECE, REAR BUMPER
52161-0K040

NSP151..SED

 4
52161B - PIECE, REAR BUMPER
52161-0K040

NSP151..SED

 4
52161B - PIECE, REAR BUMPER
52161-0K040

NSP151..SED

 4
52188B - SPACER, REAR BUMPER MOUNTING
52188-33040

NSP151

 2
52462 - PAD, REAR BUMPER, RH
52462-0D020

NSP151..SED

 1
52463 - PAD, REAR BUMPER, LH
52462-0D020

NSP151..SED

 1
52575 - RETAINER, REAR BUMPER SIDE, RH
52575-0D340

NSP151..SED

 1
52576 - RETAINER, REAR BUMPER SIDE, LH
52576-0D330

NSP151..SED

 1
52591 - SEAL, REAR BUMPER SIDE, RH
52591-0D400

NSP151..SED

 1
52592 - SEAL, REAR BUMPER SIDE, LH
52592-0D400

NSP151..SED

 1
75895N - TAPE, MOULDING, NO.1
75895-53010

NSP151

 2
75895N - TAPE, MOULDING, NO.1
75895-53010

NSP151

 2
89C48B - RETAINER, ULTRASONIC SENSOR, REAR CENTER
89348-0D030

NSP151

 2
Common parts
90119-T0335
90159-60621
90159-T0009
90189-T0018
90467-T0047
Linked diagrams
8116

(2101- )4D

Click highlighted areas on diagram

diagram 52023 52159 52161B 52161B 52161B 52188B 52462 52463 52575 52576 52591 52592 75895N 75895N 8116 8116 8417 89C48B 9011908C64 90119T0335 9015950311 9015950311 9015960621 90159T0009 90159T0009 9018906065 9018906236 9046705170 9046705170
Part # Description Qty Price
Common parts
90119-08C64
90119-T0335
90159-50311
90159-60621
90159-T0009
90189-06065
90189-06236
90467-05170
Linked diagrams
8116
8417
