NSP151R-BEXRKE (2020)
Toyota Vios/Yaris

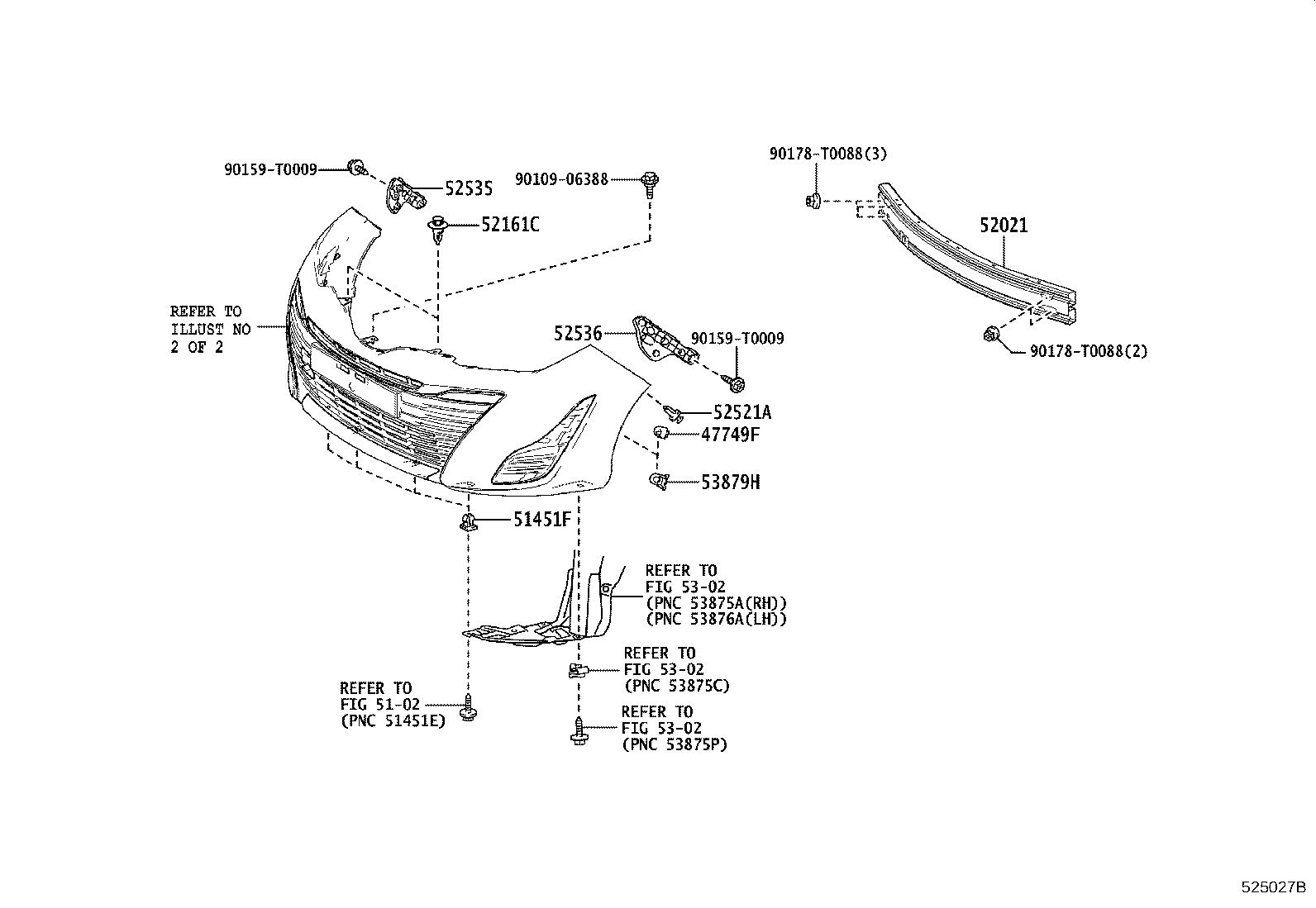

ILLUST NO. 1 OF 2(2012- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47749F - CLIP, PIN HOLD | ||||
| 47749-33030 |
NSP151 |
2 | ||
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-0D140 |
NSP151 |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-0K040 |
NSP151 |
2 | ||
| 52521A - CLIP(FOR FRONT BUMPER RETAINER) | ||||
| 90467-T0047 |
NSP151 |
2 | ||
| 90467-05170 |
NSP151 |
2 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-0D230 |
NSP151 |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52536-0D230 |
NSP151 |
1 | ||
| 53879H - RETAINER, FRONT FENDER LINER | ||||
| 53879-33030 |
NSP151 |
2 | ||
| 76851G - GROMMET, SCREW, NO.1 | ||||
| 90189-06237 |
NSP151 |
4 | ||
| 90189-T0024 |
NSP151 |
4 | ||
| Common parts | ||||
| 90109-06388 | ||||
| 90159-T0009 | ||||
| 90178-T0088 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5302 | ||||

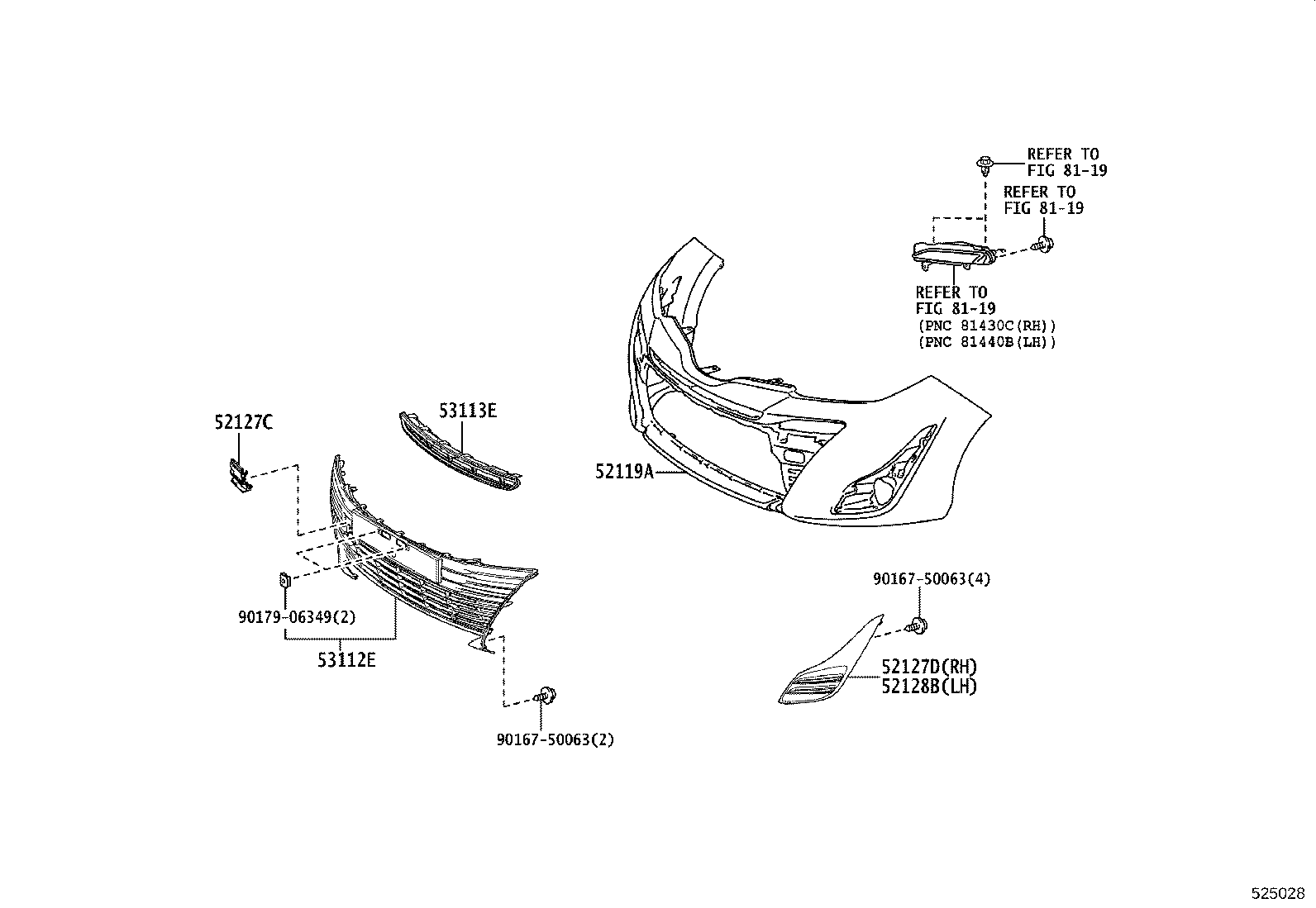

ILLUST NO. 2 OF 2(2012- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-0U939 |
NSP151..D,R PAINT REQ. |
1 | ||
| 52119-0U939 |
NSP151..D,R PAINT REQ.,MLM PACKAGE |
1 | ||
| 52119-YP932 |
NSP151..D,R PAINT REQ.,MLM PACKAGE |
1 | ||
| 52127C - COVER, FRONT BUMPER HOLE | ||||
| 52721-0D210 |
NSP151..SED..(D,R) |
1 | ||
| 52721-YP190 |
NSP151..SED MLM PACKAGE |
1 | ||
| 52721-0D210 |
NSP151..SED..(D,R) MLM PACKAGE |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-0D700 |
NSP151..SED..D NO PAINT REQ. |
1 | ||
| 52127-0D710 |
NSP151..SED..(G,R) NO PAINT REQ.,MLM PACKAGE |
1 | ||
| 52127-0D700 |
NSP151..SED..D NO PAINT REQ.,MLM PACKAGE |
1 | ||
| 52127-0D710 |
NSP151..SED..(G,R) NO PAINT REQ. |
1 | ||
| 52127-YP390 |
NSP151 NO PAINT REQ.,MLM PACKAGE |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-0D700 |
NSP151..SED..D NO PAINT REQ. |
1 | ||
| 52127-0D710 |
NSP151..SED..(G,R) NO PAINT REQ.,MLM PACKAGE |
1 | ||
| 52127-0D700 |
NSP151..SED..D NO PAINT REQ.,MLM PACKAGE |
1 | ||
| 52127-0D710 |
NSP151..SED..(G,R) NO PAINT REQ. |
1 | ||
| 52127-YP390 |
NSP151 NO PAINT REQ.,MLM PACKAGE |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-0D450 |
NSP151..SED..D MLM PACKAGE |
1 | ||
| 52128-0D450 |
NSP151..SED..D |
1 | ||
| 52128-0D460 |
NSP151..SED..(G,R) |
1 | ||
| 52128-0D460 |
NSP151..SED..(G,R) MLM PACKAGE |
1 | ||
| 52128-YP390 |
NSP151 MLM PACKAGE |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-0D450 |
NSP151..SED..D MLM PACKAGE |
1 | ||
| 52128-0D450 |
NSP151..SED..D |
1 | ||
| 52128-0D460 |
NSP151..SED..(G,R) |
1 | ||
| 52128-0D460 |
NSP151..SED..(G,R) MLM PACKAGE |
1 | ||
| 52128-YP390 |
NSP151 MLM PACKAGE |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-0D560 |
NSP151..SED..(D,R) NO PAINT REQ.,MLM PACKAGE |
1 | ||
| 53112-YP350 |
NSP151..SED NO PAINT REQ.,MLM PACKAGE |
1 | ||
| 53112-0D560 |
NSP151..SED..(D,R) NO PAINT REQ. |
1 | ||
| 53113E - GRILLE, RADIATOR, LOWER NO.2 | ||||
| 53113-0D030 |
NSP151 MLM PACKAGE |
1 | ||
| 53113-0D030 |
NSP151 |
1 | ||
| Common parts | ||||
| 90167-50063 | ||||
| 90179-06349 | ||||
| Linked diagrams | ||||
| 8102 | ||||
| 8119 | ||||
ILLUST NO. 1 OF 2(2012- )
GR SPORT&MLM PACKAGE OR MLM PACKAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47749F - CLIP, PIN HOLD | ||||
| 47749-33030 |
NSP151 |
2 | ||
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-0D140 |
NSP151 |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-0K040 |
NSP151 |
2 | ||
| 52521A - CLIP(FOR FRONT BUMPER RETAINER) | ||||
| 90467-T0047 |
NSP151 |
2 | ||
| 90467-05170 |
NSP151 |
2 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-0D230 |
NSP151 |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52536-0D230 |
NSP151 |
1 | ||
| 53879H - RETAINER, FRONT FENDER LINER | ||||
| 53879-33030 |
NSP151 |
2 | ||
| 76851G - GROMMET, SCREW, NO.1 | ||||
| 90189-06237 |
NSP151 |
4 | ||
| 90189-T0024 |
NSP151 |
4 | ||
| Common parts | ||||
| 90109-06388 | ||||
| 90159-T0009 | ||||
| 90178-T0088 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5302 | ||||
ILLUST NO. 2 OF 2(2012- )
GR SPORT&MLM PACKAGE OR MLM PACKAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-0U939 |
NSP151..D,R PAINT REQ. |
1 | ||
| 52119-0U939 |
NSP151..D,R PAINT REQ.,MLM PACKAGE |
1 | ||
| 52119-YP932 |
NSP151..D,R PAINT REQ.,MLM PACKAGE |
1 | ||
| 52127C - COVER, FRONT BUMPER HOLE | ||||
| 52721-0D210 |
NSP151..SED..(D,R) |
1 | ||
| 52721-YP190 |
NSP151..SED MLM PACKAGE |
1 | ||
| 52721-0D210 |
NSP151..SED..(D,R) MLM PACKAGE |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-0D700 |
NSP151..SED..D NO PAINT REQ. |
1 | ||
| 52127-0D710 |
NSP151..SED..(G,R) NO PAINT REQ.,MLM PACKAGE |
1 | ||
| 52127-0D700 |
NSP151..SED..D NO PAINT REQ.,MLM PACKAGE |
1 | ||
| 52127-0D710 |
NSP151..SED..(G,R) NO PAINT REQ. |
1 | ||
| 52127-YP390 |
NSP151 NO PAINT REQ.,MLM PACKAGE |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-0D450 |
NSP151..SED..D MLM PACKAGE |
1 | ||
| 52128-0D450 |
NSP151..SED..D |
1 | ||
| 52128-0D460 |
NSP151..SED..(G,R) |
1 | ||
| 52128-0D460 |
NSP151..SED..(G,R) MLM PACKAGE |
1 | ||
| 52128-YP390 |
NSP151 MLM PACKAGE |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-0D560 |
NSP151..SED..(D,R) NO PAINT REQ.,MLM PACKAGE |
1 | ||
| 53112-YP350 |
NSP151..SED NO PAINT REQ.,MLM PACKAGE |
1 | ||
| 53112-0D560 |
NSP151..SED..(D,R) NO PAINT REQ. |
1 | ||
| 53127D - GRILLE, RADIATOR, LOWER SIDE RH | ||||
| 53127-YP110 |
NSP151 MLM PACKAGE |
1 | ||
| 53128E - GRILLE, RADIATOR, LOWER SIDE LH | ||||
| 53128-YP110 |
NSP151 MLM PACKAGE |
1 | ||
| Common parts | ||||
| 90167-50063 | ||||
| 90179-06349 | ||||
| Linked diagrams | ||||
| 8102 | ||||
ILLUST NO. 1 OF 2(2101- )4D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90109-06388 | ||||
| 90159-T0009 | ||||
| 90178-T0088 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5302 | ||||
ILLUST NO. 2 OF 2(2101- )4D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90167-50063 | ||||
| 90179-06349 | ||||
| Linked diagrams | ||||
| 8119 | ||||
