NSP151R-BEXRKE (2020)
Toyota Vios/Yaris
Production
Dec 2020
-
Sep 9999
Engine
2NRFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(2012- )CVT

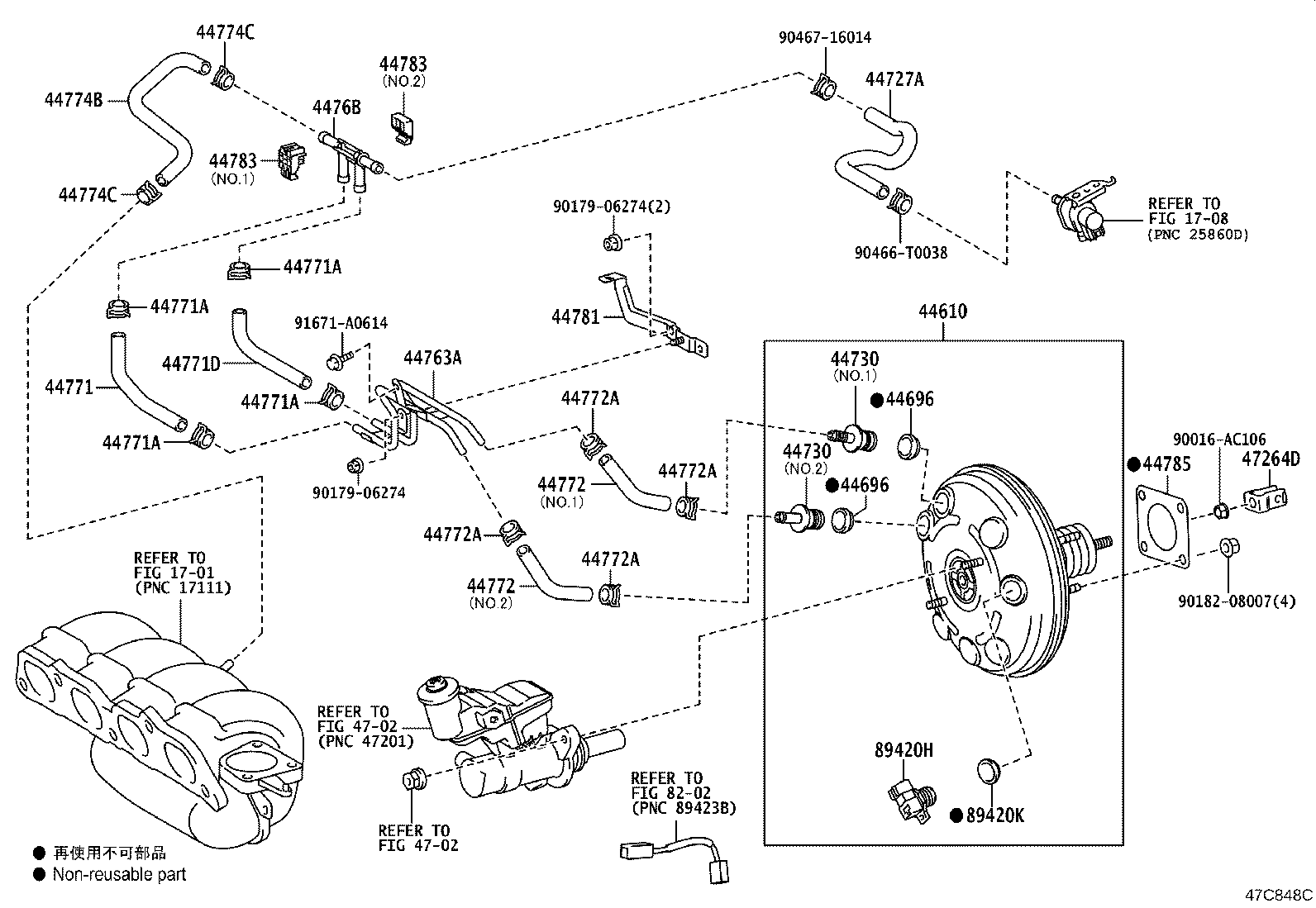

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-0D680 |
NSP151..CVT..(D,R) |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90016-AT003 |
NSP151..CVT |
3 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90016-AT003 |
NSP151..CVT |
3 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90016-AT003 |
NSP151..CVT |
3 | ||
| 44727A - HOSE, AIR, NO.2 | ||||
| 17342-0Y070 |
NSP151..CVT |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-52010 |
NSP151..CVT |
2 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-52010 |
NSP151..CVT |
2 | ||
| 4476B - EJECTOR, BRAKE BOOSTER VACUUM | ||||
| 4476B-48010 |
NSP151..CVT |
1 | ||
| 44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE) | ||||
| 90467-16014 |
NSP151..CVT |
4 | ||
| 44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE) | ||||
| 90467-16014 |
NSP151..CVT |
4 | ||
| 44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE) | ||||
| 90467-16014 |
NSP151..CVT |
4 | ||
| 44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE) | ||||
| 90467-16014 |
NSP151..CVT |
4 | ||
| 44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER | ||||
| 44772-0D430 |
NSP151..CVT NO.1:REFER ILLUST. |
1 | ||
| 44772-0D440 |
NSP151..CVT NO.2:REFER ILLUST. |
1 | ||
| 44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER | ||||
| 44772-0D430 |
NSP151..CVT NO.1:REFER ILLUST. |
1 | ||
| 44772-0D440 |
NSP151..CVT NO.2:REFER ILLUST. |
1 | ||
| 44774B - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-0D190 |
NSP151..CVT |
1 | ||
| 44774C - CLIP(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 90467-16014 |
NSP151..CVT |
2 | ||
| 44774C - CLIP(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 90467-16014 |
NSP151..CVT |
2 | ||
| 44781 - BRACKET, HOSE | ||||
| 44781-0D120 |
NSP151..CVT |
1 | ||
| 44783 - CLAMP, VACUUM HOSE | ||||
| 44783-0D030 |
NSP151..CVT NO.2:REFER ILLUST. |
1 | ||
| 44783-0D020 |
NSP151..CVT NO.1:REFER ILLUST. |
1 | ||
| 44783 - CLAMP, VACUUM HOSE | ||||
| 44783-0D030 |
NSP151..CVT NO.2:REFER ILLUST. |
1 | ||
| 44783-0D020 |
NSP151..CVT NO.1:REFER ILLUST. |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-0D030 |
NSP151 |
1 | ||
| 47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD | ||||
| 47264-0D040 |
NSP151 |
1 | ||
| 89420H - SENSOR ASSY, VACUUM | ||||
| 89421-52020 |
NSP151 |
1 | ||
| Common parts | ||||
| 90178-T0007 | ||||
| 90182-T0028 | ||||
| 90466-T0038 | ||||
| 90467-16014 | ||||
| 94120-41000 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 1708 | ||||
| 4702 | ||||
(2101- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90016-AC106 | ||||
| 90179-06274 | ||||
| 90182-08007 | ||||
| 90466-T0038 | ||||
| 90467-16014 | ||||
| 91671-A0614 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 1708 | ||||
| 4702 | ||||
| 8202 | ||||
