NSP151R-BEXRKE (2020)
Toyota Vios/Yaris
Production
Dec 2020
-
Sep 9999
Engine
2NRFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

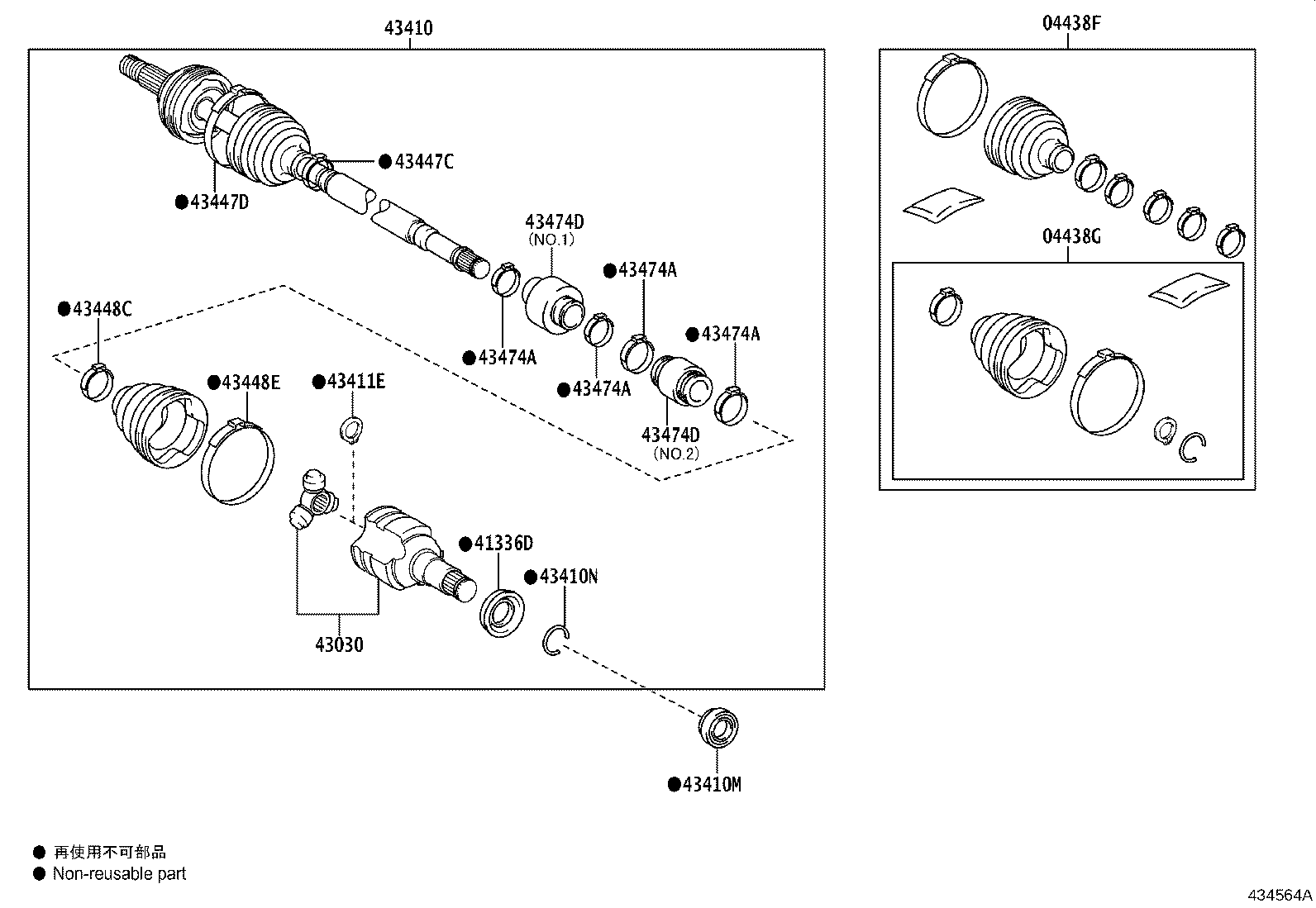

ILLUST NO. 2 OF 2(2012- )
Click highlighted areas on diagram
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH | ||||
| 04427-0D351 |
NSP151 |
1 | ||
| 04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04437-0D250 |
NSP151 |
1 | ||
| 41336D - COVER, FRONT DRIVE SHAFT DUST, RH | ||||
| 41336-0D120 |
NSP151 |
1 | ||
| 43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH | ||||
| 43040-0D030 |
NSP151 |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-0D700 |
NSP151 |
1 | ||
| 43410M - OIL SEAL, FRONT DRIVE SHAFT, RH | ||||
| 90311-34050 |
NSP151..CVT |
1 | ||
| 43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH) | ||||
| 43425-0D390 |
NSP151 |
1 | ||
| 43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) | ||||
| 43425-0D380 |
NSP151 |
1 | ||
| 43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-0DA70 |
NSP151 |
1 | ||
| 43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-0DA80 |
NSP151 |
1 | ||
| 43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 42345-0DA70 |
NSP151 |
1 | ||
| 43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 42345-0DA60 |
NSP151 |
1 | ||
| 43474A - CLAMP (FOR DRIVE SHAFT DAMPER SETTING) | ||||
| 42345-0DB40 |
NSP151 NO.2:REFER ILLUST. |
2 | ||
| 42345-0DA50 |
NSP151 NO.1:REFER ILLUST. |
2 | ||
| 43474A - CLAMP (FOR DRIVE SHAFT DAMPER SETTING) | ||||
| 42345-0DB40 |
NSP151 NO.2:REFER ILLUST. |
2 | ||
| 42345-0DA50 |
NSP151 NO.1:REFER ILLUST. |
2 | ||
| 43474A - CLAMP (FOR DRIVE SHAFT DAMPER SETTING) | ||||
| 42345-0DB40 |
NSP151 NO.2:REFER ILLUST. |
2 | ||
| 42345-0DA50 |
NSP151 NO.1:REFER ILLUST. |
2 | ||
| 43474A - CLAMP (FOR DRIVE SHAFT DAMPER SETTING) | ||||
| 42345-0DB40 |
NSP151 NO.2:REFER ILLUST. |
2 | ||
| 42345-0DA50 |
NSP151 NO.1:REFER ILLUST. |
2 | ||
| 43474D - DAMPER, FRONT DRIVE SHAFT, RH | ||||
| 43474-0D290 |
NSP151 NO.2:REFER ILLUST. |
1 | ||
| 43474-0D140 |
NSP151 NO.1:REFER ILLUST. |
1 | ||
| 43474D - DAMPER, FRONT DRIVE SHAFT, RH | ||||
| 43474-0D290 |
NSP151 NO.2:REFER ILLUST. |
1 | ||
| 43474-0D140 |
NSP151 NO.1:REFER ILLUST. |
1 | ||

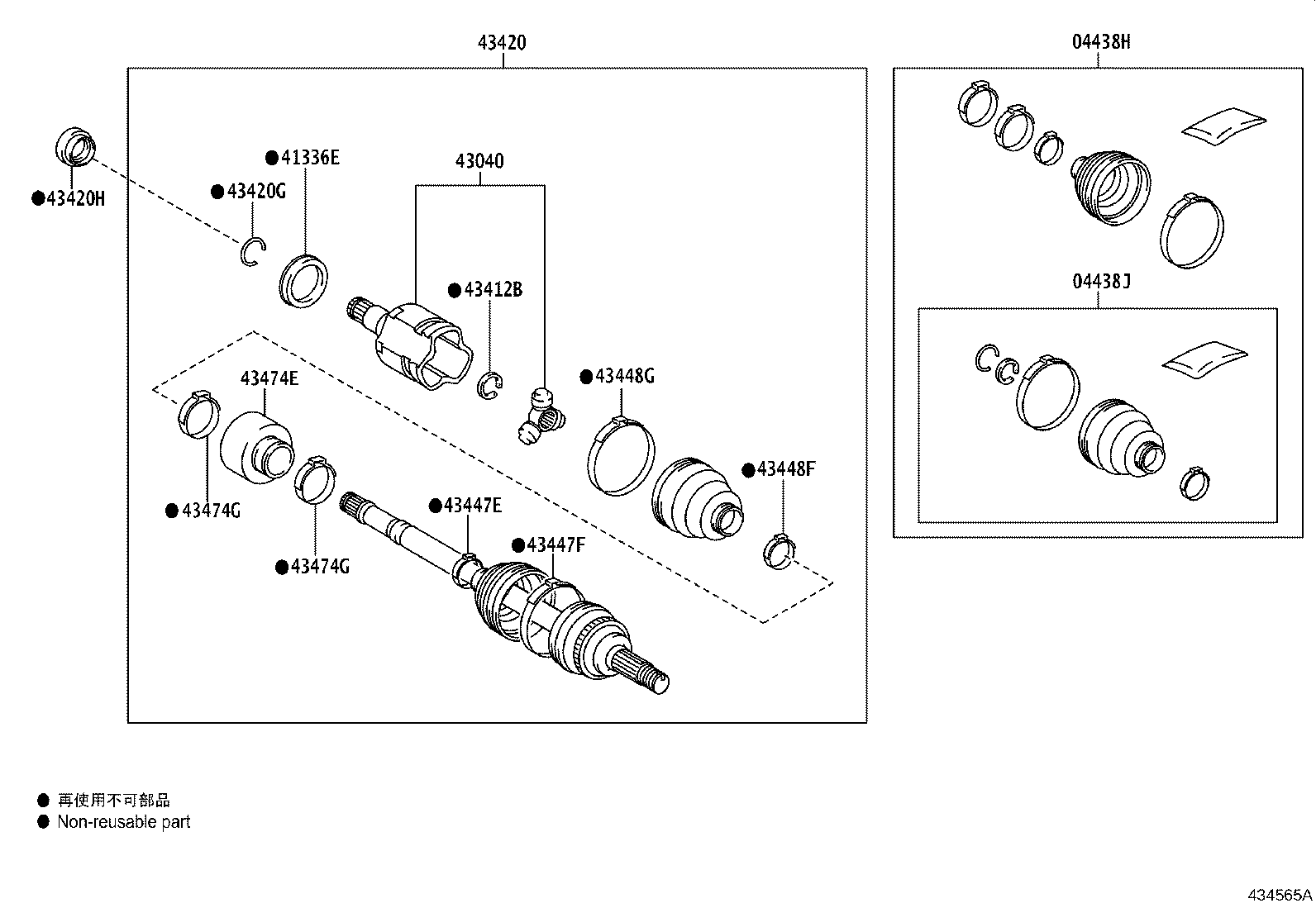

ILLUST NO. 1 OF 2(2012- )
Click highlighted areas on diagram
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH | ||||
| 04428-0D371 |
NSP151..CVT |
1 | ||
| 04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04437-0D250 |
NSP151 |
1 | ||
| 41336E - COVER, FRONT DRIVE SHAFT DUST, LH | ||||
| 41336-0D120 |
NSP151 |
1 | ||
| 43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH | ||||
| 43040-0D030 |
NSP151 |
1 | ||
| 43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) | ||||
| 43425-0D380 |
NSP151 |
1 | ||
| 43420 - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 43420-0D560 |
NSP151..CVT |
1 | ||
| 43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) | ||||
| 43425-0D390 |
NSP151 |
1 | ||
| 43420H - OIL SEAL, FRONT DRIVE SHAFT, LH | ||||
| 90311-34051 |
NSP151..CVT |
1 | ||
| 43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-0DA70 |
NSP151 |
1 | ||
| 43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-0DA80 |
NSP151 |
1 | ||
| 43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 42345-0DA70 |
NSP151 |
1 | ||
| 43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 42345-0DA60 |
NSP151 |
1 | ||
| 43474E - DAMPER, FRONT DRIVE SHAFT, LH | ||||
| 43474-0D300 |
NSP151..CVT |
1 | ||
| 43474G - CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH) | ||||
| 42345-0DB40 |
NSP151..CVT |
2 | ||
| 43474G - CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH) | ||||
| 42345-0DB40 |
NSP151..CVT |
2 | ||
(2101- )
Click highlighted areas on diagram
RH
| Part # | Description | Qty | Price |
|---|
(2101- )
Click highlighted areas on diagram
LH
| Part # | Description | Qty | Price |
|---|
