NSP151R-BEXRKE (2020)

Toyota Vios/Yaris

Production Dec 2020 - Sep 9999
Engine 2NRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2012- )

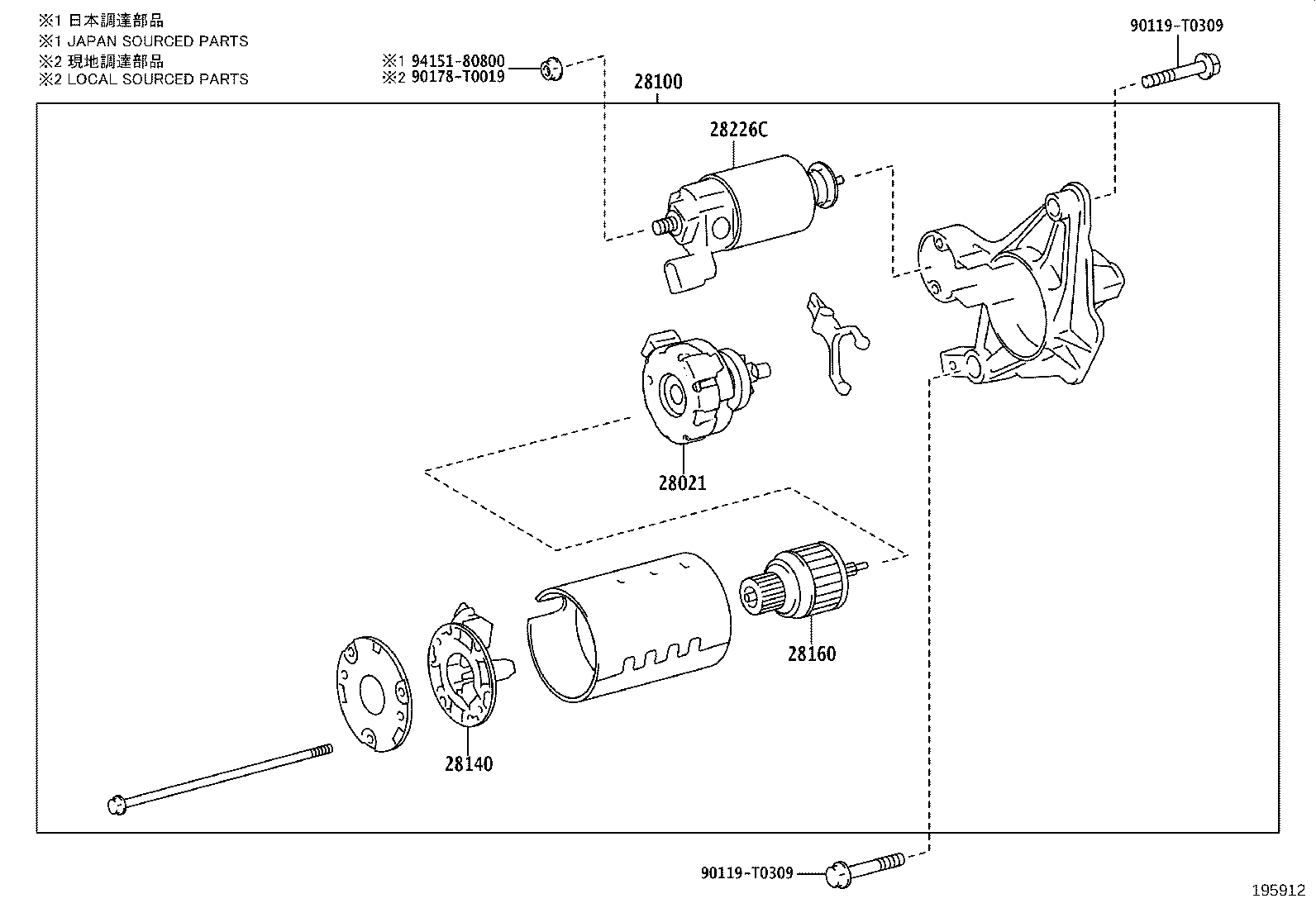

Click highlighted areas on diagram

12V 1.0KW

diagram 28021 28100 28140 28160 28226C 90119T0309 90119T0309 90178T0019
Part # Description Qty Price
28021 - CLUTCH SUB-ASSY, STARTER CENTER BEARING
28021-0Y300

2NRFE..NSP151

 1
28100 - STARTER ASSY
28100-0Y350

2NRFE..NSP151

12V 1.0KW

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-0Y300

2NRFE..NSP151

 1
28160 - ARMATURE ASSY, STARTER
28160-0Y300

2NRFE..NSP151

 1
28226C - STARTER KIT, REPAIR SERVICE, NO.2
28226-0Y340

2NRFE..NSP151

 1
Common parts
90119-T0309
90178-T0019

(2101- )

Click highlighted areas on diagram

12V 1.0KW

diagram 28021 28100 28140 28160 28226C 90119T0309 90119T0309 90178T0019 9415180800
Part # Description Qty Price
Common parts
90119-T0309
90178-T0019
94151-80800
