NSP151R-BEXRKE (2020)
Toyota Vios/Yaris
Production
Dec 2020
-
Sep 9999
Engine
2NRFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(2012- )2NRFE..CVT

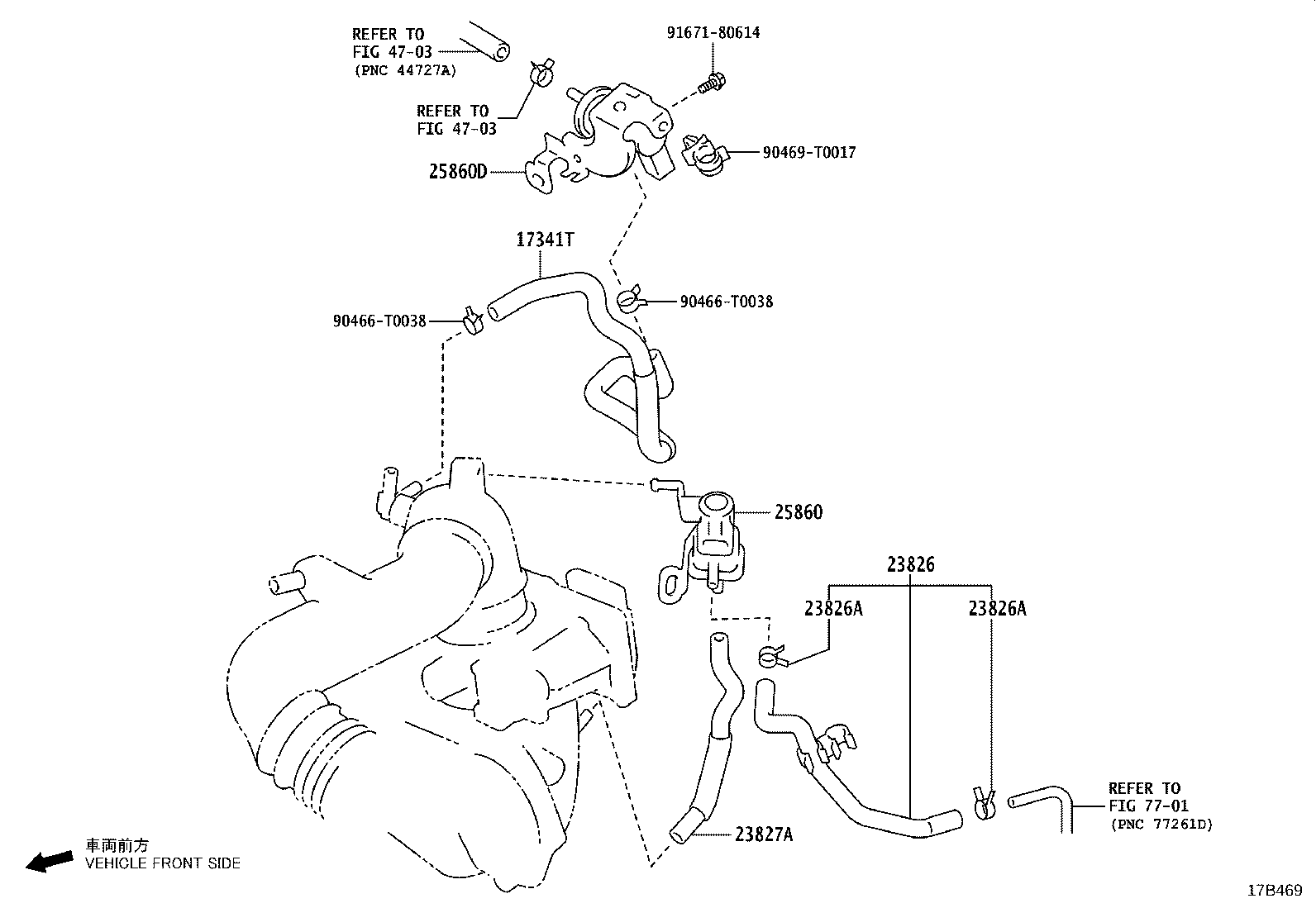

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17341T - HOSE, AIR, NO.1 | ||||
| 17341-0Y070 |
2NRFE..NSP151..CVT |
1 | ||
| 23826 - HOSE, FUEL VAPOR FEED, NO.1 | ||||
| 23826-0Y240 |
2NRFE..NSP151 |
1 | ||
| 23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1) | ||||
| 90466-11003 |
2NRFE..NSP151 |
2 | ||
| 23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1) | ||||
| 90466-11003 |
2NRFE..NSP151 |
2 | ||
| 23827A - HOSE, FUEL VAPOR FEED, NO.2 | ||||
| 23827-0Y280 |
2NRFE..NSP151 |
1 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 25860-0Y090 |
2NRFE..NSP151 |
1 | ||
| 25860D - VALVE ASSY, VACUUM SWITCHING, NO.2 | ||||
| 25860-0Y040 |
2NRFE..NSP151..CVT |
1 | ||
| Common parts | ||||
| 90119-T0136 | ||||
| 90466-T0038 | ||||
| 90469-T0017 | ||||
| Linked diagrams | ||||
| 4703 | ||||
| 7701 | ||||
(2101- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90466-T0038 | ||||
| 90469-T0017 | ||||
| 91671-80614 | ||||
| Linked diagrams | ||||
| 4703 | ||||
| 7701 | ||||
