NSP151R-BEXRKE (2020)

Toyota Vios/Yaris

Production Dec 2020 - Sep 9999
Engine 2NRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2012- )2NRFE..SED

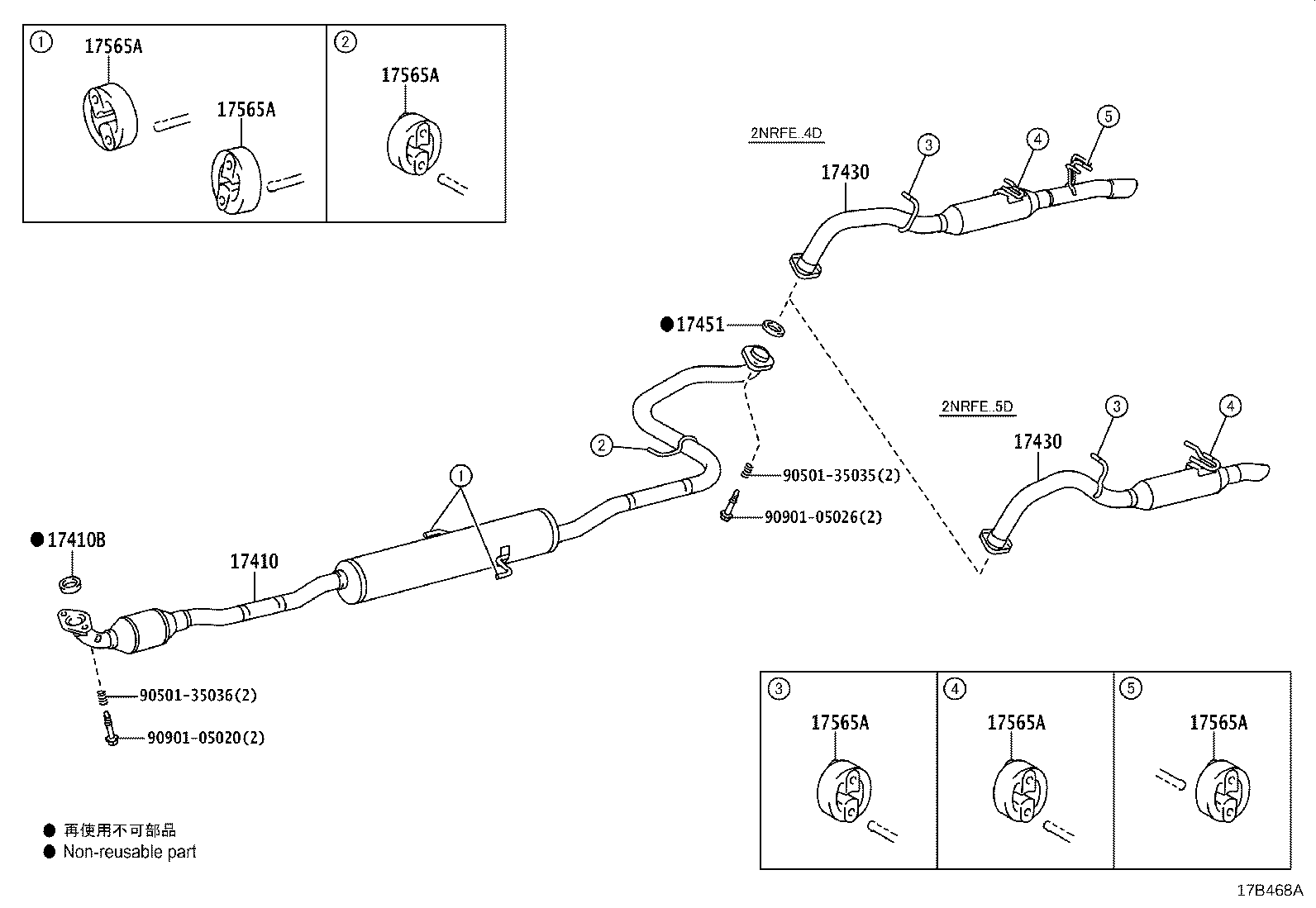

Click highlighted areas on diagram

diagram 17410 17410B 17430 17451 17565A 17565A 17565A 17565A 17565A 17565A 90109T0005 90109T0016 90501T0007 90501T0020
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-0Y532

2NRFE..NSP151

 1
17410B - GASKET, EXHAUST PIPE
17451-0M020

2NRFE..NSP151

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-0Y262

2NRFE..NSP151..SED

 1
17451 - GASKET, EXHAUST PIPE
17451-0M032

2NRFE..NSP151

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0M030

2NRFE..NSP151..SED

 6
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0M030

2NRFE..NSP151..SED

 6
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0M030

2NRFE..NSP151..SED

 6
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0M030

2NRFE..NSP151..SED

 6
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0M030

2NRFE..NSP151..SED

 6
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0M030

2NRFE..NSP151..SED

 6
Common parts
90109-T0005
90109-T0016
90501-T0007
90501-T0020

(2101- )

Click highlighted areas on diagram

diagram 17410 17410B 17430 17430 17451 17565A 17565A 17565A 17565A 17565A 17565A 9050135035 9050135036 9090105020 9090105026
Part # Description Qty Price
Common parts
90501-35035
90501-35036
90901-05020
90901-05026
