NSP151R-BEXRKE (2020)
Toyota Vios/Yaris
Production
Dec 2020
-
Sep 9999
Engine
2NRFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

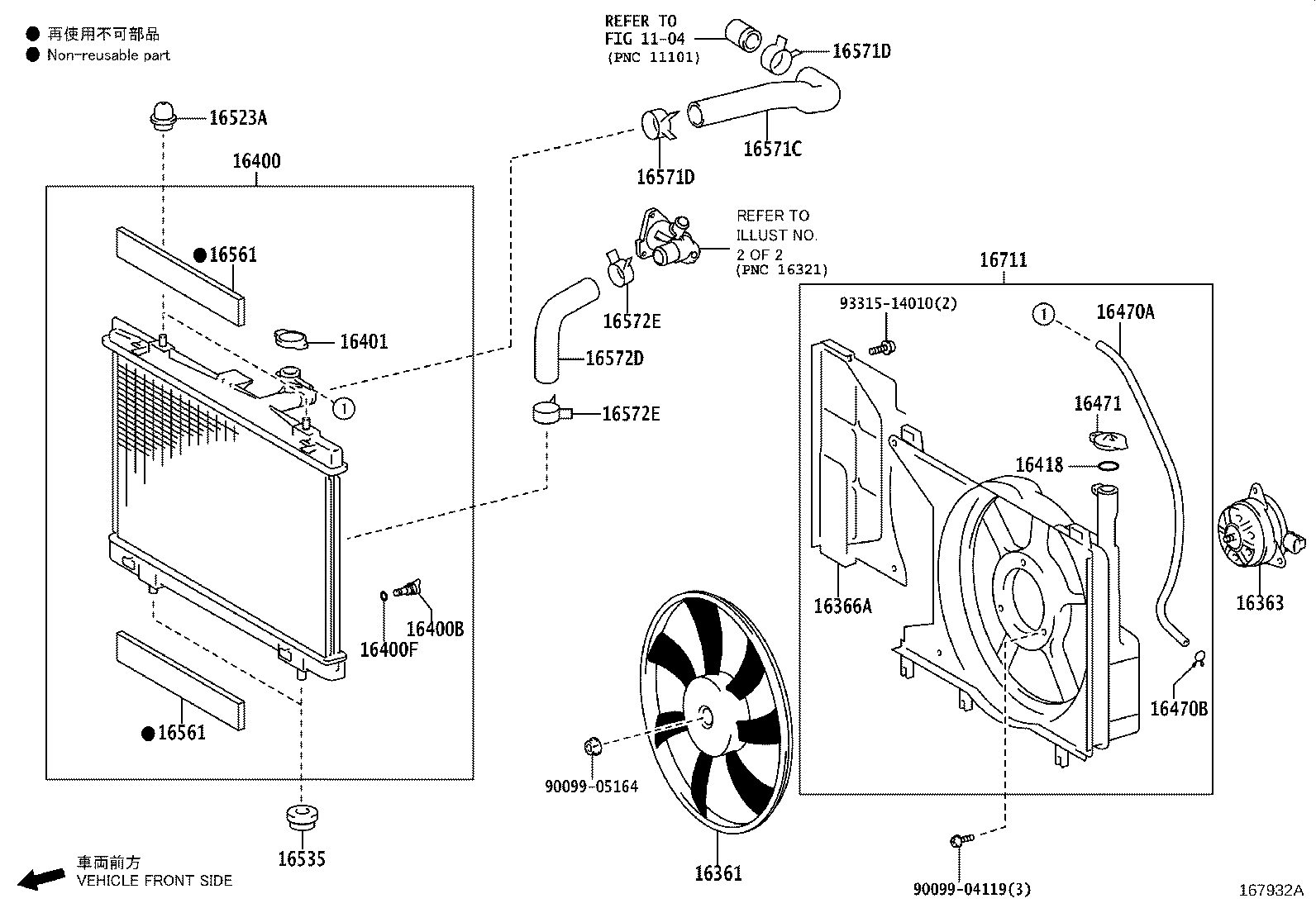

ILLUST NO. 1 OF 2(2012- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361 - FAN | ||||
| 16361-0M110 |
2NRFE..NSP151 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-0Y050 |
2NRFE..NSP151 |
1 | ||
| 16366A - INSULATOR, COOLING FAN MOTOR | ||||
| 16366-0Y250 |
2NRFE..NSP151 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-0Y200 |
2NRFE..NSP151 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-0C180 |
2NRFE..NSP151 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
2NRFE..NSP151 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-0M010 |
2NRFE..NSP151 |
1 | ||
| 16418 - PACKING | ||||
| 16476-0H060 |
2NRFE..NSP151 |
1 | ||
| 16431 - INLET, RADIATOR WATER | ||||
| 16431-0Y190 |
2NRFE..NSP151 |
1 | ||
| 16431A - RING, O(FOR RADIATOR WATER INLET) | ||||
| 16492-0Y200 |
2NRFE..NSP151 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16377-0Y250 |
2NRFE..NSP151 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2NRFE..NSP151 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16376-0Y050 |
2NRFE..NSP151 |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-21030 |
2NRFE..NSP151 |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90480-22025 |
2NRFE..NSP151 |
2 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-0M060 |
2NRFE..NSP151 |
4 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-0M060 |
2NRFE..NSP151 |
4 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-0Y200 |
2NRFE..NSP151..CVT |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 96136-43901 |
2NRFE..NSP151 |
2 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 96136-43901 |
2NRFE..NSP151 |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-0Y190 |
2NRFE..NSP151 |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 96136-43901 |
2NRFE..NSP151 |
2 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 96136-43901 |
2NRFE..NSP151 |
2 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-0Y170 |
2NRFE..NSP151 |
1 | ||
| Common parts | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 93315-14010 | ||||
| 93385-16016 | ||||
| Linked diagrams | ||||
| 1104 | ||||

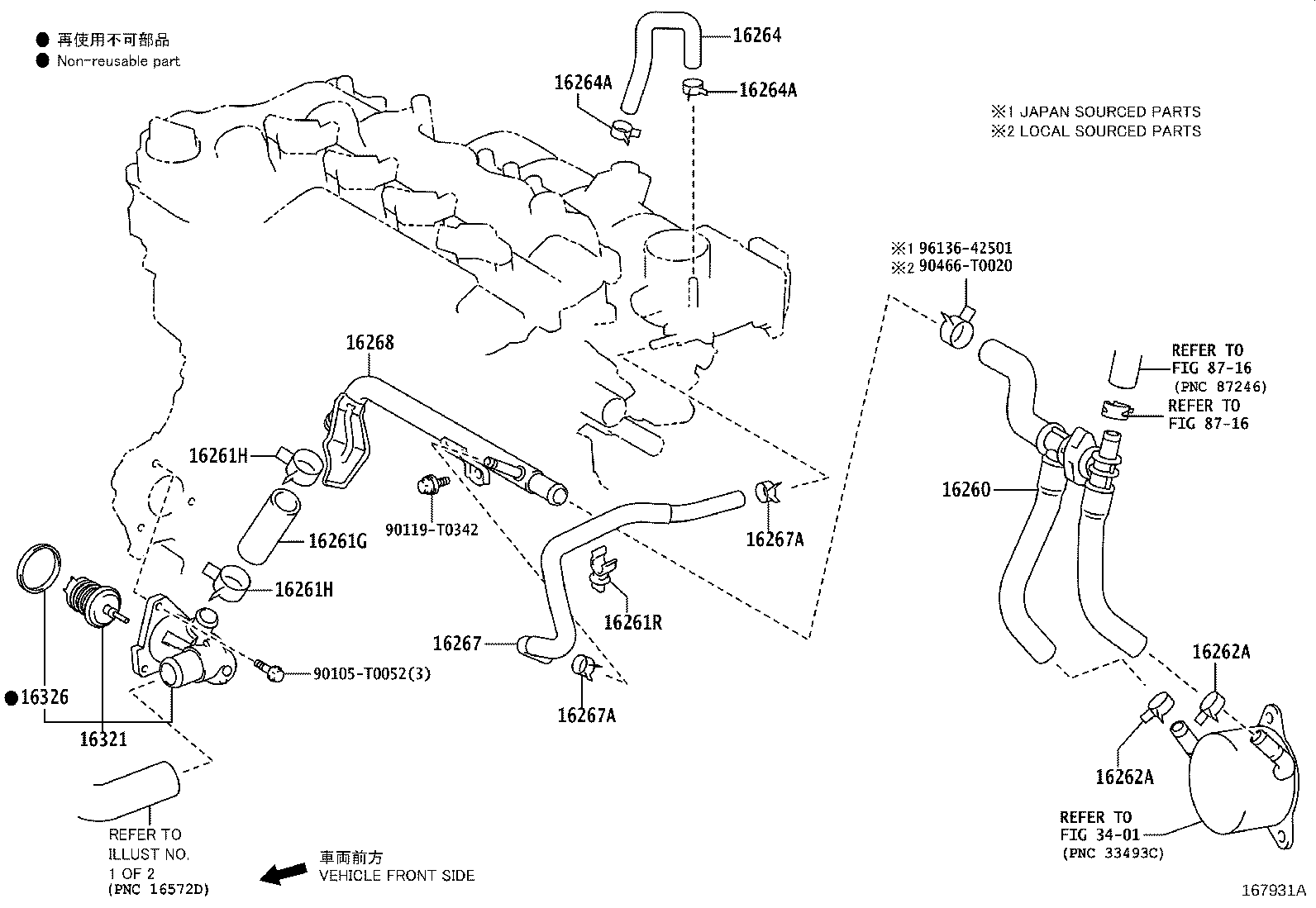

ILLUST NO. 2 OF 2(2012- )2NRFE..CVT
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16260 - HOSE ASSY, WATER BY-PASS | ||||
| 16260-0Y140 |
2NRFE..NSP151..CVT |
1 | ||
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-BZ270 |
2NRFE..NSP151 |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90044-66054 |
2NRFE..NSP151 |
2 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90044-66054 |
2NRFE..NSP151 |
2 | ||
| 16261R - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90469-T0014 |
2NRFE..NSP151 |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-0Y080 |
2NRFE..NSP151 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90466-T0015 |
2NRFE..NSP151 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90466-T0015 |
2NRFE..NSP151 |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-0Y030 |
2NRFE..NSP151 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90466-T0015 |
2NRFE..NSP151 |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90466-T0015 |
2NRFE..NSP151 |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-0Y160 |
2NRFE..NSP151 |
1 | ||
| 16268-0Y130 |
2NRFE..NSP151 |
1 | ||
| 16321 - INLET, WATER | ||||
| 16031-0Y010 |
2NRFE..NSP151 |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-0Y010 |
2NRFE..NSP151 |
1 | ||
| Common parts | ||||
| 90105-T0052 | ||||
| 90119-T0342 | ||||
| 90466-T0020 | ||||
| 96136-52201 | ||||
| Linked diagrams | ||||
| 3401 | ||||
ILLUST NO. 2 OF 2(2101- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-T0052 | ||||
| 90119-T0342 | ||||
| 90466-T0020 | ||||
| 96136-42501 | ||||
| Linked diagrams | ||||
| 3401 | ||||
| 8716 | ||||
ILLUST NO. 1 OF 2(2101- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 93315-14010 | ||||
| Linked diagrams | ||||
| 1104 | ||||
