NSP151R-BEXRKE (2020)
Toyota Vios/Yaris
Production
Dec 2020
-
Sep 9999
Engine
2NRFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(2012- )

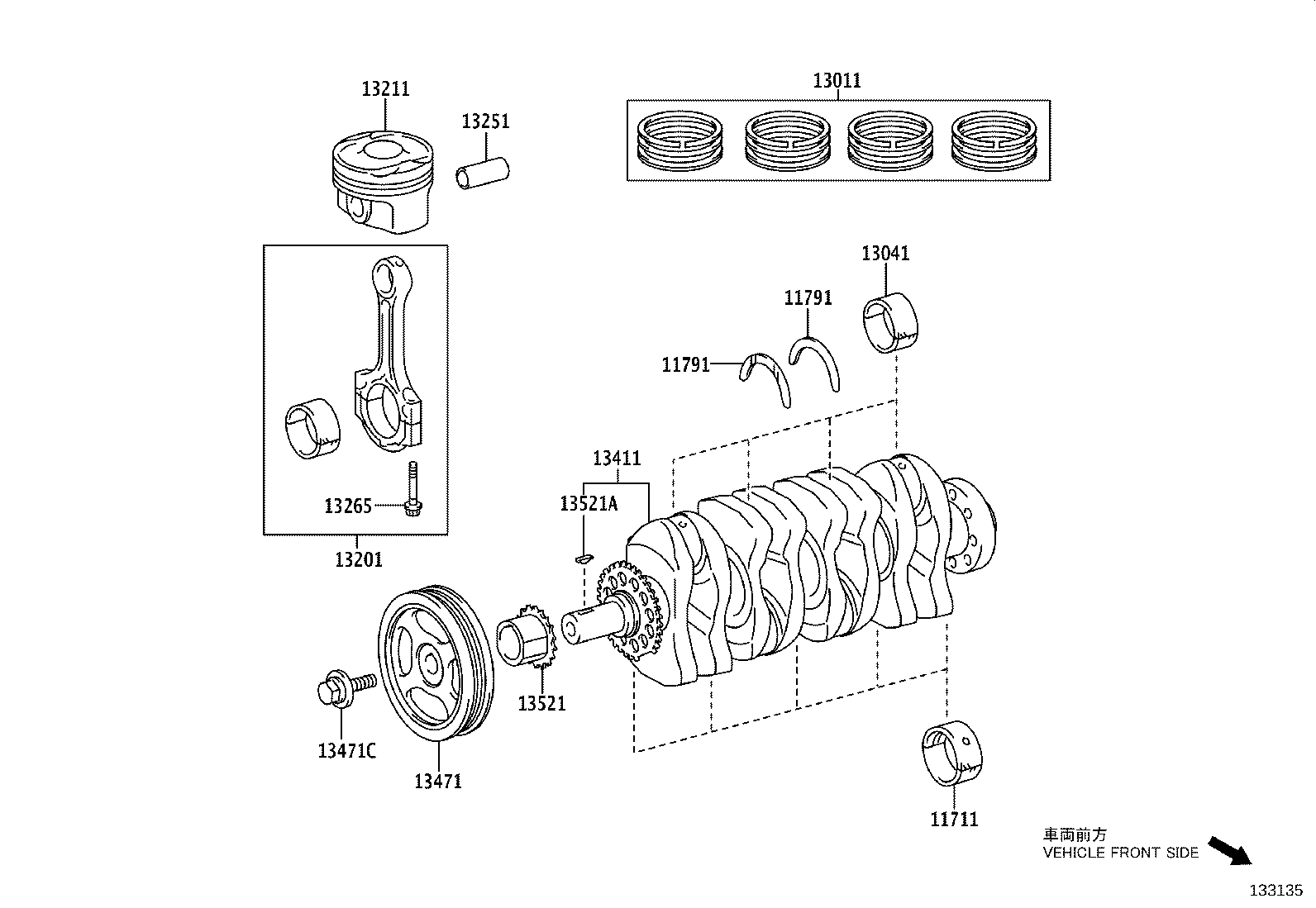

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-0Y03005 |
2NRFE..NSP151 MARK5,REFER REPAIR MANUAL |
5 | ||
| 11701-0Y03004 |
2NRFE..NSP151 MARK4,REFER REPAIR MANUAL |
5 | ||
| 11701-0Y03003 |
2NRFE..NSP151 MARK3,REFER REPAIR MANUAL |
5 | ||
| 11701-0Y03002 |
2NRFE..NSP151 MARK2,REFER REPAIR MANUAL |
5 | ||
| 11791 - WASHER, CRANKSHAFT THRUST, UPPER | ||||
| 11791-B0010 |
2NRFE..NSP151 STD |
2 | ||
| 11791 - WASHER, CRANKSHAFT THRUST, UPPER | ||||
| 11791-B0010 |
2NRFE..NSP151 STD |
2 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-0Y030 |
2NRFE..NSP151 STD |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-0Y04001 |
2NRFE..NSP151 MARK1,REFER REPAIR MANUAL |
4 | ||
| 13041-0Y04002 |
2NRFE..NSP151 MARK2,REFER REPAIR MANUAL |
4 | ||
| 13041-0Y04003 |
2NRFE..NSP151 MARK3,REFER REPAIR MANUAL |
4 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-0Y120 |
2NRFE..NSP151 STD |
4 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-09C20 |
2NRFE..NSP151 |
4 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-0Y020 |
2NRFE..NSP151 |
8 | ||
| 13411 - CRANKSHAFT | ||||
| 13401-BZ100 |
2NRFE..NSP151 |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13470-0Y020 |
2NRFE..NSP151 |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90119-T0444 |
2NRFE..NSP151 |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-BZ040 |
2NRFE..NSP151 |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 90280-04001 |
2NRFE..NSP151 |
1 | ||
(2101- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price |
|---|
