NSP151R-BEXRKE (2020)
Toyota Vios/Yaris
Production
Dec 2020
-
Sep 9999
Engine
2NRFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(2012- )2NRFE..CVT

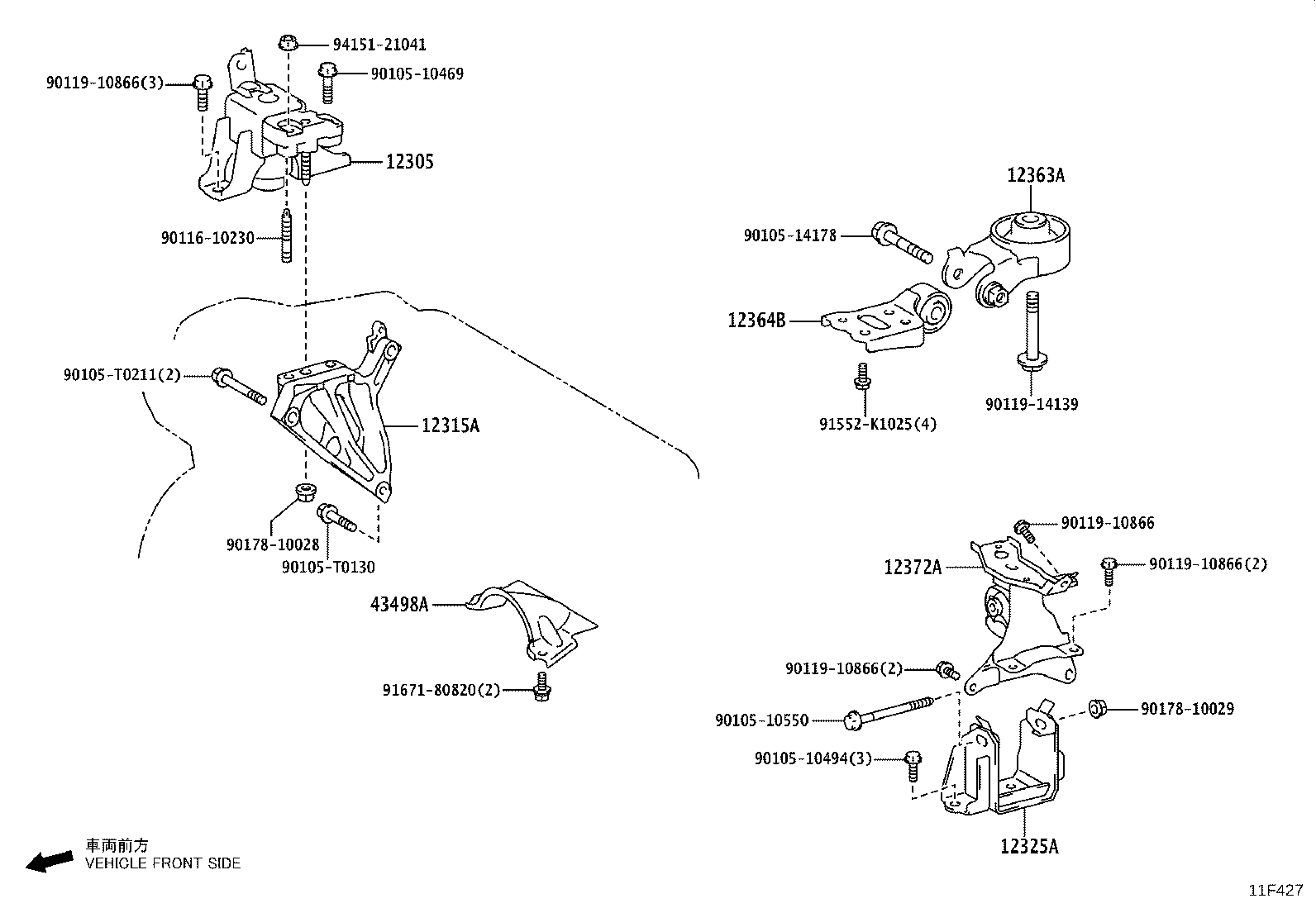

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH | ||||
| 12305-0Y110 |
2NRFE..NSP151 |
1 | ||
| 12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-0Y010 |
2NRFE..NSP151 |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-0Y410 |
2NRFE..NSP151..CVT |
1 | ||
| 12363A - ROD, ENGINE MOVING CONTROL | ||||
| 12363-0Y200 |
2NRFE..NSP151..CVT |
1 | ||
| 12364B - ROD, ENGINE MOVING CONTROL, NO.2 | ||||
| 12364-0Y110 |
2NRFE..NSP151..CVT |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-0Y350 |
2NRFE..NSP151..CVT |
1 | ||
| 43498A - INSULATOR, DRIVE SHAFT HEAT, NO.1 | ||||
| 43498-52130 |
NSP151 |
1 | ||
| Common parts | ||||
| 90105-T0130 | ||||
| 90105-T0174 | ||||
| 90105-T0181 | ||||
| 90105-T0182 | ||||
| 90105-T0185 | ||||
| 90105-T0189 | ||||
| 90105-T0211 | ||||
| 90116-T0014 | ||||
| 90119-10866 | ||||
| 90119-T0342 | ||||
| 90119-T0355 | ||||
| 90178-T0015 | ||||
| 90178-T0057 | ||||
| 90178-T0058 | ||||
(2101- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-10469 | ||||
| 90105-10494 | ||||
| 90105-10550 | ||||
| 90105-14178 | ||||
| 90105-T0130 | ||||
| 90105-T0211 | ||||
| 90116-10230 | ||||
| 90119-10866 | ||||
| 90119-14139 | ||||
| 90178-10028 | ||||
| 90178-10029 | ||||
| 91552-K1025 | ||||
| 91671-80820 | ||||
| 94151-21041 | ||||
