NSP151R-BEXDKE (2020)
Toyota Vios/Yaris
Production
Dec 2020
-
Sep 9999
Engine
2NRFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

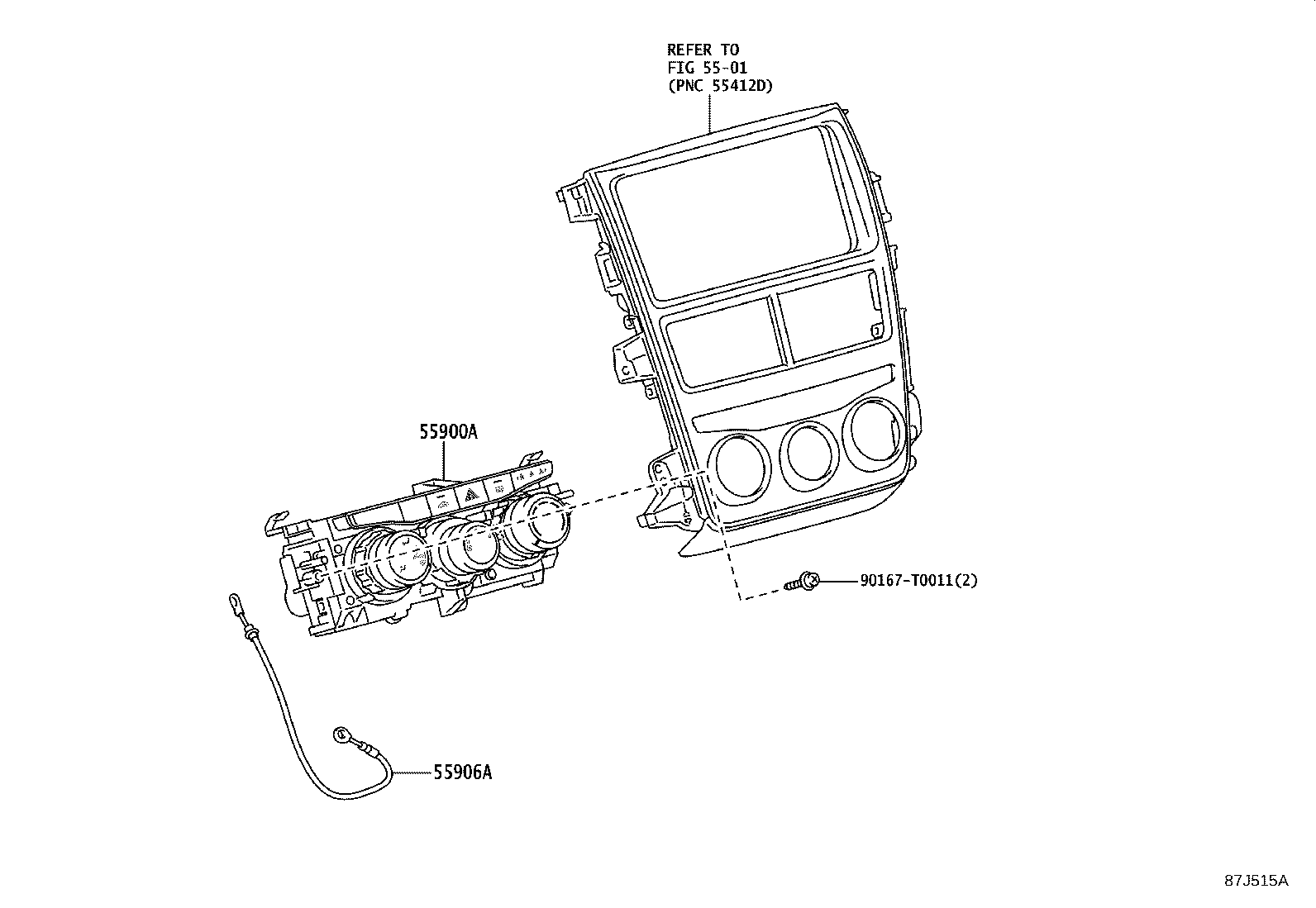

ILLUST NO. 1 OF 3(2012- )
MANUAL HEATER CONTROL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90167-T0011 | None epc.PartDetail.None | |||
| Linked diagrams | ||||
| 5501 | ||||
ILLUST NO. 1 OF 3(2012- )

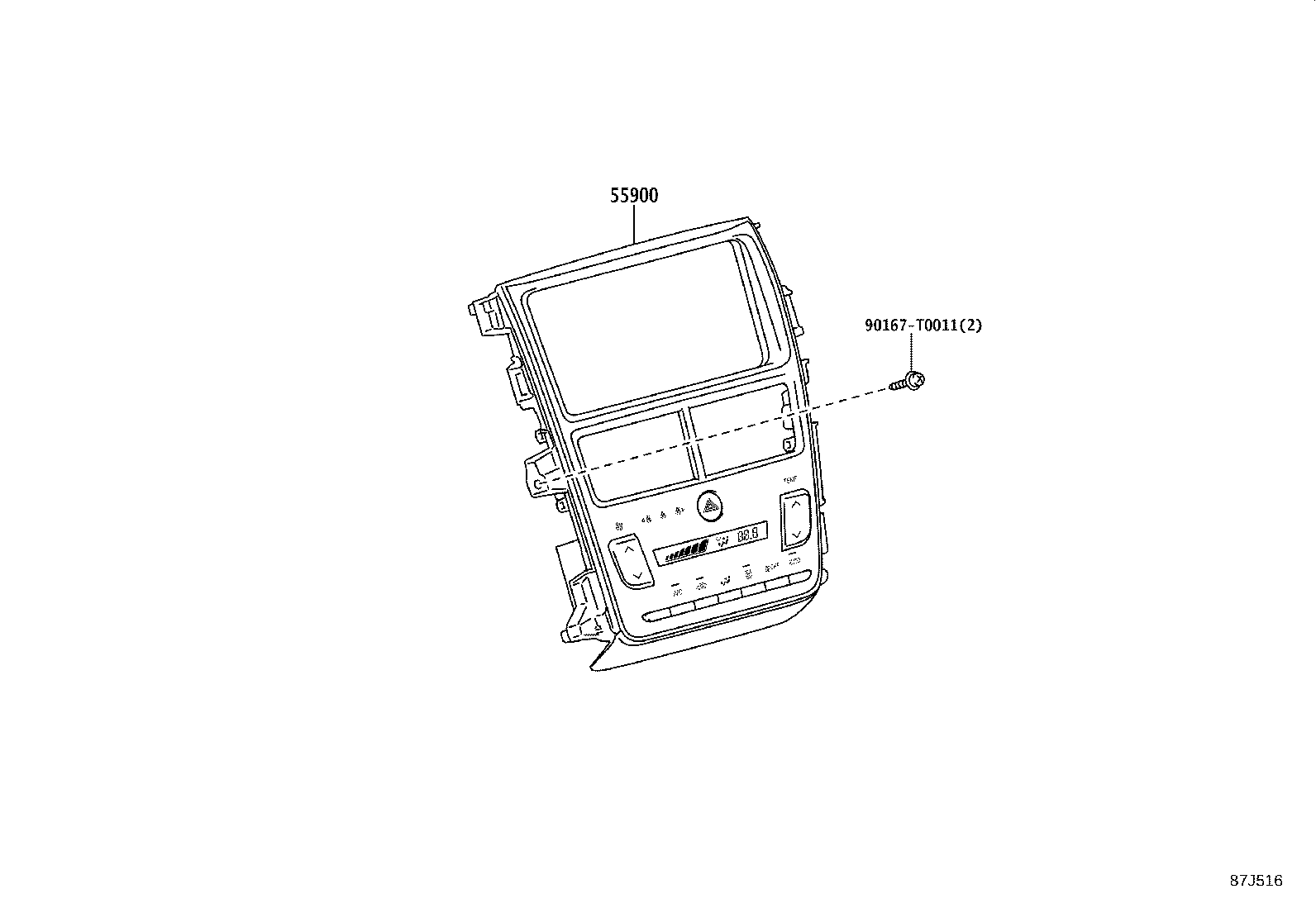

AUTO HEATER CONTROL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-0DJ90 |
NSP151..G;NSP151..SED..(D,R) |
1 | ||
| Common parts | ||||
| 90167-T0011 | None epc.PartDetail.None | |||

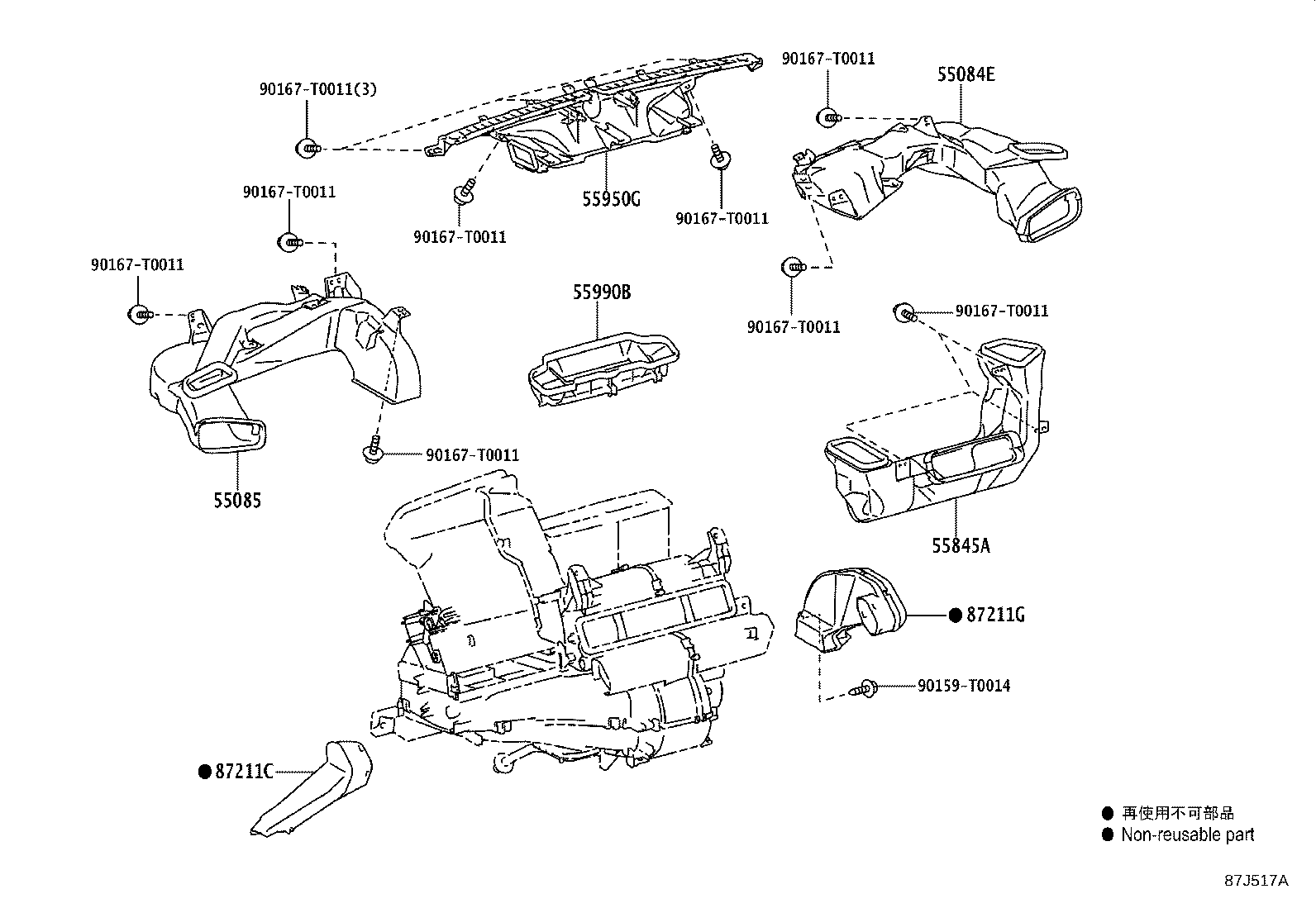

ILLUST NO. 2 OF 3(2012- )
AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1 | ||||
| 55084-0D210 |
NSP151 |
1 | ||
| 55085 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.2 | ||||
| 55085-0D160 |
NSP151 |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55870-0D040 |
NSP151 |
1 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-0D280 |
NSP151 |
1 | ||
| 55990B - NOZZLE ASSY, DEFROSTER, LOWER | ||||
| 55990-0D040 |
NSP151 |
1 | ||
| 87211C - DUCT, AIR, NO.4 | ||||
| 87211-0D380 |
NSP151 |
1 | ||
| 87211G - DUCT, AIR, NO.5 | ||||
| 87211-0D620 |
NSP151 |
1 | ||
| Common parts | ||||
| 90159-T0014 | None epc.PartDetail.None | |||
| 90167-T0011 | None epc.PartDetail.None | |||

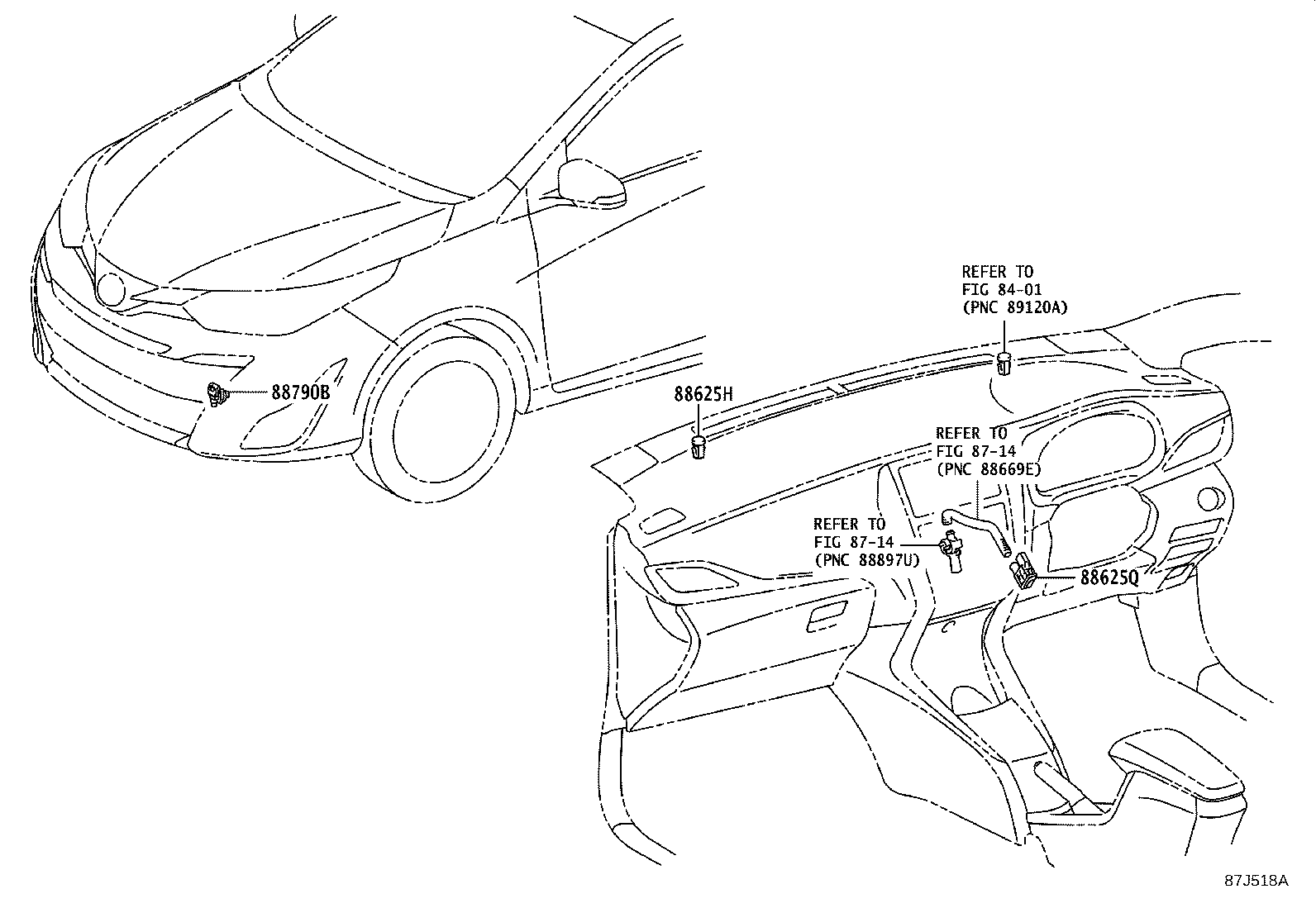

ILLUST NO. 3 OF 3(2012- )
SENSOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88625H - THERMISTOR, COOLER (SOLAR SENSOR) | ||||
| 88625-52130 |
NSP151..G;NSP151..SED..(D,R) |
1 | ||
| 88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR) | ||||
| 88625-47021 |
NSP151..G;NSP151..SED..(D,R) |
1 | ||
| 88790B - THERMISTOR ASSY | ||||
| 88790-28100 |
NSP151 |
1 | ||
| Linked diagrams | ||||
| 8401 | ||||
| 8714 | ||||
