NSP151R-BEXDKE (2020)
Toyota Vios/Yaris
(2012- )SED..D
TAIL & STOP LAMP = BULB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81496 - GUIDE, REAR COMBINATION LAMP | ||||
| 81497-0D070 |
NSP151 |
2 | ||
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-0DE61 |
NSP151..SED..D |
1 | ||
| 81550-0DE51 |
NSP151..SED..(G,R) |
1 | ||
| 81550H - BULB, TAIL & STOP LAMP | ||||
| 90981-13044 |
NSP151..D 12V 21/5W |
2 | ||
| 81550L - BULB, REAR TURN SIGNAL LAMP | ||||
| 90981-15021 |
NSP151 12V 21W,AMBER |
2 | ||
| 81550N - BULB, BACK UP LAMP | ||||
| 90981-11059 |
NSP151 12V 16W |
2 | ||
| 81551D - LENS & BODY, REAR COMBINATION LAMP, RH | ||||
| 81551-0DE60 |
NSP151..SED..D |
1 | ||
| 81551-0DE50 |
NSP151..SED..(G,R) |
1 | ||
| 81552A - GASKET, REAR COMBINATION LAMP, RH | ||||
| 81554-0DE50 |
NSP151..SED |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-0DE50 |
NSP151..SED..(G,R) |
1 | ||
| 81555-0DE60 |
NSP151..SED..D |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-0DE51 |
NSP151..SED..(G,R) |
1 | ||
| 81560-0DE61 |
NSP151..SED..D |
1 | ||
| 81561D - LENS & BODY, REAR COMBINATION LAMP, LH | ||||
| 81561-0DE60 |
NSP151..SED..D |
1 | ||
| 81561-0DE50 |
NSP151..SED..(G,R) |
1 | ||
| 81562A - GASKET, REAR COMBINATION LAMP, LH | ||||
| 81564-0DE50 |
NSP151..SED |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81555-0DE50 |
NSP151..SED..(G,R) |
1 | ||
| 81555-0DE60 |
NSP151..SED..D |
1 | ||
| 81580D - LAMP ASSY, REAR, RH | ||||
| 81580-0D650 |
NSP151..SED..(G,R) |
1 | ||
| 81580-0D660 |
NSP151..SED..D |
1 | ||
| 81581C - LENS AND BODY, REAR LAMP, RH | ||||
| 81581-0D650 |
NSP151..SED..(G,R) |
1 | ||
| 81581-0D660 |
NSP151..SED..D |
1 | ||
| 81584A - GASKET, REAR LAMP RH | ||||
| 81582-0D650 |
NSP151..SED |
1 | ||
| 81585C - SOCKET & WIRE, REAR LAMP, RH | ||||
| 81585-0D650 |
NSP151..SED..(G,R) |
1 | ||
| 81585-0D660 |
NSP151..SED..D |
1 | ||
| 81590A - LAMP ASSY, REAR, LH | ||||
| 81590-0D660 |
NSP151..SED..D |
1 | ||
| 81590-0D650 |
NSP151..SED..(G,R) |
1 | ||
| 81591B - LENS AND BODY, REAR LAMP, LH | ||||
| 81591-0D650 |
NSP151..SED..(G,R) |
1 | ||
| 81591-0D660 |
NSP151..SED..D |
1 | ||
| 81594A - GASKET, REAR LAMP LH | ||||
| 81592-0D650 |
NSP151..SED |
1 | ||
| 81595 - SOCKET & WIRE, REAR LAMP, LH | ||||
| 81585-0D650 |
NSP151..SED..(G,R) |
1 | ||
| 81585-0D660 |
NSP151..SED..D |
1 | ||
| 81955 - RETAINER, REAR COMBINATION LAMP, RH | ||||
| 52562-0D130 |
NSP151..SED |
1 | ||
| 81956 - RETAINER, REAR COMBINATION LAMP, LH | ||||
| 52563-0D130 |
NSP151..SED |
1 | ||
| Common parts | ||||
| 90159-T0036 | ||||
| 90176-05023 | ||||
| 90178-T0049 | ||||
| 90189-T0010 | ||||
(2012- )SED..G,R
TAIL & STOP LAMP = LED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81496 - GUIDE, REAR COMBINATION LAMP | ||||
| 81497-0D070 |
NSP151 |
2 | ||
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-0DE61 |
NSP151..SED..D |
1 | ||
| 81550-0DE51 |
NSP151..SED..(G,R) |
1 | ||
| 81550L - BULB, REAR TURN SIGNAL LAMP | ||||
| 90981-15021 |
NSP151 12V 21W,AMBER |
2 | ||
| 81550N - BULB, BACK UP LAMP | ||||
| 90981-11059 |
NSP151 12V 16W |
2 | ||
| 81551D - LENS & BODY, REAR COMBINATION LAMP, RH | ||||
| 81551-0DE60 |
NSP151..SED..D |
1 | ||
| 81551-0DE50 |
NSP151..SED..(G,R) |
1 | ||
| 81552A - GASKET, REAR COMBINATION LAMP, RH | ||||
| 81554-0DE50 |
NSP151..SED |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-0DE50 |
NSP151..SED..(G,R) |
1 | ||
| 81555-0DE60 |
NSP151..SED..D |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-0DE51 |
NSP151..SED..(G,R) |
1 | ||
| 81560-0DE61 |
NSP151..SED..D |
1 | ||
| 81561D - LENS & BODY, REAR COMBINATION LAMP, LH | ||||
| 81561-0DE60 |
NSP151..SED..D |
1 | ||
| 81561-0DE50 |
NSP151..SED..(G,R) |
1 | ||
| 81562A - GASKET, REAR COMBINATION LAMP, LH | ||||
| 81564-0DE50 |
NSP151..SED |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81555-0DE50 |
NSP151..SED..(G,R) |
1 | ||
| 81555-0DE60 |
NSP151..SED..D |
1 | ||
| 81580D - LAMP ASSY, REAR, RH | ||||
| 81580-0D650 |
NSP151..SED..(G,R) |
1 | ||
| 81580-0D660 |
NSP151..SED..D |
1 | ||
| 81581C - LENS AND BODY, REAR LAMP, RH | ||||
| 81581-0D650 |
NSP151..SED..(G,R) |
1 | ||
| 81581-0D660 |
NSP151..SED..D |
1 | ||
| 81584A - GASKET, REAR LAMP RH | ||||
| 81582-0D650 |
NSP151..SED |
1 | ||
| 81585C - SOCKET & WIRE, REAR LAMP, RH | ||||
| 81585-0D650 |
NSP151..SED..(G,R) |
1 | ||
| 81585-0D660 |
NSP151..SED..D |
1 | ||
| 81590A - LAMP ASSY, REAR, LH | ||||
| 81590-0D660 |
NSP151..SED..D |
1 | ||
| 81590-0D650 |
NSP151..SED..(G,R) |
1 | ||
| 81591B - LENS AND BODY, REAR LAMP, LH | ||||
| 81591-0D650 |
NSP151..SED..(G,R) |
1 | ||
| 81591-0D660 |
NSP151..SED..D |
1 | ||
| 81594A - GASKET, REAR LAMP LH | ||||
| 81592-0D650 |
NSP151..SED |
1 | ||
| 81595 - SOCKET & WIRE, REAR LAMP, LH | ||||
| 81585-0D650 |
NSP151..SED..(G,R) |
1 | ||
| 81585-0D660 |
NSP151..SED..D |
1 | ||
| 81955 - RETAINER, REAR COMBINATION LAMP, RH | ||||
| 52562-0D130 |
NSP151..SED |
1 | ||
| 81956 - RETAINER, REAR COMBINATION LAMP, LH | ||||
| 52563-0D130 |
NSP151..SED |
1 | ||
| Common parts | ||||
| 90159-T0036 | ||||
| 90176-05023 | ||||
| 90178-T0049 | ||||
| 90189-T0010 | ||||

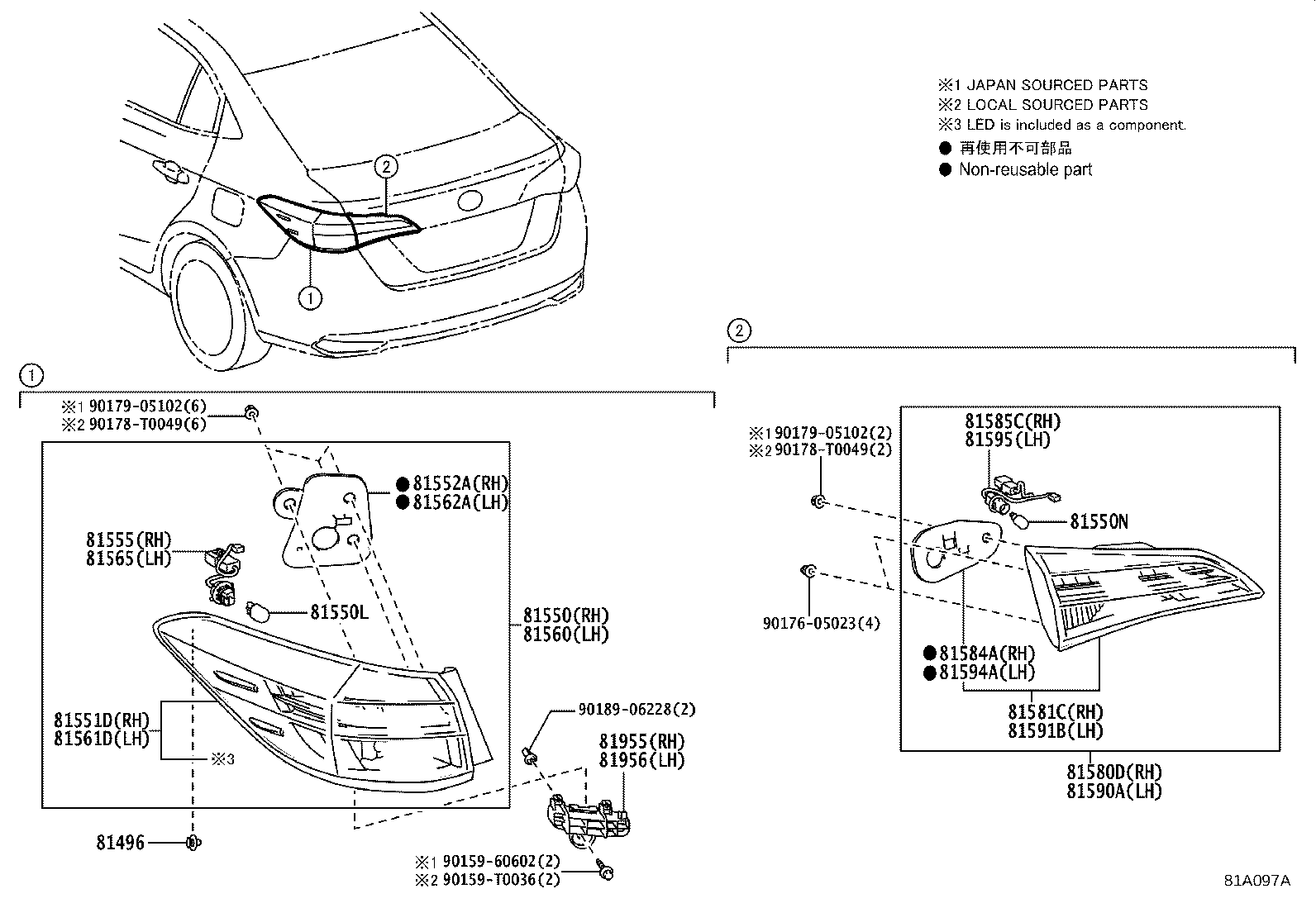

(2101- )4D..V
LED TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-60602 | ||||
| 90159-T0036 | ||||
| 90176-05023 | ||||
| 90178-T0049 | ||||
| 90179-05102 | ||||
| 90189-06228 | ||||

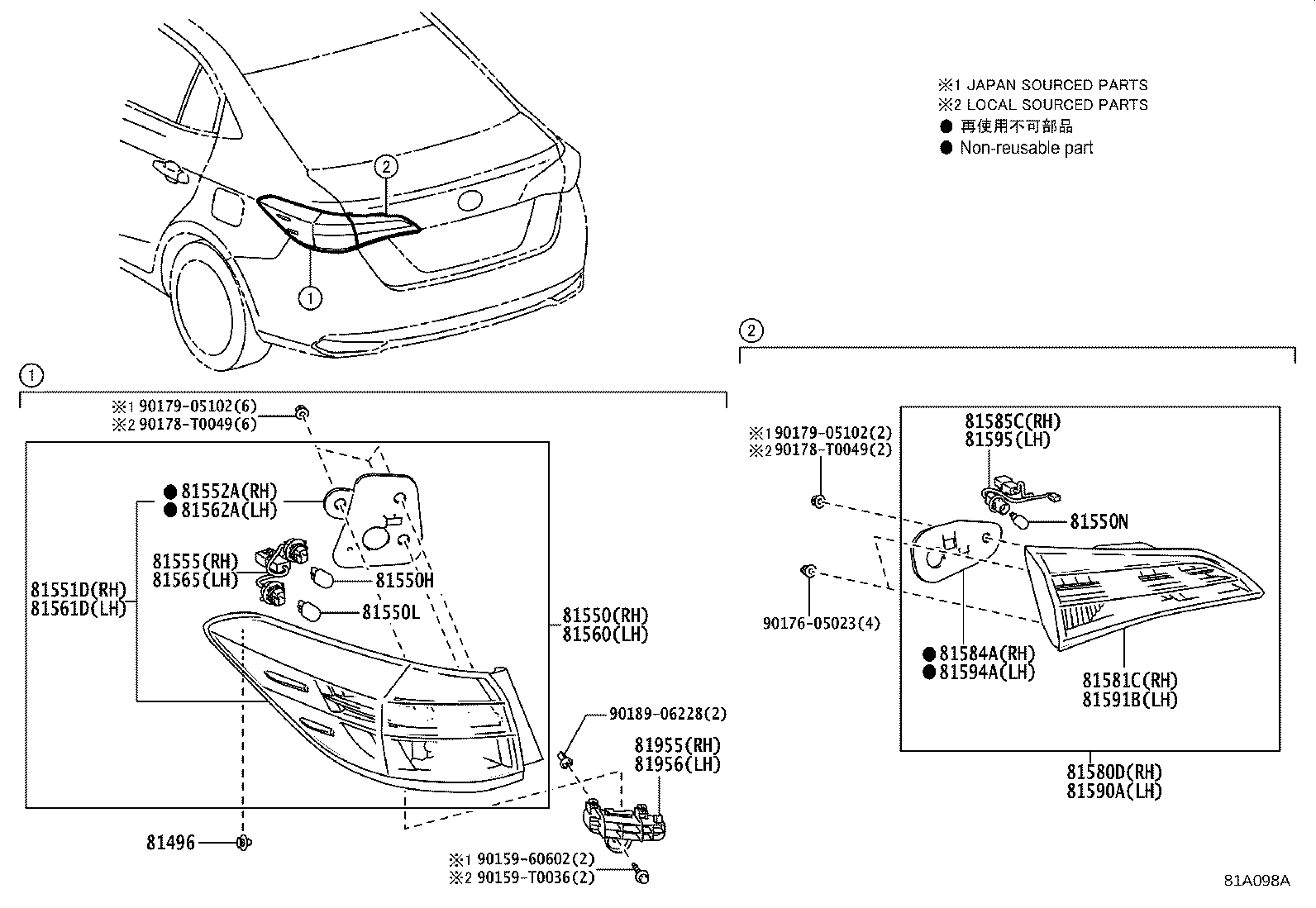

(2101- )4D..D,R
BULB TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-60602 | ||||
| 90159-T0036 | ||||
| 90176-05023 | ||||
| 90178-T0049 | ||||
| 90179-05102 | ||||
| 90189-06228 | ||||
