NSP151R-BEXDKE (2020)
Toyota Vios/Yaris
Production
Dec 2020
-
Sep 9999
Engine
2NRFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(2012- )SED

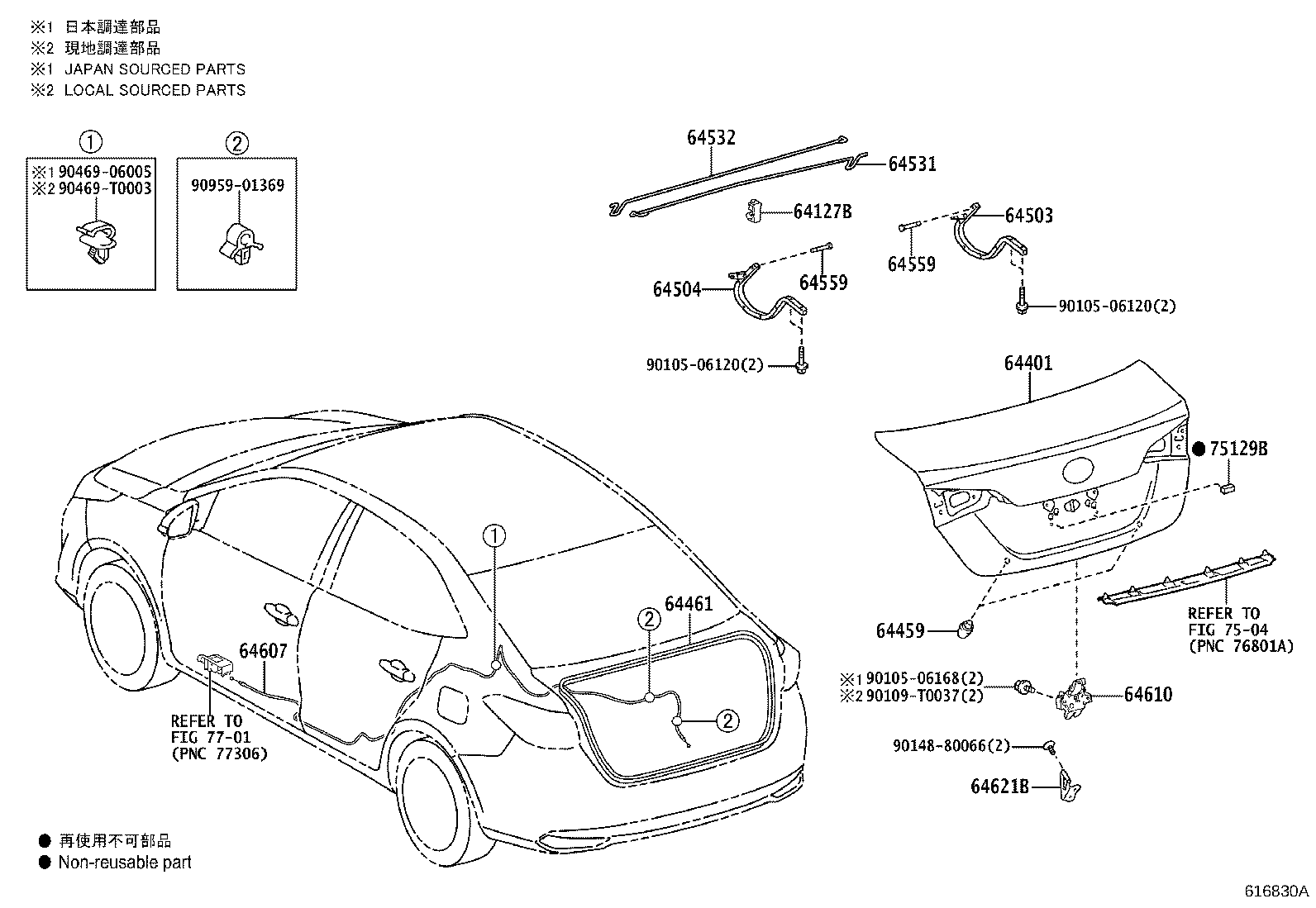

Click highlighted areas on diagram
LUGGAGE COMPARTMENT DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64127B - SUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR | ||||
| 64127-0D060 |
NSP151..SED |
1 | ||
| 64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64401-0D370 |
NSP151..SED |
1 | ||
| 64426 - PLUG, LUGGAGE COMPARTMENT DOOR, LH | ||||
| 64426-0D010 |
NSP151..SED |
1 | ||
| 64459 - CUSHION, LUGGAGE COMPARTMENT DOOR | ||||
| 90541-09069 |
NSP151..SED |
2 | ||
| 64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR | ||||
| 64461-0D190 |
NSP151..SED |
1 | ||
| 64503 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH | ||||
| 64503-0D090 |
NSP151..SED |
1 | ||
| 64504 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH | ||||
| 64503-0D090 |
NSP151..SED |
1 | ||
| 64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH | ||||
| 64531-0D300 |
NSP151..SED |
1 | ||
| 64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH | ||||
| 64532-0D290 |
NSP151..SED |
1 | ||
| 64559 - PIN, LUGGAGE DOOR HINGE | ||||
| 64559-12040 |
NSP151..SED |
2 | ||
| 64559 - PIN, LUGGAGE DOOR HINGE | ||||
| 64559-12040 |
NSP151..SED |
2 | ||
| 64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64600-0D040 |
NSP151..SED |
1 | ||
| 64621B - STRIKER, LUGGAGE COMPARTMENT DOOR LOCK | ||||
| 64621-06080 |
NSP151..SED |
1 | ||
| 75129B - CUSHION, REAR LICENCE PLATE | ||||
| 75129-0D030 |
NSP151..SED |
2 | ||
| Common parts | ||||
| 90109-T0021 | ||||
| 90109-T0037 | ||||
| 90148-T0015 | ||||
| Linked diagrams | ||||
| 7504 | ||||
(2012- )SED
Click highlighted areas on diagram
LUGGAGE DOOR LOCK CONTROL CABLE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL | ||||
| 64607-0D390 |
NSP151..SED |
1 | ||
| Common parts | ||||
| 82711-0K090 | ||||
| 90469-06005 | ||||
| 90469-T0001 | ||||
| 90959-T1001 | ||||
| Linked diagrams | ||||
| 7701 | ||||
(2101- )4D
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-06120 | ||||
| 90105-06168 | ||||
| 90109-T0037 | ||||
| 90148-80066 | ||||
| 90469-06005 | ||||
| 90469-T0003 | ||||
| 90959-01369 | ||||
| Linked diagrams | ||||
| 7504 | ||||
| 7701 | ||||
