NSP151R-BEMDKE (2020)
Toyota Vios/Yaris
Production
Dec 2020
-
Sep 9999
Engine
2NRFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(2012- )

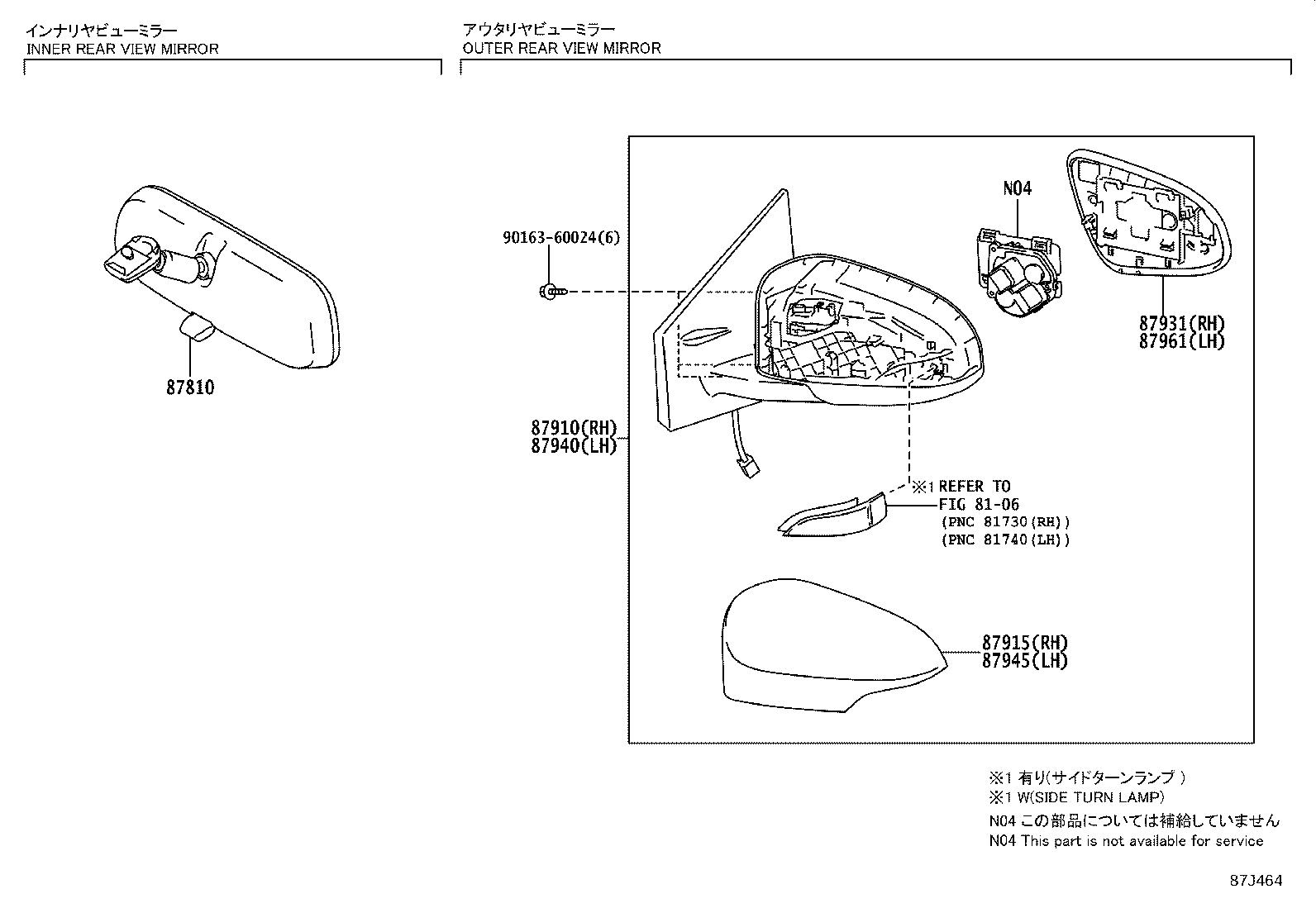

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-02260 |
NSP151..R MLM PACKAGE&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE |
1 | ||
| 87810-0D090 |
NSP151..D,R |
1 | ||
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-02260 |
NSP151..R MLM PACKAGE&ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE |
1 | ||
| 87810-0D090 |
NSP151..D,R |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-0D830 |
NSP151..SED..D NO PAINT REQ. |
1 | ||
| 87910-0D840 |
NSP151..HB;NSP151..SED..(G,R) NO PAINT REQ. |
1 | ||
| 87915 - COVER, OUTER MIRROR, RH | ||||
| 87915-0D916 |
NSP151..SED..D PAINT REQ. |
1 | ||
| 87915-0D917 |
NSP151..HB;NSP151..SED..(G,R) PAINT REQ. |
1 | ||
| 87931 - OUTER MIRROR, RH | ||||
| 87931-0D840 |
NSP151 |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-0D830 |
NSP151..SED..D NO PAINT REQ. |
1 | ||
| 87940-0D840 |
NSP151..HB;NSP151..SED..(G,R) NO PAINT REQ. |
1 | ||
| 87945 - COVER, OUTER MIRROR, LH | ||||
| 87945-0D916 |
NSP151..SED..D PAINT REQ. |
1 | ||
| 87945-0D917 |
NSP151..HB;NSP151..SED..(G,R) PAINT REQ. |
1 | ||
| 87961 - MIRROR OUTER, LH | ||||
| 87961-0D840 |
NSP151 |
1 | ||
| Common parts | ||||
| 90163-T0002 | ||||
| Linked diagrams | ||||
| 8106 | ||||
(2101- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90163-60024 | ||||
| Linked diagrams | ||||
| 8106 | ||||
