NSP151R-BEMDKE (2020)
Toyota Vios/Yaris
Production
Dec 2020
-
Sep 9999
Engine
2NRFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

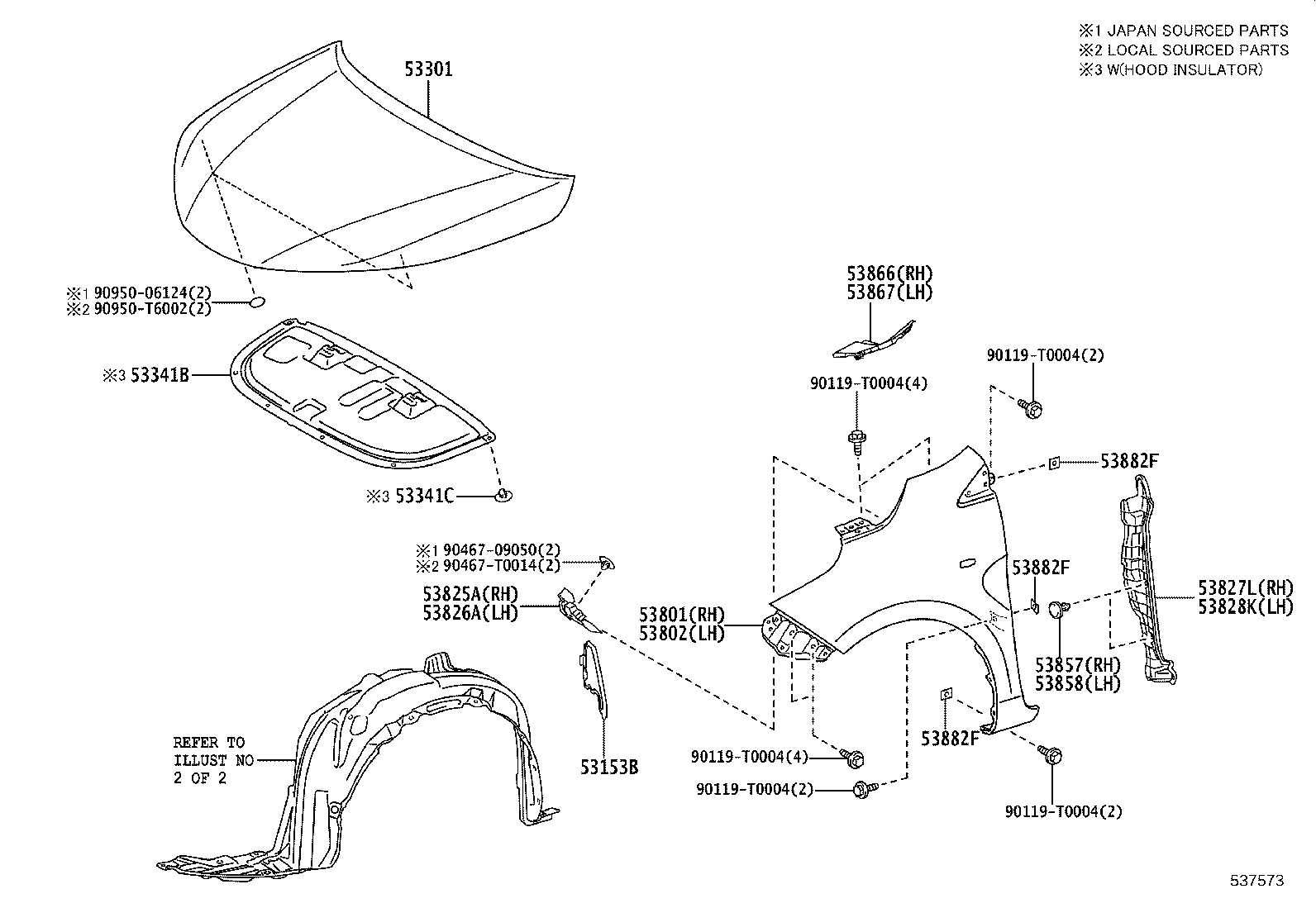

ILLUST NO. 1 OF 2(2012- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53153B - GUIDE, FRONT SIDE AIR | ||||
| 53153-0D040 |
NSP151 |
2 | ||
| 53301 - HOOD SUB-ASSY | ||||
| 53301-0D300 |
NSP151 |
1 | ||
| 53341B - INSULATOR, HOOD | ||||
| 53341-0D330 |
NSP151 |
1 | ||
| 53341C - CLIP(FOR HOOD INSULATOR) | ||||
| 90467-T0014 |
NSP151 |
6 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53801-0D160 |
NSP151..HB;NSP151..SED..(G,R) |
1 | ||
| 53801-0D150 |
NSP151..SED..D |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53802-0D160 |
NSP151..HB;NSP151..SED..(G,R) |
1 | ||
| 53802-0D150 |
NSP151..SED..D |
1 | ||
| 53825A - PROTECTOR, FRONT FENDER, UPPER RH | ||||
| 53825-0D060 |
NSP151 |
1 | ||
| 53826A - PROTECTOR, FRONT FENDER, UPPER LH | ||||
| 53826-0D060 |
NSP151 |
1 | ||
| 53827L - PROTECTOR, FRONT FENDER SIDE PANEL, RH | ||||
| 53827-0D231 |
NSP151 |
1 | ||
| 53828K - PROTECTOR, FRONT FENDER SIDE PANEL, LH | ||||
| 53828-0D231 |
NSP151 |
1 | ||
| 53857 - RETAINER, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53857-0K010 |
NSP151 |
2 | ||
| 53858 - RETAINER, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53857-0K010 |
NSP151 |
2 | ||
| 53866 - SEAL, FRONT FENDER TO COWL SIDE, RH | ||||
| 53866-0D220 |
NSP151 |
1 | ||
| 53867 - SEAL, FRONT FENDER TO COWL SIDE, LH | ||||
| 53867-0D220 |
NSP151 |
1 | ||
| 53882F - SEAL, FRONT FENDER | ||||
| 53882-0K020 |
NSP151 |
6 | ||
| 53882F - SEAL, FRONT FENDER | ||||
| 53882-0K020 |
NSP151 |
6 | ||
| 53882F - SEAL, FRONT FENDER | ||||
| 53882-0K020 |
NSP151 |
6 | ||
| Common parts | ||||
| 90119-T0004 | ||||
| 90467-T0014 | ||||
| 90950-T6002 | ||||

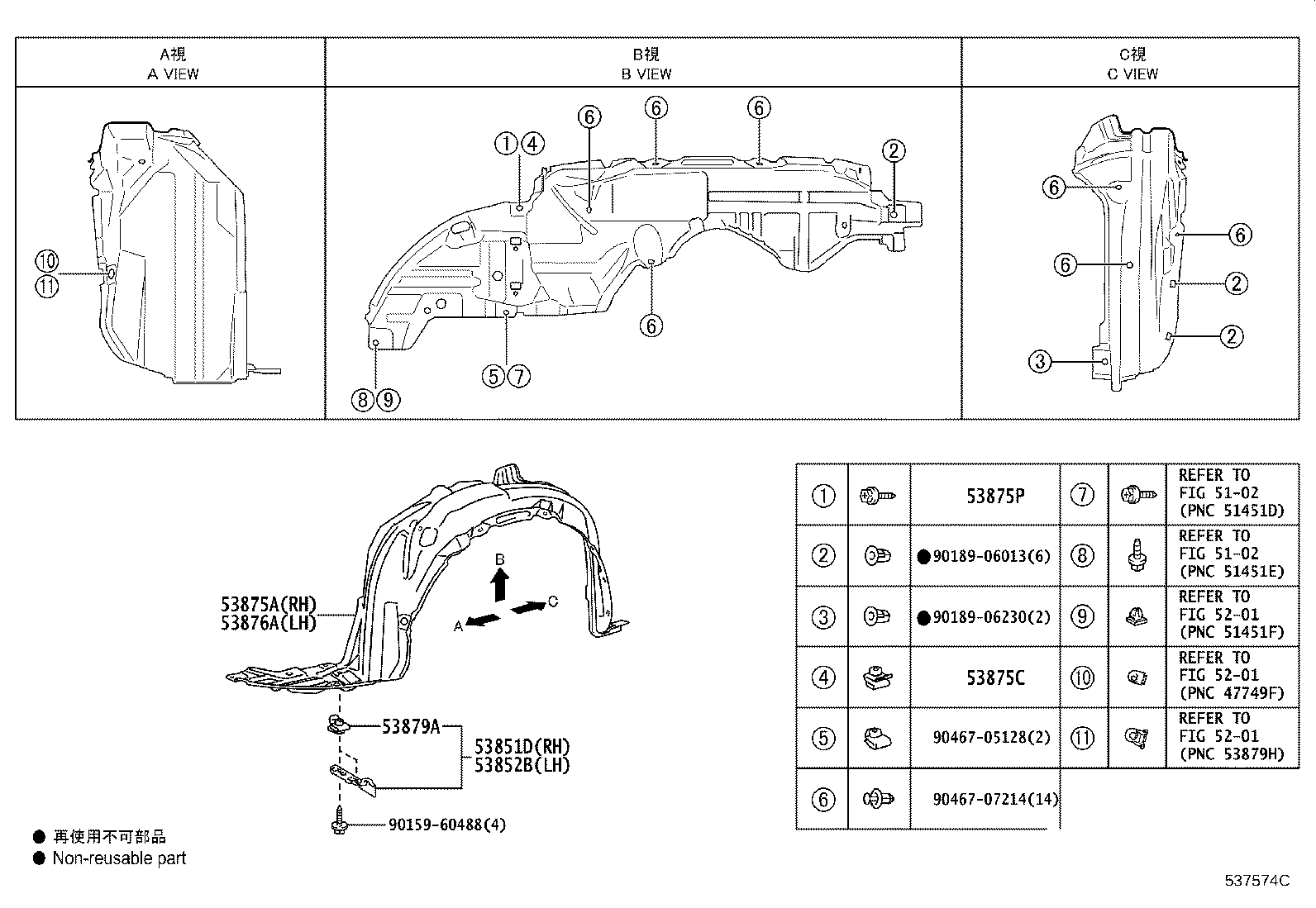

ILLUST NO. 2 OF 2(2012- )
Click highlighted areas on diagram
FENDER LINER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53851D - PAD, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53851-0D090 |
NSP151 |
1 | ||
| 53852B - PAD, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53852-0D050 |
NSP151 |
1 | ||
| 53875A - LINER, FRONT FENDER, RH | ||||
| 53875-0D531 |
NSP151..D |
1 | ||
| 53875-0D661 |
NSP151..G,R |
1 | ||
| 53875C - CLIP, FRONT FENDER LINER | ||||
| 90467-05114 |
NSP151 |
2 | ||
| 53875D - CLIP, FRONT FENDER LINER, NO.2 | ||||
| 90467-05128 |
NSP151 |
2 | ||
| 53875E - CLIP, FRONT FENDER LINER, NO.3 | ||||
| 90467-07214 |
NSP151 |
14 | ||
| 53875P - SCREW, NO.1 | ||||
| 90159-T0033 |
NSP151 |
2 | ||
| 53875S - GROMMET, NO.1 | ||||
| 90189-06013 |
NSP151 |
6 | ||
| 53875T - GROMMET, NO.2 | ||||
| 90189-06230 |
NSP151 |
2 | ||
| 53876A - LINER, FRONT FENDER, LH | ||||
| 53876-0D531 |
NSP151..D |
1 | ||
| 53876-0D661 |
NSP151..G,R |
1 | ||
| 53879A - RETAINER, FRONT FENDER LINER | ||||
| 53879-17020 |
NSP151 |
4 | ||
| Common parts | ||||
| 90159-T0033 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5201 | ||||
ILLUST NO. 1 OF 2(2101- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-T0004 | ||||
| 90467-09050 | ||||
| 90467-T0014 | ||||
| 90950-06124 | ||||
| 90950-T6002 | ||||
ILLUST NO. 2 OF 2(2101- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-60488 | ||||
| 90189-06013 | ||||
| 90189-06230 | ||||
| 90467-05128 | ||||
| 90467-07214 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5201 | ||||
