NSP151L-FHXRKR (2021)

Toyota Vios/Yaris

Production Jan 2021 - Sep 9999
Engine 2NRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2101- )5D

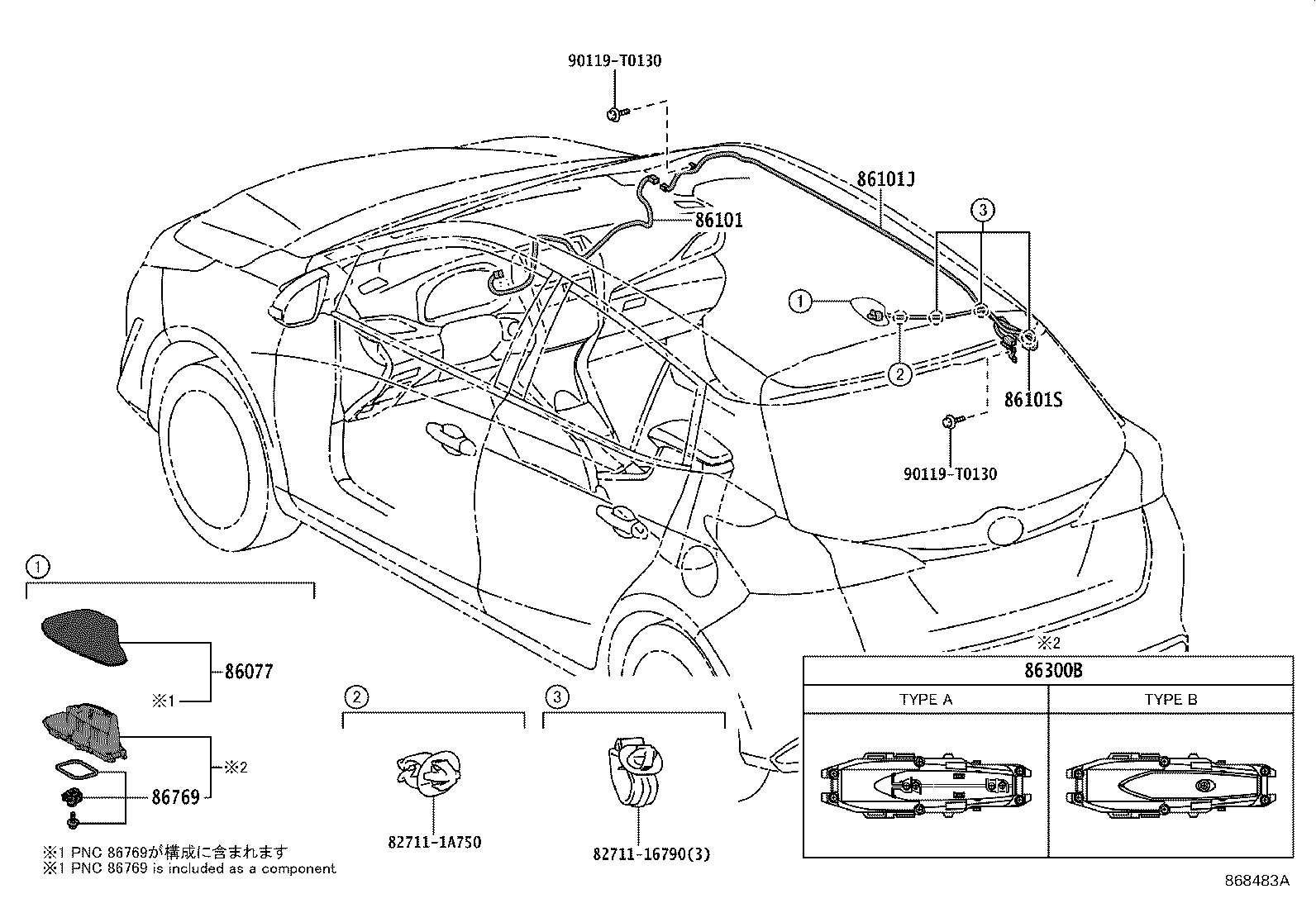

Click highlighted areas on diagram

diagram 8271116790 827111A750 86077 86101 86101J 86101S 86300B 86769 90119T0130 90119T0130
Part # Description Qty Price
86077 - COVER KIT, ANTENNA
86077-0K010J4

NSP151..5D

CYAN METALLIC,8W9

 1
86077-0K010B3

NSP151..5D

GRAY ME.,1G3

 1
86077-0K010D1

NSP151..5D

RED M.M.,3R3

 1
86077-0K010J2

NSP151..5D

DK.BLUE M.M.,8W7

 1
86077-0K010C1

NSP151..5D

BLACK MC.,209

 1
86077-0K010B4

NSP151..5D

SILVER ME.,1F7

 1
86077-0K010F0

NSP151..5D

AIR YELLOW,5B6

 1
86077-0K010A1

NSP151..5D

SUPER WHITE 2,040

 1
86101 - CORD SUB-ASSY, ANTENNA
86101-0DA40

NSP151

 1
86101J - CORD SUB-ASSY, ANTENNA, NO.2
86101-0DA00

NSP151..5D

 1
86101S - CORD SUB-ASSY, ANTENNA
86101-0DA90

NSP151..5D

 1
86300B - ANTENNA ASSY, AMPLIFIER, NO.1
86300-0D481

NSP151..5D

 1
86300-0D480

NSP151..5D

TYPE B:REFER ILLUST.

 1
86300-0D481

NSP151..5D

TYPE A:REFER ILLUST.

 1
86769 - HOUSING, ROOF ANTENNA
86769-0K020

NSP151..5D

 1
Common parts
82711-16790
82711-1A750
90119-T0130
