NSP151L-FHXGKR (2021)

Toyota Vios/Yaris

Production Jan 2021 - Sep 9999
Engine 2NRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

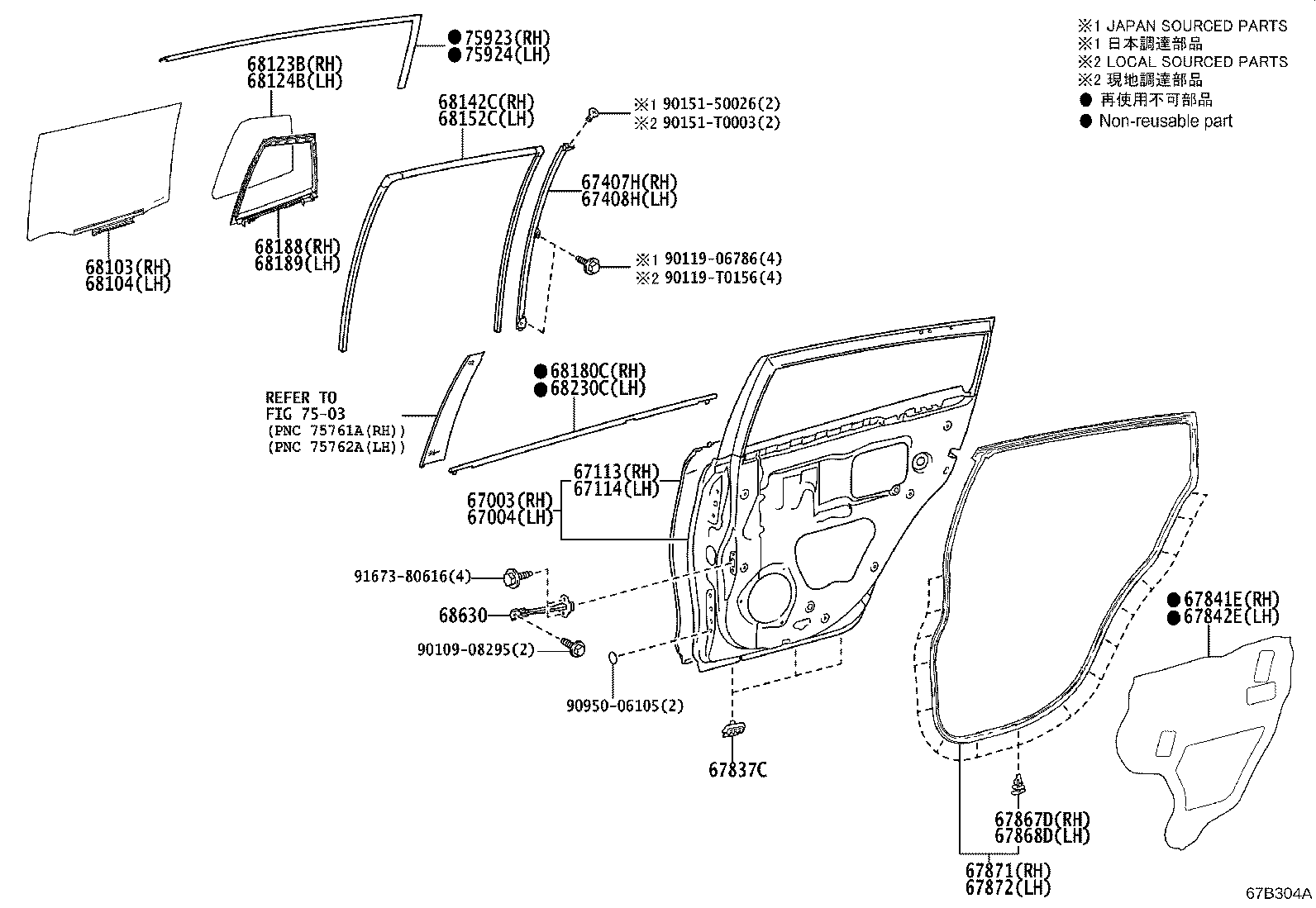

ILLUST NO. 1 OF 2(2101- )5D

Click highlighted areas on diagram

DOOR PANEL

diagram 67003 67004 67113 67114 67407H 67408H 67837C 67841E 67842E 67867D 67868D 67871 67872 68103 68104 68123B 68124B 68142C 68152C 68180C 68188 68189 68230C 68630 7503 75923 75924 9010908295 9011906786 90119T0156 9015150026 90151T0003 9095006105 9167380616
Part # Description Qty Price
67003 - PANEL SUB-ASSY, REAR DOOR, RH
67003-0D440

NSP151..5D

 1
67004 - PANEL SUB-ASSY, REAR DOOR, LH
67004-0D440

NSP151..5D

 1
67113 - PANEL, REAR DOOR, OUTER RH
67113-K0030

NSP151

 1
67114 - PANEL, REAR DOOR, OUTER LH
67114-K0030

NSP151

 1
67407H - BAR SUB-ASSY, SLIDE DOOR WINDOW DIVISION, RH
67407-0D340

NSP151..5D

 1
67408H - BAR SUB-ASSY, SLIDE DOOR WINDOW DIVISION, LH
67408-0D340

NSP151..5D

 1
67837C - SEAL, REAR DOOR DUST PROOF
67837-0K090

NSP151..G,V;NSP151..4D..R

 6
67837-0K090

NSP151..D;NSP151..5D..R

(L)

 6
67837-48050

NSP151..D;NSP151..5D..R

(J)

 6
67841E - COVER, REAR DOOR SERVICE HOLE, RH
67841-0D470

NSP151..D;NSP151..5D..R

 1
67841-0D461

NSP151..G,V;NSP151..4D..R

 1
67842E - COVER, REAR DOOR SERVICE HOLE, LH
67842-0D461

NSP151..G,V;NSP151..4D..R

 1
67842-0D470

NSP151..D;NSP151..5D..R

 1
67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH
67867-12150

NSP151

 16
67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH
67867-12150

NSP151

 16
67871 - WEATHERSTRIP, REAR DOOR, RH
67871-0D320

NSP151..5D

 1
67872 - WEATHERSTRIP, REAR DOOR, LH
67872-0D320

NSP151..5D

 1
68103 - GLASS SUB-ASSY, REAR DOOR, RH
68130-0D550

NSP151..5D

 1
68104 - GLASS SUB-ASSY, REAR DOOR, LH
68140-0D550

NSP151..5D

 1
68123B - GLASS, REAR DOOR QUARTER WINDOW, RH
68123-0D410

NSP151..5D

 1
68124B - GLASS, REAR DOOR QUARTER WINDOW, LH
68124-0D410

NSP151..5D

 1
68142C - RUN, REAR DOOR GLASS, RH
68142-0D380

NSP151..5D

 1
68152C - RUN, REAR DOOR GLASS, LH
68152-0D340

NSP151..5D

 1
68180C - WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH
68180-0D451

NSP151

 1
68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68188-0D320

NSP151..5D

 1
68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68189-0D320

NSP151..5D

 1
68230C - WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH
68230-0D451

NSP151

 1
68630 - CHECK ASSY, REAR DOOR
68630-0D200

NSP151

 2
75923 - TAPE, BLACK OUT, NO.2 RH
75923-0D360

NSP151..5D

 1
75924 - TAPE, BLACK OUT, NO.2 LH
75924-0D360

NSP151..5D

 1
Common parts
90109-08295
90119-06786
90119-T0156
90151-50026
90151-T0003
90950-06105
91673-80616
Linked diagrams
7503

ILLUST NO. 2 OF 2(2101- )

Click highlighted areas on diagram

DOOR TRIM

diagram 67603 67603B 67603B 67603B 67603E 67603E 67604 67673A 67674A 68173B 68174A 7401 7401 9016450031 90164T0009 9018906130 90189T0017
Part # Description Qty Price
67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
67630-0DJ51C0

NSP151..G,R,V

BLACK,TRIM2#

 1
67630-0DJ51A0

NSP151..G,R

IVORY,TRIM0#

 1
67630-0DJ40C0

NSP151..D

BLACK,TRIM2#

 1
67603B - CLIP(FOR REAR DOOR TRIM BOARD)
90467-09206

NSP151

 10
67603B - CLIP(FOR REAR DOOR TRIM BOARD)
90467-09206

NSP151

 10
67603B - CLIP(FOR REAR DOOR TRIM BOARD)
90467-09206

NSP151

 10
67603E - CLIP(FOR REAR DOOR TRIM BOARD)
90467-10161

NSP151

 4
67603E - CLIP(FOR REAR DOOR TRIM BOARD)
90467-10161

NSP151

 4
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-0DJ51A0

NSP151..G,R

IVORY,TRIM0#

 1
67640-0DJ51C0

NSP151..G,R,V

BLACK,TRIM2#

 1
67640-0DJ40C0

NSP151..D

BLACK,TRIM2#

 1
67673A - GARNISH, REAR DOOR FRAME, RH
67673-0D070

NSP151

 1
67674A - GARNISH, REAR DOOR FRAME, LH
67674-0D060

NSP151

 1
68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH
68173-0D281

NSP151

 1
68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH
68174-0D281

NSP151

 1
Common parts
90164-50031
90164-T0009
90189-06130
90189-T0017
Linked diagrams
7401
