NSP151L-BHXNKC (2017)

Toyota Vios/Vios Fs (China)

Production Mar 2017 - Aug 2020
Engine 5NRF
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(1703- )5D

Click highlighted areas on diagram

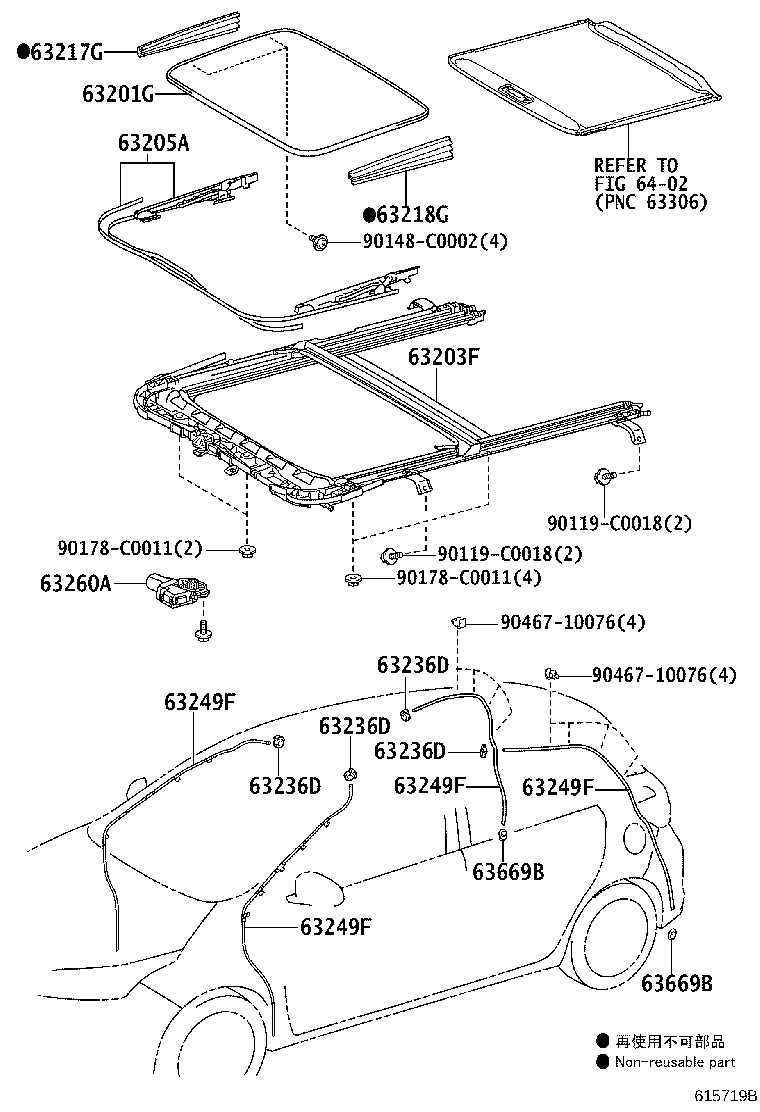

MOON ROOF

diagram 63201G 63203F 63205A 63217G 63218G 63236D 63236D 63236D 63236D 63249F 63249F 63249F 63249F 63260A 63669B 63669B 6402 90119C0018 90119C0018 90148C0002 90178C0011 90178C0011 9046710076 9046710076
Part # Description Qty Price
63203F - HOUSING SUB-ASSY, SLIDING ROOF
63203-0D060

NSP151..5D..N

MOON ROOF-WITH

 1
63205A - CABLE SUB-ASSY, SLIDING ROOF DRIVE
63205-0D021

NSP151..N

MOON ROOF-WITH

 1
63217G - GARNISH, SLIDING ROOF SIDE, RH
63217-30100

NSP151..N

MOON ROOF-WITH

 1
63218G - GARNISH, SLIDING ROOF SIDE, LH
63217-30100

NSP151..N

MOON ROOF-WITH

 1
63236D - CLAMP, SLIDING ROOF DRAIN HOSE
63236-02060

NSP151..5D..N

MOON ROOF-WITH,(L)

 4
63236-33030

NSP151..5D..N

MOON ROOF-WITH,(J)

 4
63236D - CLAMP, SLIDING ROOF DRAIN HOSE
63236-02060

NSP151..5D..N

MOON ROOF-WITH,(L)

 4
63236-33030

NSP151..5D..N

MOON ROOF-WITH,(J)

 4
63236D - CLAMP, SLIDING ROOF DRAIN HOSE
63236-02060

NSP151..5D..N

MOON ROOF-WITH,(L)

 4
63236-33030

NSP151..5D..N

MOON ROOF-WITH,(J)

 4
63236D - CLAMP, SLIDING ROOF DRAIN HOSE
63236-02060

NSP151..5D..N

MOON ROOF-WITH,(L)

 4
63236-33030

NSP151..5D..N

MOON ROOF-WITH,(J)

 4
63249F - HOSE, SLIDING ROOF DRAIN
63249-0D180

NSP151..5D..N

MOON ROOF-WITH,REAR

 2
63249F - HOSE, SLIDING ROOF DRAIN
63249-0D180

NSP151..5D..N

MOON ROOF-WITH,REAR

 2
63249F - HOSE, SLIDING ROOF DRAIN
63249-0D180

NSP151..5D..N

MOON ROOF-WITH,REAR

 2
63249F - HOSE, SLIDING ROOF DRAIN
63249-0D180

NSP151..5D..N

MOON ROOF-WITH,REAR

 2
63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE
63260-0D080

NSP151..5D..N

MOON ROOF-WITH

 1
63669B - GROMMET, SLIDING ROOF DRAIN
90480-26020

NSP151..5D..N

MOON ROOF-WITH

 2
63669B - GROMMET, SLIDING ROOF DRAIN
90480-26020

NSP151..5D..N

MOON ROOF-WITH

 2
Common parts
90119-C0018
90148-C0002
90178-C0011
90467-10076
Linked diagrams
6402

ILLUST NO. 1 OF 2(1703- )5D

Click highlighted areas on diagram

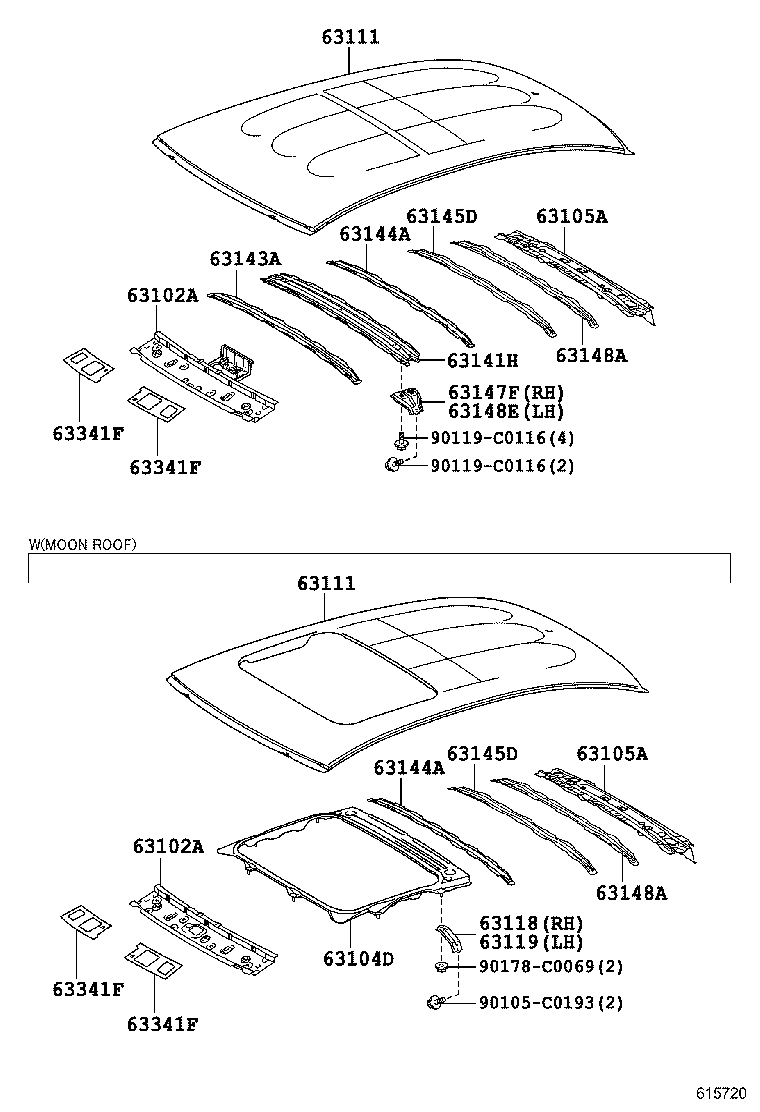

ROOF PANEL

diagram 63102A 63102A 63102A 63104D 63105A 63105A 63111 63111 63118 63119 63141H 63143A 63144A 63144A 63145D 63145D 63147F 63148A 63148A 63148E 63341F 63341F 63341F 63341F 90105C0193 90119C0116 90119C0116 90178C0069
Part # Description Qty Price
63105A - FRAME SUB-ASSY, BACK DOOR OPENING
63105-0D210

NSP151..5D

 1
63105A - FRAME SUB-ASSY, BACK DOOR OPENING
63105-0D210

NSP151..5D

 1
63111 - PANEL, ROOF
63111-K0080

NSP151..5D..N

MOON ROOF-WITH

 1
63111-K0070

NSP151..5D..(N,R)

 1
63111 - PANEL, ROOF
63111-K0080

NSP151..5D..N

MOON ROOF-WITH

 1
63111-K0070

NSP151..5D..(N,R)

 1
63144A - REINFORCEMENT, ROOF PANEL, NO.4
63144-0D260

NSP151..5D

 1
63144A - REINFORCEMENT, ROOF PANEL, NO.4
63144-0D260

NSP151..5D

 1
63145D - BRACKET, ROOF REINFORCEMENT
63145-0D160

NSP151..5D

 1
63145D - BRACKET, ROOF REINFORCEMENT
63145-0D160

NSP151..5D

 1
63148A - REINFORCEMENT, ROOF PANEL, NO.7
63148-0D110

NSP151..5D

 1
63148A - REINFORCEMENT, ROOF PANEL, NO.7
63148-0D110

NSP151..5D

 1
Common parts
90105-C0193
90119-C0116
90178-C0069
