NSP151L-BHMRKC (2020)
Toyota Vios/Vios Fs (China)
Production
Aug 2020
-
Sep 9999
Engine
5NRF
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

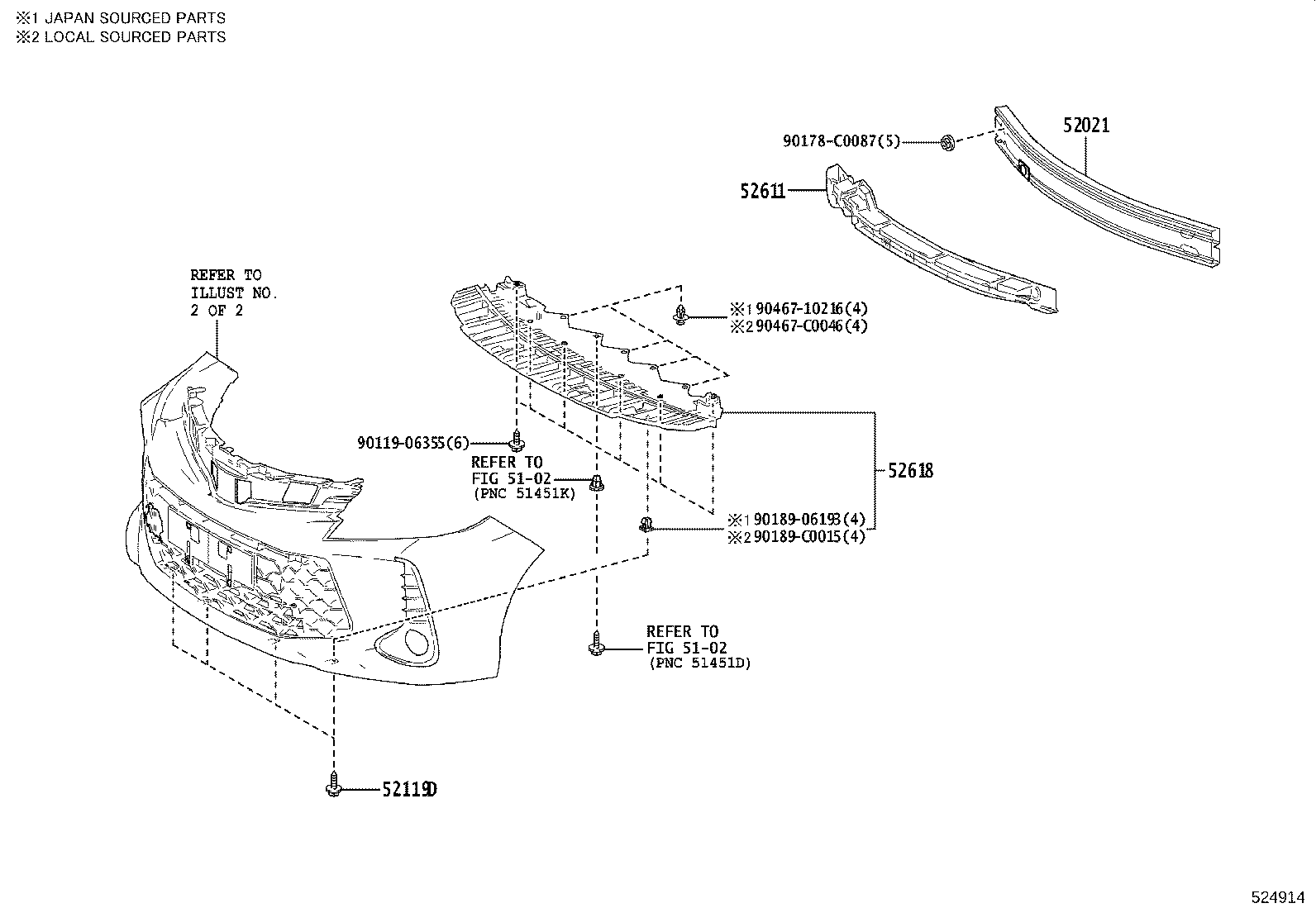

ILLUST NO. 1 OF 2(2008- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-0D130 |
NSP151 |
1 | ||
| 52119D - SCREW, NO.1 | ||||
| 90159-60477 |
NSP151 (J) |
4 | ||
| 90159-C0049 |
NSP151 (L) |
4 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-0D090 |
NSP151 |
1 | ||
| 52618 - ABSORBER, FRONT BUMPER, LOWER | ||||
| 52618-0D090 |
NSP151 |
1 | ||
| Common parts | ||||
| 90119-06355 | ||||
| 90178-C0087 | ||||
| 90189-06193 | ||||
| 90189-C0015 | ||||
| 90467-10216 | ||||
| 90467-C0046 | ||||
| Linked diagrams | ||||
| 5102 | ||||

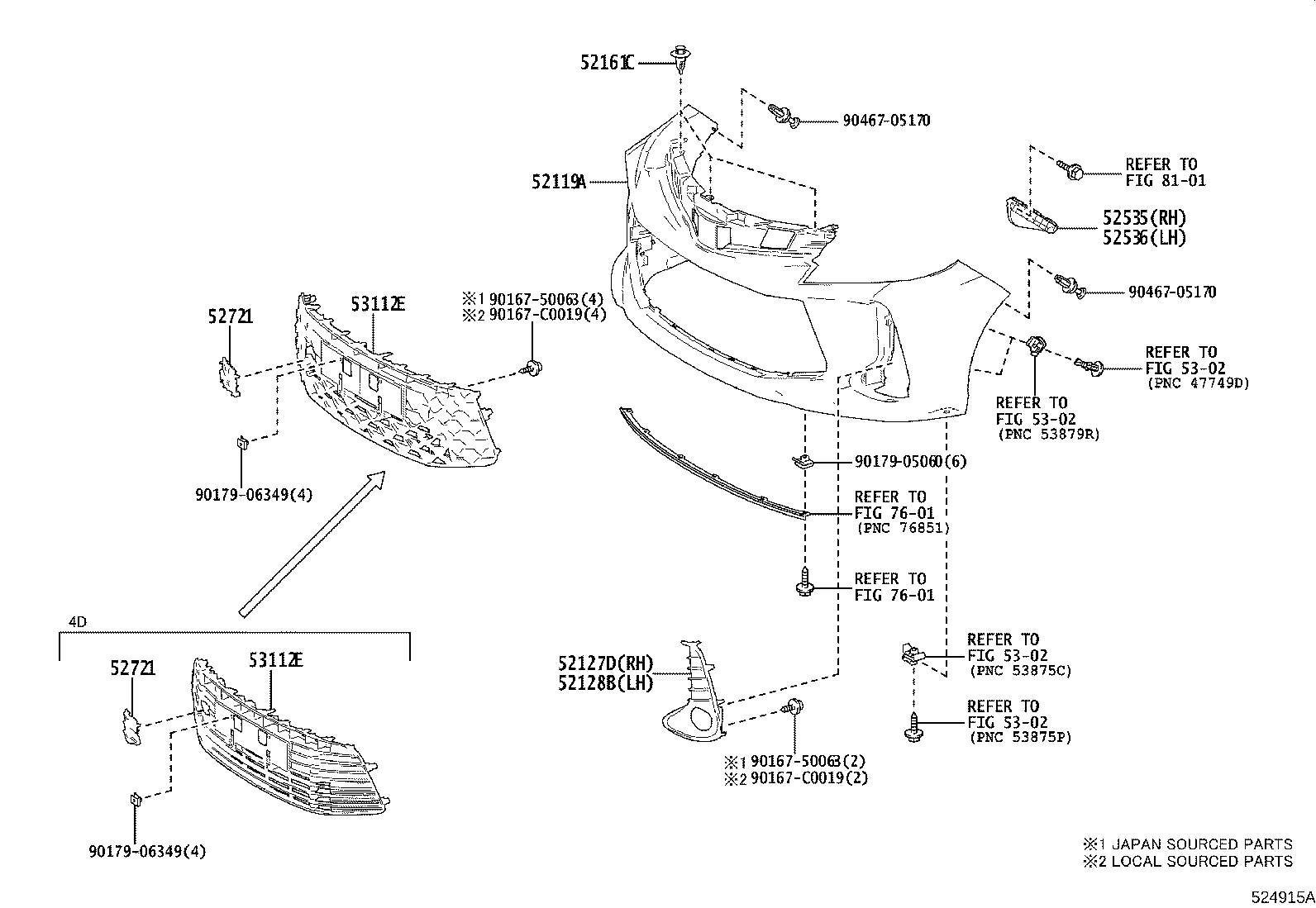

ILLUST NO. 2 OF 2(2008- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-0U944 |
NSP151 PAINT REQ. |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-0DF20 |
NSP151..N NO PAINT REQ. |
1 | ||
| 52127-0DF90 |
NSP151..N NO PAINT REQ.,MOON ROOF PACKAGE |
1 | ||
| 52127-0DF10 |
NSP151..R NO PAINT REQ. |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-0DE90 |
NSP151..N |
1 | ||
| 52128-0DF20 |
NSP151..N MOON ROOF PACKAGE |
1 | ||
| 52128-0DE80 |
NSP151..R |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-02040 |
NSP151 |
3 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-0D110 |
NSP151 |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52536-0D110 |
NSP151 |
1 | ||
| 52721 - MOULDING, FRONT BUMPER EXTENSION, RH | ||||
| 52721-0D740 |
NSP151..5D..R |
1 | ||
| 52721-0D750 |
NSP151..5D..N |
1 | ||
| 52721 - MOULDING, FRONT BUMPER EXTENSION, RH | ||||
| 52721-0D740 |
NSP151..5D..R |
1 | ||
| 52721-0D750 |
NSP151..5D..N |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-0DE40 |
NSP151..5D..N NO PAINT REQ. |
1 | ||
| 53112-0DE30 |
NSP151..5D..R NO PAINT REQ. |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-0DE40 |
NSP151..5D..N NO PAINT REQ. |
1 | ||
| 53112-0DE30 |
NSP151..5D..R NO PAINT REQ. |
1 | ||
| Common parts | ||||
| 90167-50063 | ||||
| 90167-C0019 | ||||
| 90179-05060 | ||||
| 90179-06349 | ||||
| 90467-05170 | ||||
| Linked diagrams | ||||
| 5302 | ||||
| 7601 | ||||
| 8101 | ||||
