NSP151L-BEXRKC (2016)

Toyota Vios/Vios Fs (China)

Production Sep 2016 - Aug 2020
Engine 5NRF
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1609-1811)NSP151..CVT ; (1609- )NSP150..CVT

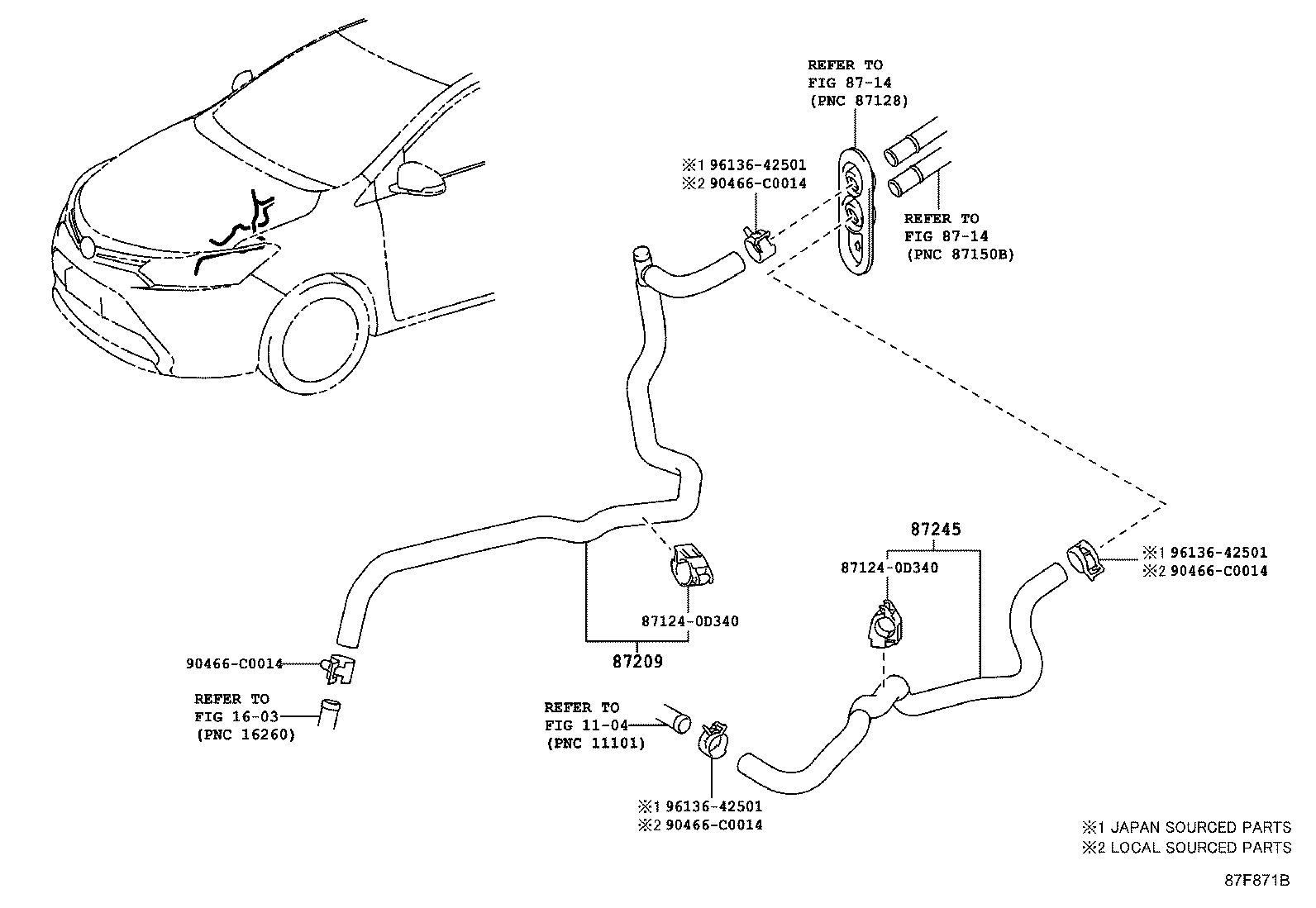

Click highlighted areas on diagram

diagram 1104 1603 871240D340 871240D340 8714 8714 87209 87245 90466C0014 90466C0014 90466C0014 90466C0014 9613642501 9613642501 9613642501
Part # Description Qty Price
87209 - HOSE SUB-ASSY, WATER
87209-0D300

NSP151..CVT

 1
87209-0D810

NSP151..CVT

 1
87245 - HOSE, HEATER WATER, INLET
87209-0D290

NSP151..CVT

 1
87245-0D800

NSP151..CVT

 1
Common parts
87124-0D340
90466-C0014
96136-42501
Linked diagrams
1104
1603
8714

(1811- )NSP151..CVT

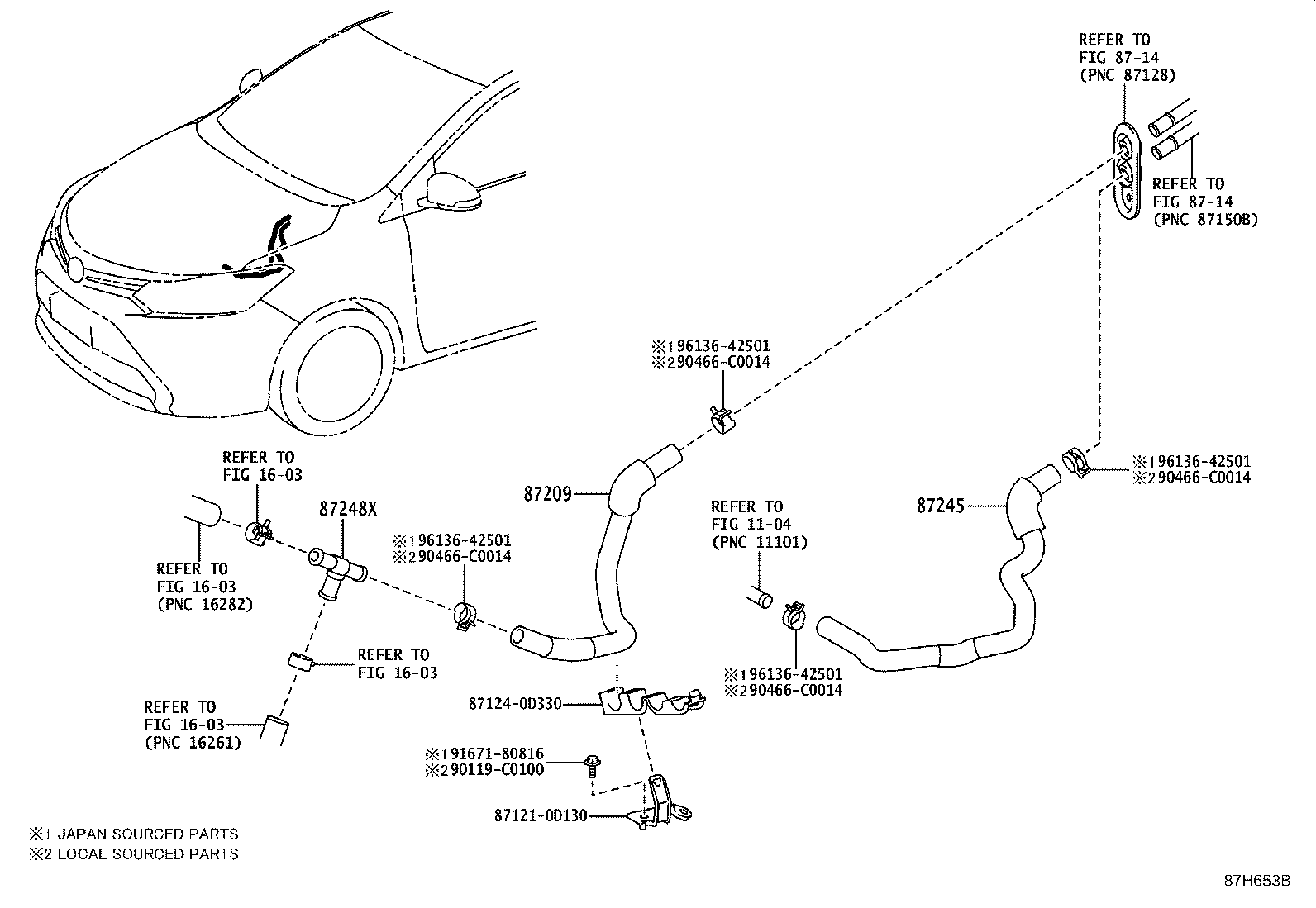

Click highlighted areas on diagram

diagram 1104 1603 1603 1603 1603 871210D130 871240D330 8714 8714 87209 87245 87248X 90119C0100 90466C0014 90466C0014 90466C0014 90466C0014 9167180816 9613642501 9613642501 9613642501 9613642501
Part # Description Qty Price
87209 - HOSE SUB-ASSY, WATER
87209-0D300

NSP151..CVT

 1
87209-0D810

NSP151..CVT

 1
87245 - HOSE, HEATER WATER, INLET
87209-0D290

NSP151..CVT

 1
87245-0D800

NSP151..CVT

 1
87248X - PIPE, HEATER WATER
87248-0D040

NSP151

 1
Common parts
87121-0D130
87124-0D330
90119-C0100
90466-C0014
91671-80816
96136-42501
Linked diagrams
1104
1603
8714
