NSP151L-BEXRKC (2016)
Toyota Vios/Vios Fs (China)
Production
Sep 2016
-
Aug 2020
Engine
5NRF
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1609- )

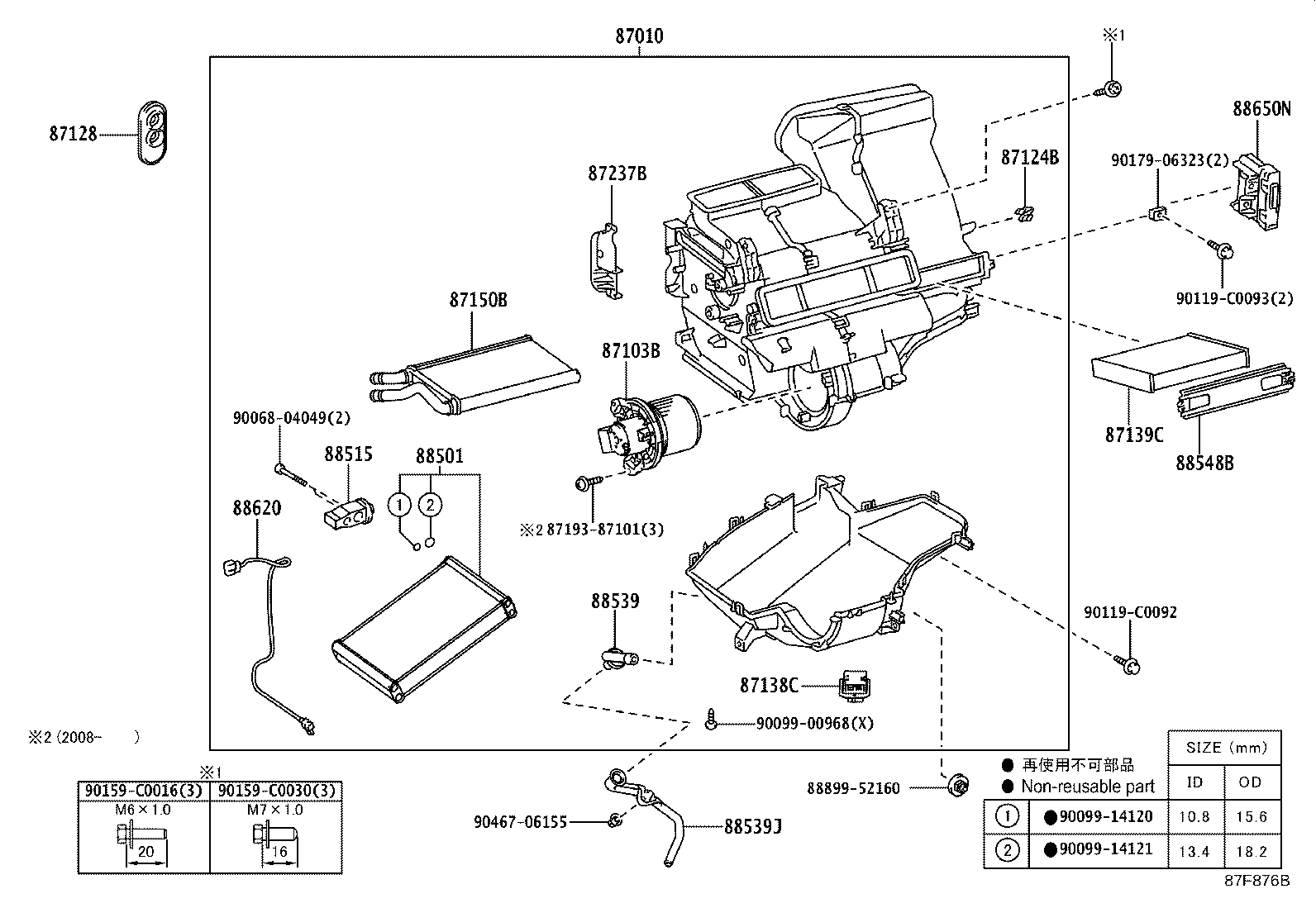

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87010 - UNIT ASSY, AIR CONDITIONER | ||||
| 87010-0DG20 |
NSP151 |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-0D270 |
NSP151 |
1 | ||
| 87124B - CLAMP, HEATER | ||||
| 87124-0D130 |
NSP151 |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-0D080 |
NSP151 |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-0D140 |
NSP151 |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-50100 |
NSP151 POLLEN DEODORANT |
1 | ||
| 87139-0D030 |
NSP151 STANDARD,OE PART |
1 | ||
| 87150B - RADIATOR ASSY, HEATER | ||||
| 87150-0D120 |
NSP151 |
1 | ||
| 87237B - COVER, HEATER PIPING | ||||
| 87237-0D030 |
NSP151 |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-0D450 |
NSP151 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-0D670 |
NSP151 |
1 | ||
| 88515-0D430 |
NSP15# |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-0D270 |
NSP151 |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-0D280 |
NSP151 |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-0D150 |
NSP151 |
1 | ||
| 88620 - THERMOSTAT SUB-ASSY | ||||
| 88620-0D040 |
NSP151 |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-0D640 |
NSP151 |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 88899-52160 | ||||
| 90068-04049 | ||||
| 90099-00968 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-C0092 | ||||
| 90119-C0093 | ||||
| 90159-C0016 | ||||
| 90159-C0030 | ||||
| 90179-06323 | ||||
| 90467-06155 | ||||
