NSP151L-BEXRKC (2016)

Toyota Vios/Vios Fs (China)

Production Sep 2016 - Aug 2020
Engine 5NRF
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 7(1311-1811)NSP151 ; (1311- )NSP150

Click highlighted areas on diagram

ENGINE

diagram 82121 82219A 82815B 82815G 82817B 82817J 82817K 82823S 82823T 8401 9011906995 90119C0096 90119C0100 90126C0002 90178C0032 90178C0032
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-0DN70

NSP151..CVT

 1
82121-0DU70

NSP151..CVT

 1
82219A - WIRE, SENSOR
82219-0D090

NSP151

 1
82815B - COVER, WIRING HARNESS PROTECTOR
82815-52230

NSP151

 1
82815G - COVER, WIRING HARNESS PROTECTOR NO.5
82815-0D400

NSP151..CVT

 1
82817B - PROTECTOR, WIRING HARNESS, NO.3
82817-52B80

NSP151

 1
82817J - PROTECTOR, WIRING HARNESS, NO.9
82817-0DB50

NSP151

 1
82817K - PROTECTOR, WIRING HARNESS, NO.10
82817-0D790

NSP151..CVT

 1
82823S - CAP, STARTER TERMINAL
82823-20080

NSP151

 1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050

NSP151

 1
Common parts
90119-06995
90119-C0096
90119-C0100
90126-C0002
90178-C0032
Linked diagrams
8401

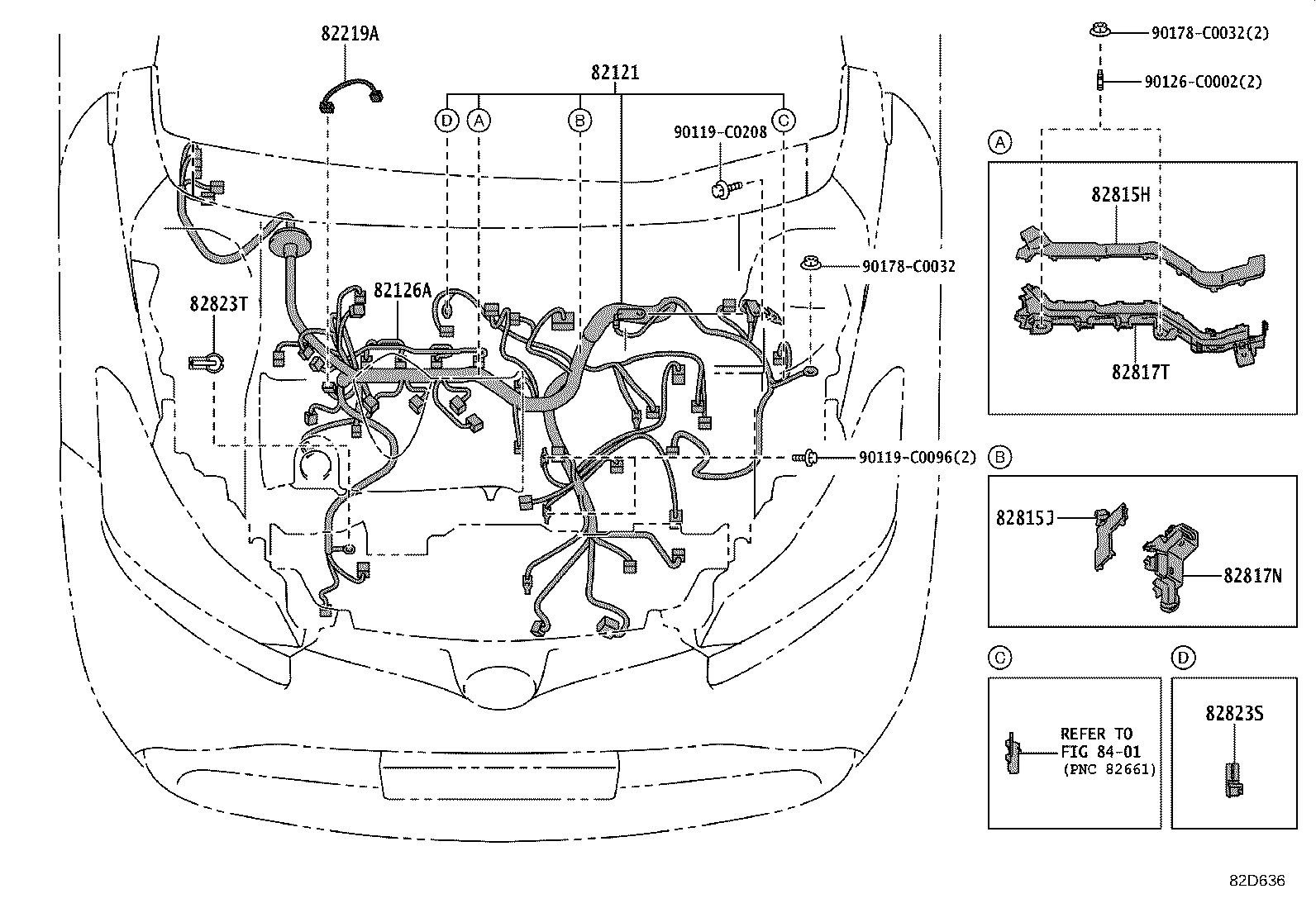

ILLUST NO. 3 OF 7(1811- )NSP151

Click highlighted areas on diagram

ENGINE

diagram 82121 82126A 82219A 82815H 82815J 82817N 82817T 82823S 82823T 8401 90119C0096 90119C0208 90126C0002 90178C0032 90178C0032
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-0DN70

NSP151..CVT

 1
82121-0DU70

NSP151..CVT

 1
82126A - WIRE, ENGINE, NO.6
82126-0D020

NSP151

 1
82219A - WIRE, SENSOR
82219-0D090

NSP151

 1
82815H - COVER, WIRING HARNESS PROTECTOR NO.6
82815-0D430

NSP151

 1
82815J - COVER, WIRING HARNESS PROTECTOR, NO.7
82815-0D440

NSP151

 1
82817N - PROTECTOR, WIRING HARNESS, NO.13
82817-0DD80

NSP151

 1
82817T - PROTECTOR, WIRING HARNESS, NO.15
82817-0D750

NSP151

 1
82823S - CAP, STARTER TERMINAL
82823-20080

NSP151

 1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050

NSP151

 1
Common parts
90119-C0096
90119-C0208
90126-C0002
90178-C0032
Linked diagrams
8401
