NSP151L-BEXRKC (2016)

Toyota Vios/Vios Fs (China)

Production Sep 2016 - Aug 2020
Engine 5NRF
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1609-2008)N,R

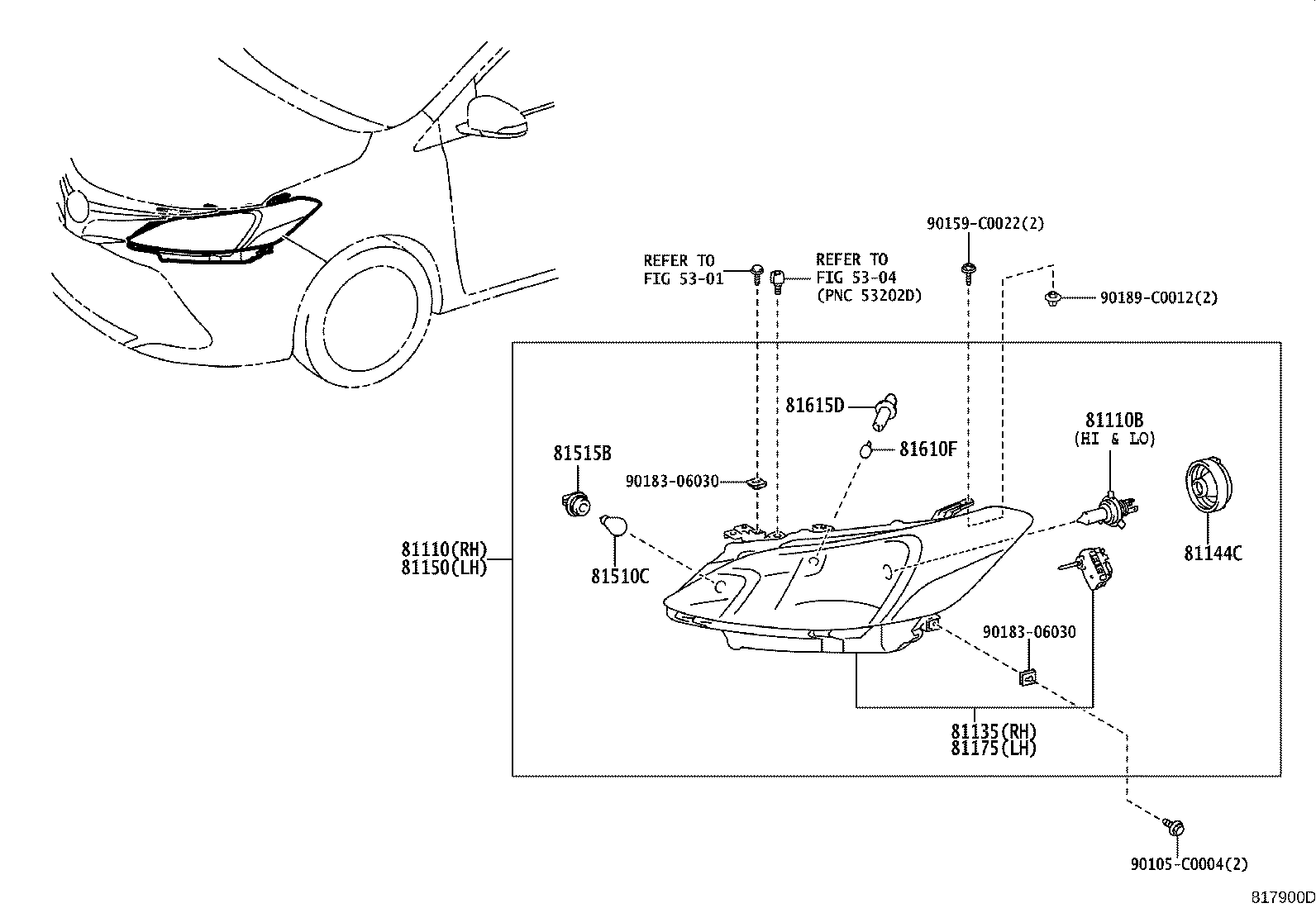

Click highlighted areas on diagram

diagram 5301 5304 81110 81110B 81135 81144C 81150 81175 81510C 81515B 81610F 81615D 90105C0004 90159C0022 9018306030 9018306030 90189C0012
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-0DE10

NSP151..4D..(N,R)

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13100

NSP151..N,R

12V 60/55W

 2
81135 - UNIT ASSY, HEADLAMP, RH
81130-0DE10

NSP151..4D..(N,R)

 1
81144C - COVER, HEADLAMP SOCKET
90069-81112

NSP151..N,R

 2
81150 - HEADLAMP ASSY, LH
81150-0DE10

NSP151..4D..(N,R)

 1
81175 - UNIT ASSY, HEADLAMP, LH
81170-0DE10

NSP151..4D..(N,R)

 1
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15028

NSP151

12V 21W,AMBER

 2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90069-81113

NSP151

 2
81610F - BULB(FOR CLEARANCE LAMP)
90981-11069

NSP151..N,R

12V 5W

 2
81615D - SOCKET, CLEARANCE LAMP
81125-0DE10

NSP151..N,R

 2
Common parts
90105-C0004
90159-C0022
90183-06030
90189-C0012
Linked diagrams
5301
5304
