NSP151L-BEXRKC (2016)
Toyota Vios/Vios Fs (China)

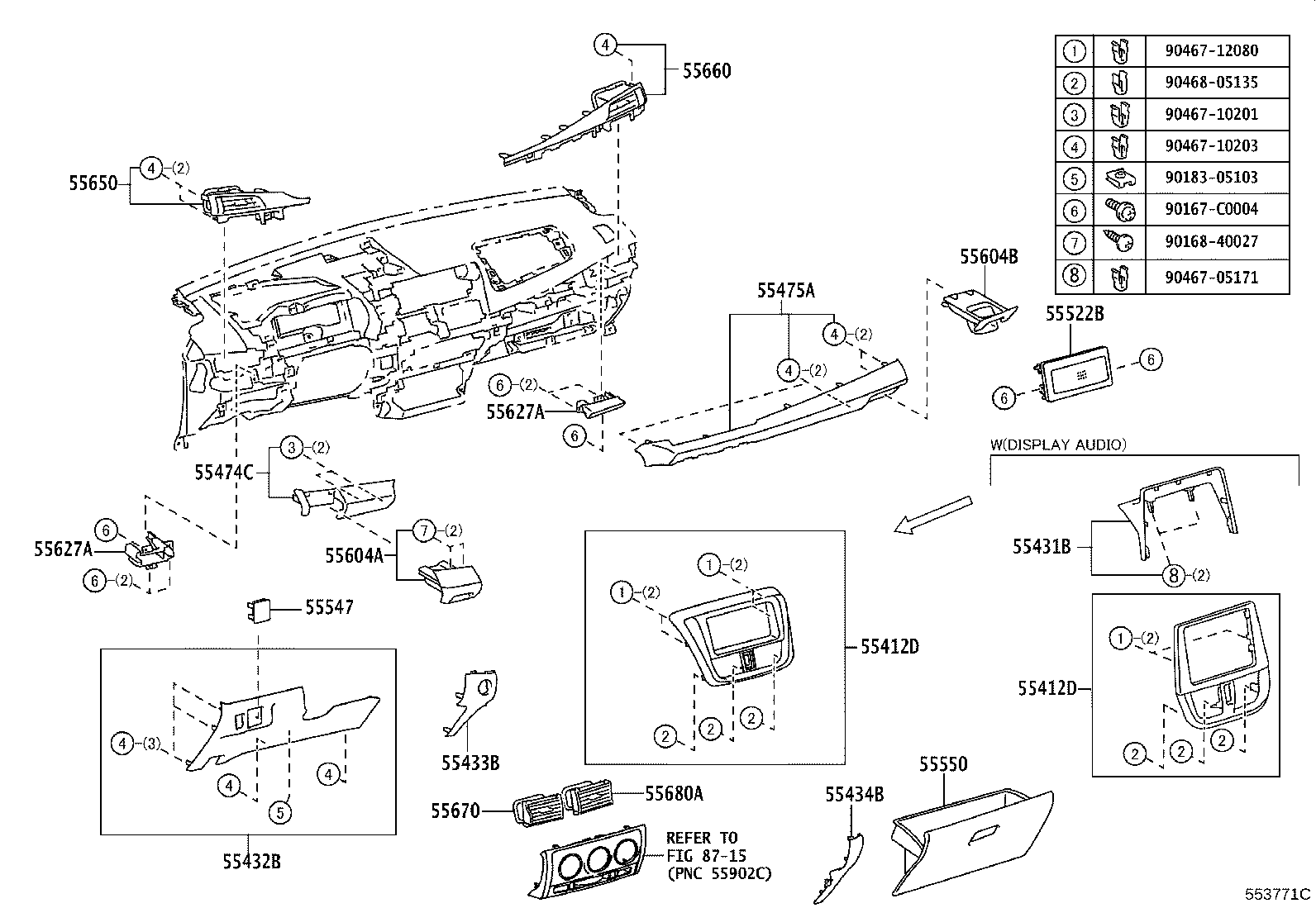

ILLUST NO. 2 OF 2(1609- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-0D770C0 |
NSP151..N,R BLACK,TRIM0#,2# |
1 | ||
| 55405-0D780C0 |
NSP151..N,R AUDIO LESS PACKAGE,BLACK,TRIM0#,2# |
1 | ||
| 55405-0DA50C0 |
NSP151..CVT..R 2019/11 PACKAGE(WHITE INTERIOR PANEL),BLACK,TRIM2# |
1 | ||
| 55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-0D770C0 |
NSP151..N,R BLACK,TRIM0#,2# |
1 | ||
| 55405-0D780C0 |
NSP151..N,R AUDIO LESS PACKAGE,BLACK,TRIM0#,2# |
1 | ||
| 55405-0DA50C0 |
NSP151..CVT..R 2019/11 PACKAGE(WHITE INTERIOR PANEL),BLACK,TRIM2# |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55432-0D051C0 |
NSP151..N,R BLACK,TRIM2# |
1 | ||
| 55432-0D051A0 |
NSP151..N,R IVORY,TRIM0# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-0D040A0 |
NSP151..N,R IVORY,TRIM0# |
1 | ||
| 55433-0D040C0 |
NSP151..N,R BLACK,TRIM2# |
1 | ||
| 55433-0D050C0 |
NSP151..CVT..R 2019/11 PACKAGE(WHITE INTERIOR PANEL),BLACK,TRIM2# |
1 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-0D080C0 |
NSP151..N,R BLACK,TRIM2# |
1 | ||
| 55434-0D080A0 |
NSP151 IVORY,TRIM0# |
1 | ||
| 55474C - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.1 | ||||
| 55474-0D010A0 |
NSP151 IVORY,TRIM0# |
1 | ||
| 55474-0D010C0 |
NSP151..N,R;NSP151..5D..G BLACK,TRIM2# |
1 | ||
| 55475A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2 | ||||
| 55475-0D010A0 |
NSP151 IVORY,TRIM0# |
1 | ||
| 55475-0D010C0 |
NSP151..N,R;NSP151..5D..G BLACK,TRIM2# |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-52020 |
NSP151 AUDIO LESS PACKAGE |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-0D201C0 |
NSP151..N,R BLACK,TRIM2# |
1 | ||
| 55550-0D201A0 |
NSP151 IVORY,TRIM0# |
1 | ||
| 55604A - HOLDER SUB-ASSY, INSTRUMENT PANEL CUP | ||||
| 55618-0D080A0 |
NSP151 IVORY,TRIM0# |
1 | ||
| 55618-0D080C0 |
NSP151..N,R;NSP151..5D..G BLACK,TRIM2# |
1 | ||
| 55604B - HOLDER SUB-ASSY, INSTRUMENT PANEL CUP | ||||
| 55619-0D080C0 |
NSP151..N,R;NSP151..5D..G BLACK,TRIM2# |
1 | ||
| 55619-0D080A0 |
NSP151 IVORY,TRIM0# |
1 | ||
| 55627A - RAIL, INSTRUMENT PANEL CUP HOLDER | ||||
| 55627-0D011 |
NSP151 DRIVER SIDE |
1 | ||
| 55627-0D020 |
NSP151 PASSENGER SIDE |
1 | ||
| 55627A - RAIL, INSTRUMENT PANEL CUP HOLDER | ||||
| 55627-0D011 |
NSP151 DRIVER SIDE |
1 | ||
| 55627-0D020 |
NSP151 PASSENGER SIDE |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-0D190C0 |
NSP151..R BLACK,TRIM0#,2# |
1 | ||
| 55650-0D260 |
NSP151..N |
1 | ||
| 55650-0D800 |
NSP151..CVT..R 2019/11 PACKAGE(WHITE INTERIOR PANEL) |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-0D040C0 |
NSP151..R BLACK,TRIM0#,2# |
1 | ||
| 55660-0D100 |
NSP151..N |
1 | ||
| 55660-0D640 |
NSP151..CVT..R 2019/11 PACKAGE(WHITE INTERIOR PANEL) |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-0D340 |
NSP151..N,R |
1 | ||
| 55680A - REGISTER ASSY, INSTRUMENT PANEL, NO.4 | ||||
| 55680-0D180 |
NSP151..N,R |
1 | ||
| Common parts | ||||
| 90167-C0004 | ||||
| 90168-40027 | ||||
| 90183-05103 | ||||
| 90467-05171 | ||||
| 90467-10201 | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||
| 90468-05135 | ||||
| Linked diagrams | ||||
| 8715 | ||||
