NSP151L-BEXRKC (2016)

Toyota Vios/Vios Fs (China)

Production Sep 2016 - Aug 2020
Engine 5NRF
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1609-2008)4D

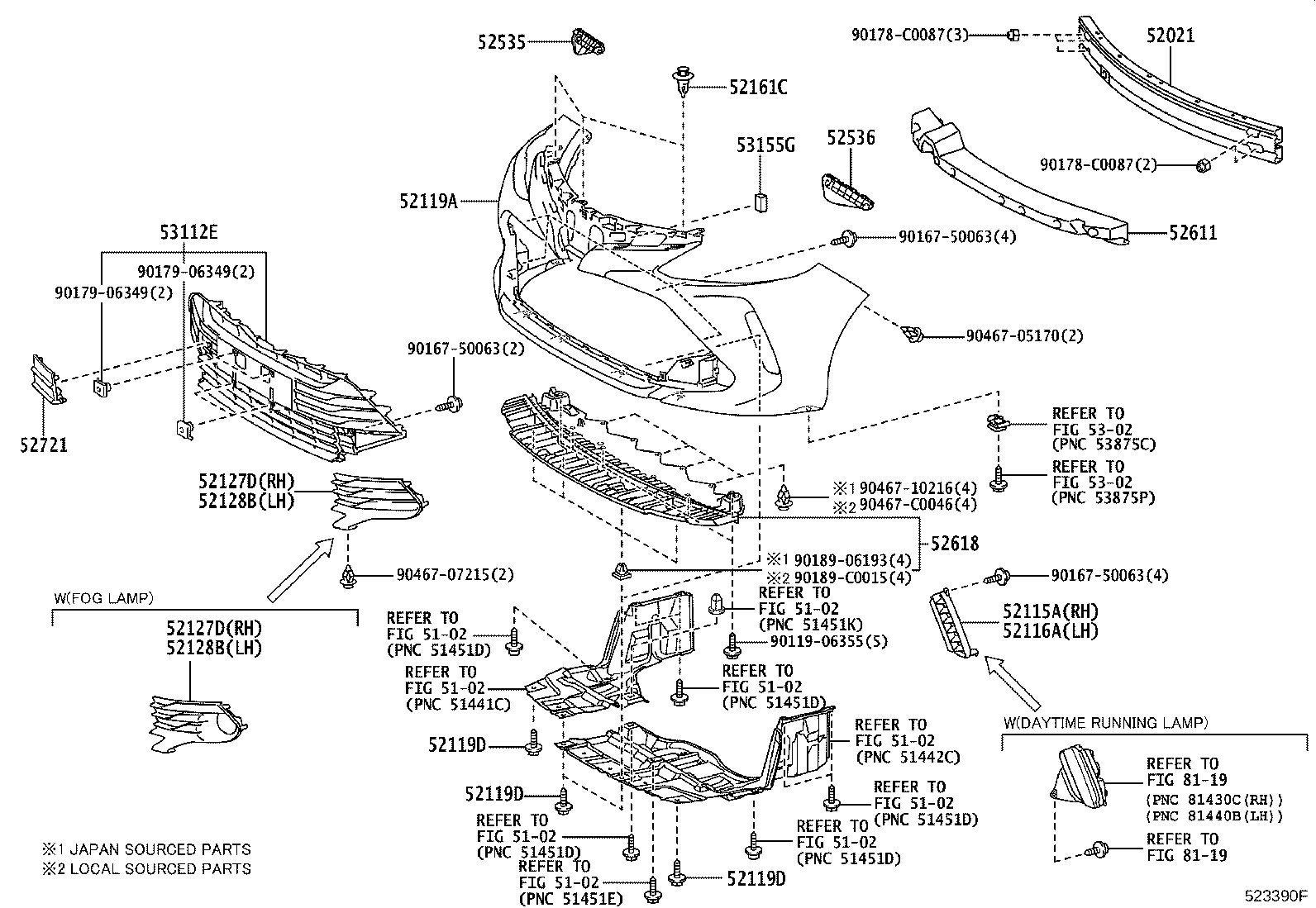

Click highlighted areas on diagram

diagram 5102 5102 5102 5102 5102 5102 5102 5102 5102 52021 52115A 52116A 52119A 52119D 52119D 52119D 52127D 52127D 52128B 52128B 52161C 52535 52536 52611 52618 52721 5302 5302 53112E 53155G 8119 8119 9011906355 9016750063 9016750063 9016750063 90178C0087 90178C0087 9017906349 9017906349 9018906193 90189C0015 9046705170 9046707215 9046710216 90467C0046
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-0D130

NSP151

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-0D090

NSP151..R

 1
52115-0D110

NSP151..N

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-0D110

NSP151..N

 1
52116-0D090

NSP151..R

 1
52119A - COVER, FRONT BUMPER
52119-0Z987

NSP151

PAINT REQ.

 1
52119D - SCREW, NO.1
90159-C0049

NSP15#

(L)

 4
90159-60477

NSP15#

(J)

 4
52119D - SCREW, NO.1
90159-C0049

NSP15#

(L)

 4
90159-60477

NSP15#

(J)

 4
52119D - SCREW, NO.1
90159-C0049

NSP15#

(L)

 4
90159-60477

NSP15#

(J)

 4
52127D - COVER, FRONT BUMPER HOLE, RH
52127-0D630

NSP151..4D..(G,N)

NO PAINT REQ.

 1
52127-0D610

NSP151..4D..R

NO PAINT REQ.

 1
52127D - COVER, FRONT BUMPER HOLE, RH
52127-0D630

NSP151..4D..(G,N)

NO PAINT REQ.

 1
52127-0D610

NSP151..4D..R

NO PAINT REQ.

 1
52128B - COVER, FRONT BUMPER HOLE, LH
52128-0D390

NSP151..4D..(G,N)

 1
52128-0D370

NSP151..4D..R

 1
52128B - COVER, FRONT BUMPER HOLE, LH
52128-0D390

NSP151..4D..(G,N)

 1
52128-0D370

NSP151..4D..R

 1
52161C - PIECE, FRONT BUMPER
52161-02040

NSP151

 3
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-0D110

NSP151

 1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-0D110

NSP151

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-0D090

NSP151

 1
52618 - ABSORBER, FRONT BUMPER, LOWER
52618-0D090

NSP151

 1
52721 - MOULDING, FRONT BUMPER EXTENSION, RH
52721-0D190

NSP151..4D..(G,N)

 1
52721-0D180

NSP151..4D..R

 1
53112E - GRILLE, RADIATOR, LOWER NO.1
53112-0D480

NSP151..4D..R

NO PAINT REQ.

 1
53112-0D520

NSP151..4D..(G,N)

NO PAINT REQ.

 1
53155G - SEAL, RADIATOR GRILLE
53155-0D050

NSP151..4D

 1
Common parts
90119-06355
90167-50063
90178-C0087
90179-06349
90189-06193
90189-C0015
90467-05170
90467-07215
90467-10216
90467-C0046
Linked diagrams
5102
5302
8119
