NSP151L-BEXRKC (2016)

Toyota Vios/Vios Fs (China)

Production Sep 2016 - Aug 2020
Engine 5NRF
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1609- )CVT

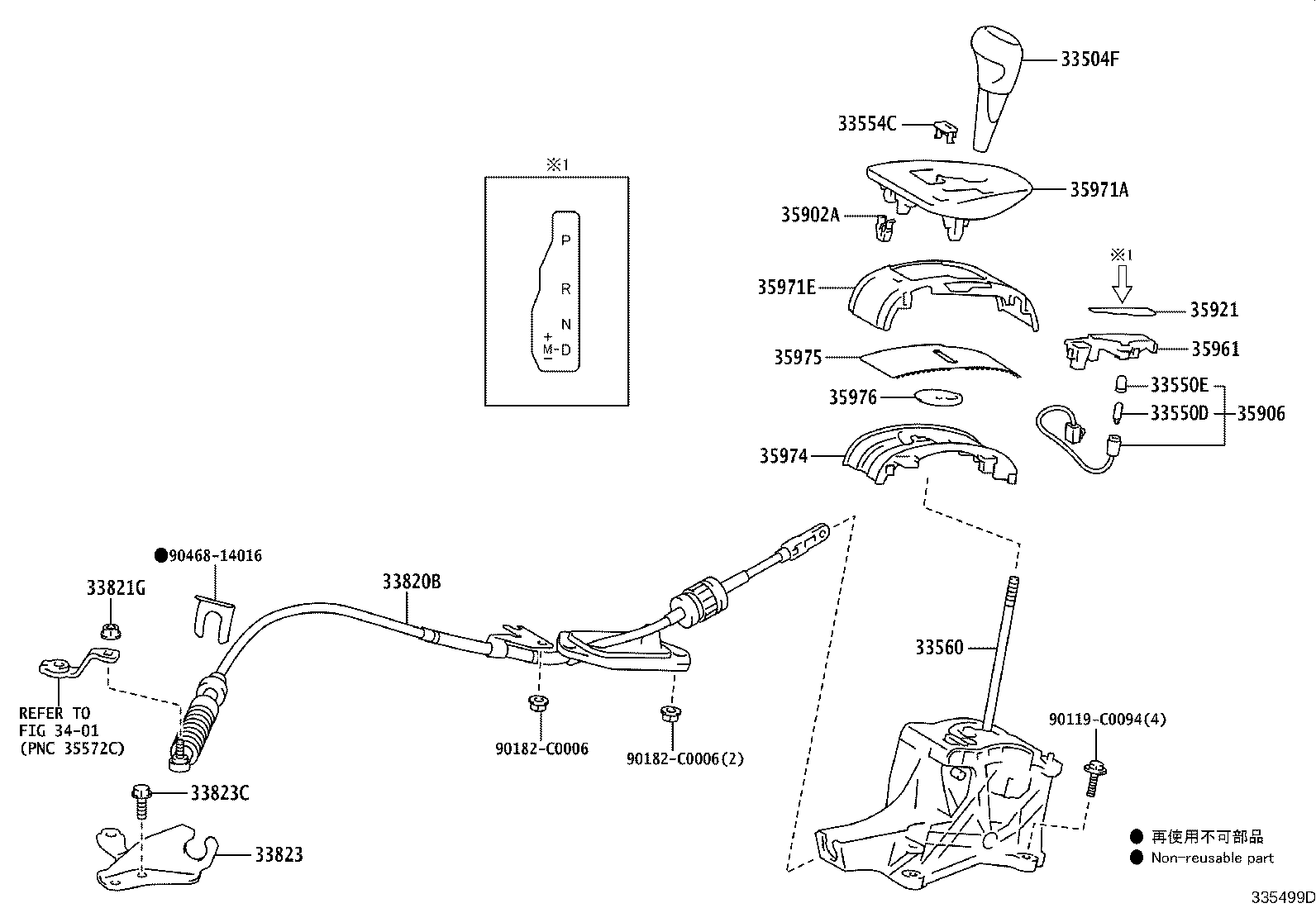

Click highlighted areas on diagram

diagram 33504F 33550D 33550E 33554C 33560 33820B 33821G 33823 33823C 3401 35902A 35906 35921 35961 35971A 35971E 35974 35975 35976 90119C0094 90182C0006 90182C0006 9046814016
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-0D350C0

NSP151..CVT..(N,R)

BLACK,TRIM0#,2#

 1
33550D - BULB, POSITION INDICATOR LAMP
90981-11018

NSP151..CVT

12V 1.2W W/O SOCKET

 1
33550E - CAP, POSITION INDICATOR LAMP
90339-04049

NSP151..CVT

 1
33554C - COVER, SHIFT LOCK RELEASE BUTTON
33554-0D190

NSP151..CVT..(G,N)

 1
33554-0D200

NSP151..CVT..R

 1
33560 - UNIT ASSY, SHIFT LOCK CONTROL
33560-0D130

NSP151..CVT

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-0D620

NSP151..CVT

 1
33821G - NUT (FOR TRANSMISSION CONTROL CABLE)
90178-C0014

NSP151..CVT

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-0D260

NSP151..CVT

 1
33823-0D170

NSP151..CVT

 1
33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
90119-C0212

NSP151..CVT

 2
35902A - CLIP, COVER SUB-ASSY, POSITION INDICATOR HOUSING
90467-10201

NSP151..CVT

 4
35906 - WIRE SUB-ASSY, INDICATOR LAMP
35906-0D100

NSP151..CVT

 1
35921 - PLATE, CONTROL POSITION INDICATOR
35921-0D140

NSP151..CVT

 1
35961 - HOUSING, POSITION INDICATOR LAMP
35961-0D090

NSP151..CVT

 1
35971A - HOUSING, POSITION INDICATOR, UPPER
35971-0D530

NSP151..CVT..R

 1
35971-0D510

NSP151..CVT..(G,N)

 1
35971E - HOUSING, POSITION INDICATOR
35971-0D520

NSP151..CVT

 1
35974 - HOUSING, POSITION INDICATOR, LOWER
35974-0D070

NSP151..CVT

 1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-0D100

NSP151..CVT

 1
35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
35976-0D120

NSP151..CVT

 1
Common parts
90119-C0094
90182-C0006
90468-14016
Linked diagrams
3401
