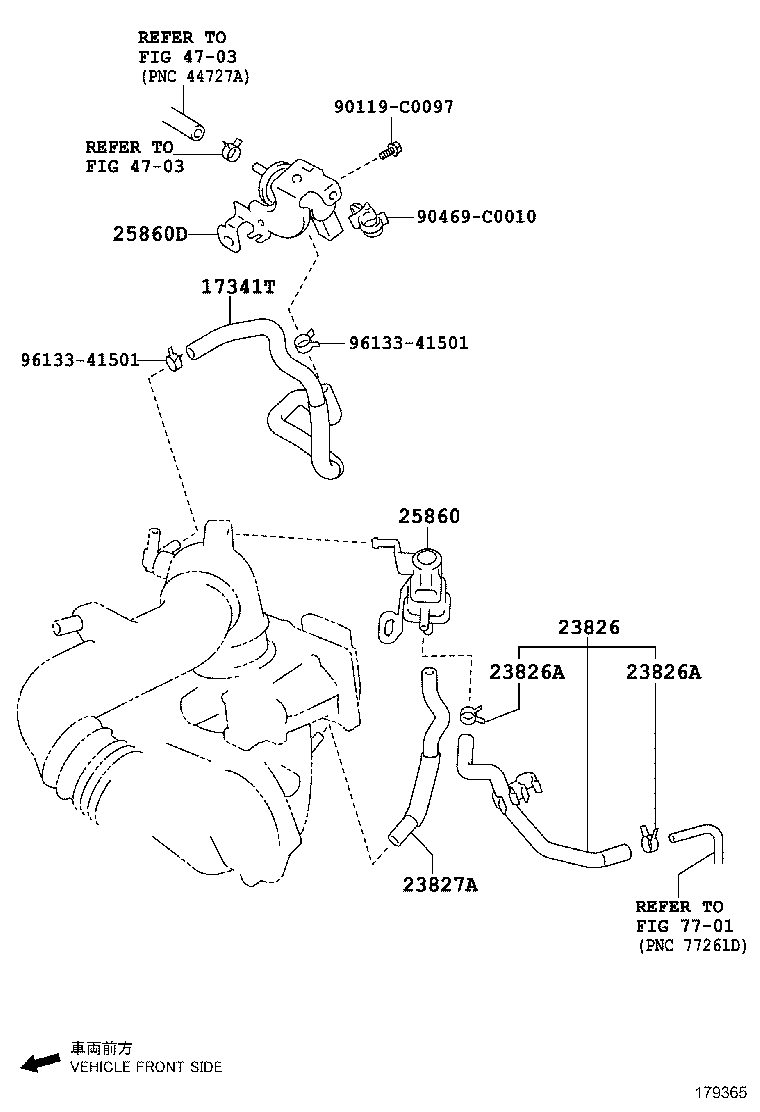

NSP151L-BEXRKC (2016)
Toyota Vios/Vios Fs (China)
(1609-1811)4NRFE,5NRF..CVT ; (1811- )4NRFE..CVT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17341T - HOSE, AIR, NO.1 | ||||
| 44726-0D030 |
5NRF..NSP151..CVT |
1 | ||
| 17341-0Y040 |
5NRF..NSP151..CVT |
1 | ||
| 23826 - HOSE, FUEL VAPOR FEED, NO.1 | ||||
| 23826-0Y130 |
5NRF..NSP151 |
1 | ||
| 23826-0Y300 |
5NRF..NSP151 EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 23826-0Y290 |
5NRF..NSP151 |
1 | ||
| 23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1) | ||||
| 90466-11003 |
5NRF..NSP151 |
2 | ||
| 23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1) | ||||
| 90466-11003 |
5NRF..NSP151 |
2 | ||
| 23827A - HOSE, FUEL VAPOR FEED, NO.2 | ||||
| 23827-0Y130 |
5NRF..NSP151 |
1 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 25860-0Y070 |
5NRF..NSP151 |
1 | ||
| 25860D - VALVE ASSY, VACUUM SWITCHING, NO.2 | ||||
| 25860-0Y170 |
5NRF..NSP151 |
1 | ||
| 25860-47090 |
5NRF..NSP151 EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 25860-0Y220 |
5NRF..NSP151 EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 25860-0Y050 |
5NRF..NSP151..CVT |
1 | ||
| Common parts | ||||
| 90119-C0097 | ||||
| 90469-C0010 | ||||
| 96133-41501 | ||||
| Linked diagrams | ||||
| 4703 | ||||
| 7701 | ||||

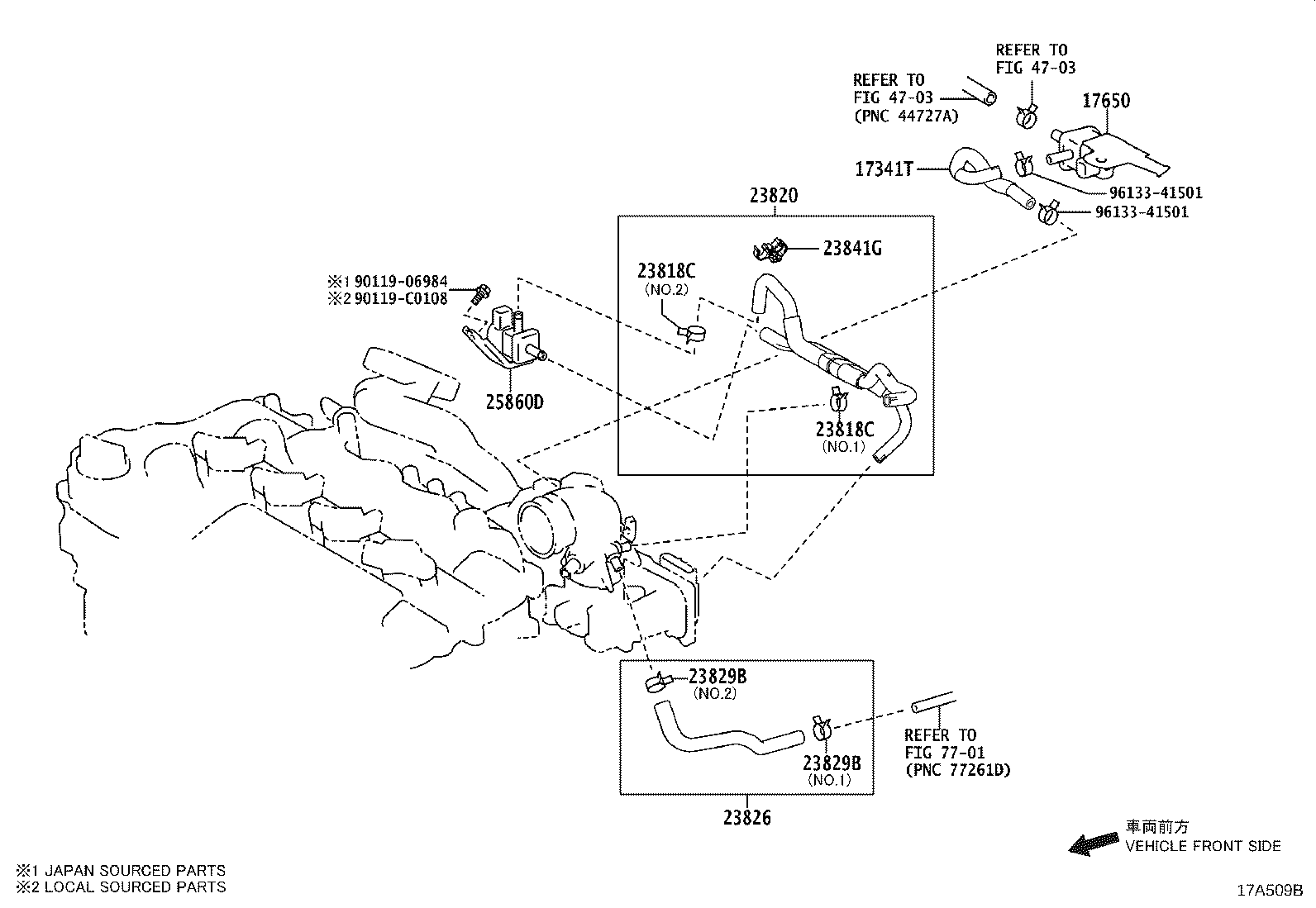

(1811- )5NRF..CVT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17341T - HOSE, AIR, NO.1 | ||||
| 44726-0D030 |
5NRF..NSP151..CVT |
1 | ||
| 17341-0Y040 |
5NRF..NSP151..CVT |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 25860-0Y160 |
5NRF..NSP151..CVT |
1 | ||
| 23818C - CLIP(FOR FUEL VAPOR FEED HOSE) | ||||
| 90467-16014 |
5NRF..NSP151 NO.1:REFER ILLUST. |
1 | ||
| 96132-51300 |
5NRF..NSP151 NO.2:REFER ILLUST. |
1 | ||
| 90467-16014 |
5NRF..NSP151 EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS),NO.1 & NO.2:REF ILL. |
2 | ||
| 23818C - CLIP(FOR FUEL VAPOR FEED HOSE) | ||||
| 90467-16014 |
5NRF..NSP151 NO.1:REFER ILLUST. |
1 | ||
| 96132-51300 |
5NRF..NSP151 NO.2:REFER ILLUST. |
1 | ||
| 90467-16014 |
5NRF..NSP151 EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS),NO.1 & NO.2:REF ILL. |
2 | ||
| 23820 - HOSE ASSY, FUEL VAPOR FEED | ||||
| 23820-0Y040 |
5NRF..NSP151 |
1 | ||
| 23820-0Y070 |
5NRF..NSP151 EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 23826 - HOSE, FUEL VAPOR FEED, NO.1 | ||||
| 23826-0Y130 |
5NRF..NSP151 |
1 | ||
| 23826-0Y300 |
5NRF..NSP151 EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 23826-0Y290 |
5NRF..NSP151 |
1 | ||
| 23829B - CLIP(FOR FUEL VAPOR FEED HOSE) | ||||
| 96132-51300 |
5NRF..NSP151 NO.1:REFER ILLUST. |
1 | ||
| 90467-16014 |
5NRF..NSP151 EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS),NO.1 & NO.2:REF ILL. |
2 | ||
| 90467-16014 |
5NRF..NSP151 NO.2:REFER ILLUST. |
1 | ||
| 23829B - CLIP(FOR FUEL VAPOR FEED HOSE) | ||||
| 96132-51300 |
5NRF..NSP151 NO.1:REFER ILLUST. |
1 | ||
| 90467-16014 |
5NRF..NSP151 EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS),NO.1 & NO.2:REF ILL. |
2 | ||
| 90467-16014 |
5NRF..NSP151 NO.2:REFER ILLUST. |
1 | ||
| 23841G - CLAMP, FUEL HOSE | ||||
| 23841-0Y091 |
5NRF..NSP151 |
1 | ||
| 23841-0Y101 |
5NRF..NSP151 EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 25860D - VALVE ASSY, VACUUM SWITCHING, NO.2 | ||||
| 25860-0Y170 |
5NRF..NSP151 |
1 | ||
| 25860-47090 |
5NRF..NSP151 EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 25860-0Y220 |
5NRF..NSP151 EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 25860-0Y050 |
5NRF..NSP151..CVT |
1 | ||
| Common parts | ||||
| 90119-06984 | ||||
| 90119-C0108 | ||||
| 96133-41501 | ||||
| Linked diagrams | ||||
| 4703 | ||||
| 7701 | ||||
