NSP151L-BEXRKC (2016)
Toyota Vios/Vios Fs (China)

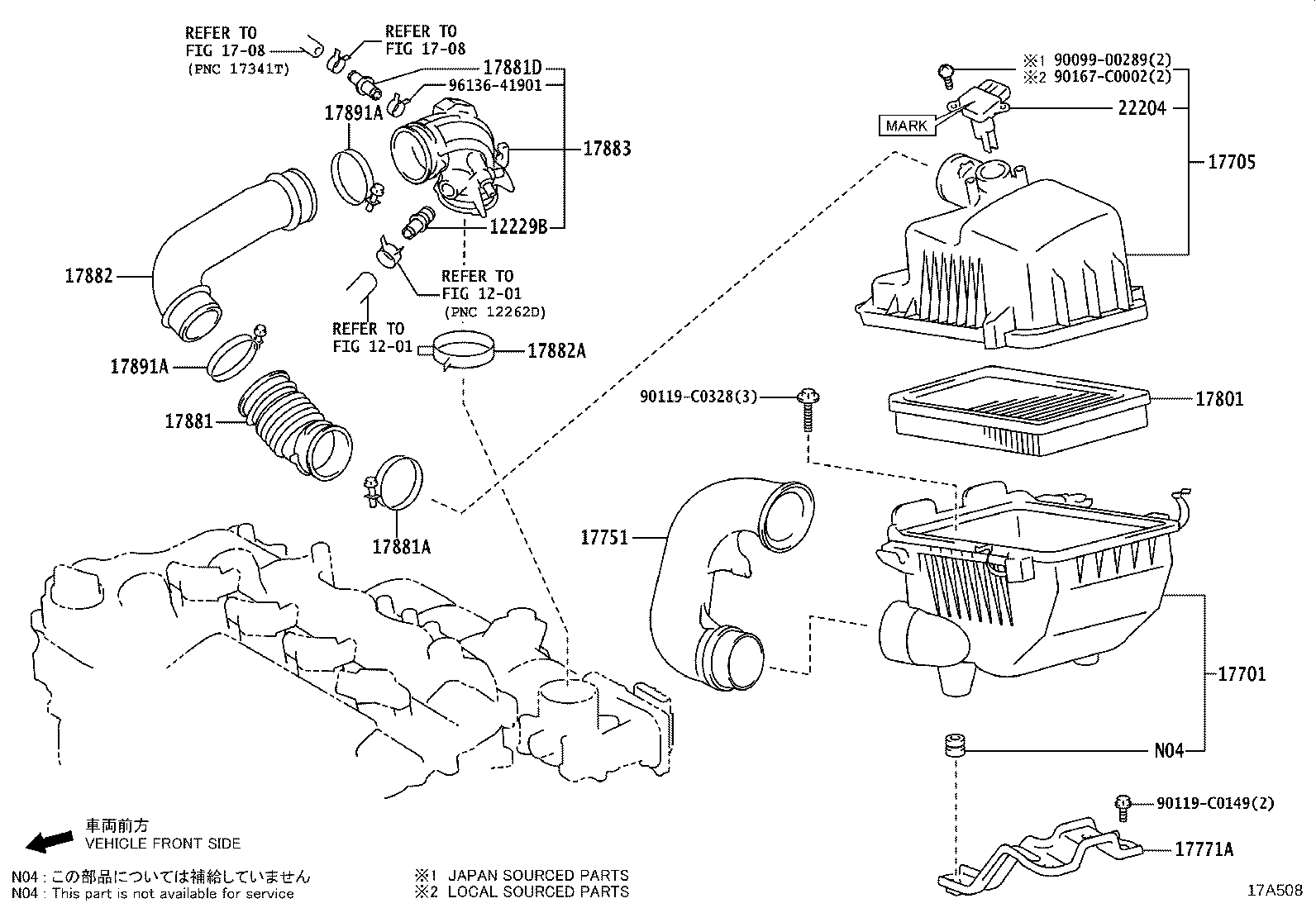

(1609-1811)4NRFE,5NRF..CVT ; (1811- )4NRFE..CVT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12229B - PIPE, VENTILATION, NO.1 | ||||
| 12229-0T010 |
5NRF..NSP151 |
1 | ||
| 12229-0Y130 |
5NRF..NSP151..CVT |
1 | ||
| 12229C - PIPE, VENTILATION, NO.2 | ||||
| 12229-0Y210 |
5NRF..NSP151..CVT |
1 | ||
| 17343D - HOSE, AIR, NO.3 | ||||
| 17343-0Y060 |
5NRF..NSP151..CVT |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-0Y160 |
5NRF..NSP151 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-0Y320 |
5NRF..NSP151 EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 17705-0Y210 |
5NRF..NSP151 |
1 | ||
| 17751 - INLET, AIR CLEANER, NO.1 | ||||
| 17751-0Y180 |
5NRF..NSP151 |
1 | ||
| 17771A - BRACKET, AIR CLEANER | ||||
| 17771-0Y010 |
5NRF..NSP151 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-0Y050 |
5NRF..NSP151 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-0Y270 |
5NRF..NSP151..CVT |
1 | ||
| 17881-0Y150 |
5NRF..NSP151..CVT |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10690 |
5NRF..NSP151 |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-0Y210 |
5NRF..NSP151 EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 17882-0Y200 |
5NRF..NSP151 |
1 | ||
| 17882-0Y110 |
5NRF..NSP151..CVT |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90466-62002 |
5NRF..NSP151 (J) |
1 | ||
| 90466-C0019 |
5NRF..NSP151 (L) |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17883-0Y010 |
5NRF..NSP151..CVT |
1 | ||
| 17883-0Y180 |
5NRF..NSP151..CVT |
1 | ||
| 17891A - CLAMP, AIR CLEANER HOSE | ||||
| 96111-10730 |
5NRF..NSP151 |
2 | ||
| 17891A - CLAMP, AIR CLEANER HOSE | ||||
| 96111-10730 |
5NRF..NSP151 |
2 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-0V020 |
5NRF..NSP151 MARK 22204-0V020 |
1 | ||
| 22204-0T040 |
5NRF..NSP151 MARK 22204-0T040 |
1 | ||
| 22204-28010 |
5NRF..NSP151 MARK 22204-28010 |
1 | ||
| Common parts | ||||
| 90099-00289 | ||||
| 90119-C0149 | ||||
| 90119-C0328 | ||||
| 90167-C0002 | ||||
| 96133-41501 | ||||
| 96136-41901 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 1708 | ||||

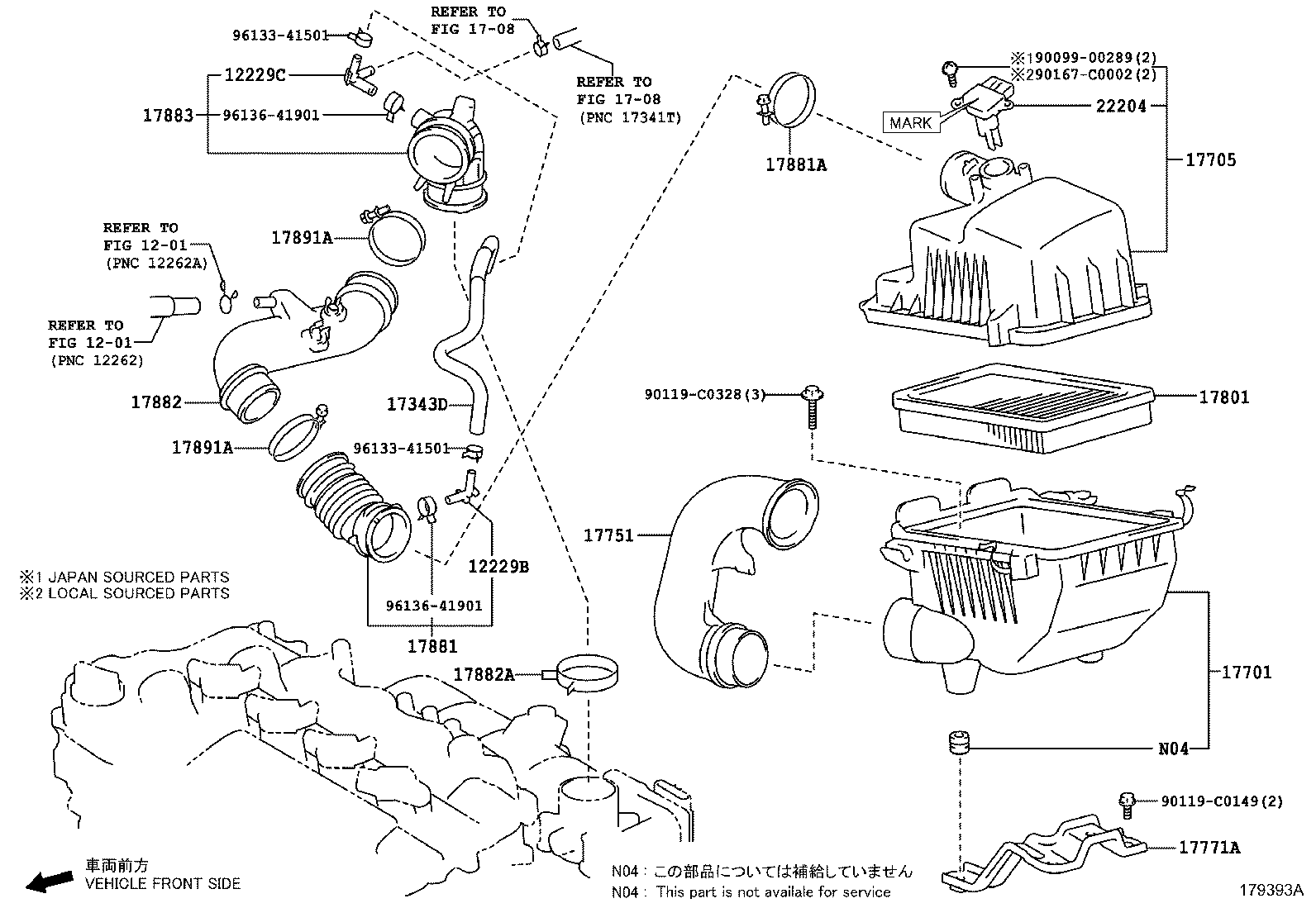

(1811- )5NRF..CVT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12229B - PIPE, VENTILATION, NO.1 | ||||
| 12229-0T010 |
5NRF..NSP151 |
1 | ||
| 12229-0Y130 |
5NRF..NSP151..CVT |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-0Y160 |
5NRF..NSP151 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-0Y320 |
5NRF..NSP151 EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 17705-0Y210 |
5NRF..NSP151 |
1 | ||
| 17751 - INLET, AIR CLEANER, NO.1 | ||||
| 17751-0Y180 |
5NRF..NSP151 |
1 | ||
| 17771A - BRACKET, AIR CLEANER | ||||
| 17771-0Y010 |
5NRF..NSP151 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-0Y050 |
5NRF..NSP151 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-0Y270 |
5NRF..NSP151..CVT |
1 | ||
| 17881-0Y150 |
5NRF..NSP151..CVT |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10690 |
5NRF..NSP151 |
1 | ||
| 17881D - TUBE, UNION(FOG AIR CLEANER HOSE) | ||||
| 12229-0Y070 |
5NRF..NSP151..CVT |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-0Y210 |
5NRF..NSP151 EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 17882-0Y200 |
5NRF..NSP151 |
1 | ||
| 17882-0Y110 |
5NRF..NSP151..CVT |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90466-62002 |
5NRF..NSP151 (J) |
1 | ||
| 90466-C0019 |
5NRF..NSP151 (L) |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17883-0Y010 |
5NRF..NSP151..CVT |
1 | ||
| 17883-0Y180 |
5NRF..NSP151..CVT |
1 | ||
| 17891A - CLAMP, AIR CLEANER HOSE | ||||
| 96111-10730 |
5NRF..NSP151 |
2 | ||
| 17891A - CLAMP, AIR CLEANER HOSE | ||||
| 96111-10730 |
5NRF..NSP151 |
2 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-0V020 |
5NRF..NSP151 MARK 22204-0V020 |
1 | ||
| 22204-0T040 |
5NRF..NSP151 MARK 22204-0T040 |
1 | ||
| 22204-28010 |
5NRF..NSP151 MARK 22204-28010 |
1 | ||
| Common parts | ||||
| 90099-00289 | ||||
| 90119-C0149 | ||||
| 90119-C0328 | ||||
| 90167-C0002 | ||||
| 96136-41901 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 1708 | ||||
