NSP151L-BEXRKC (2016)
Toyota Vios/Vios Fs (China)
Production
Sep 2016
-
Aug 2020
Engine
5NRF
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1311-1811) ; (1811- )4NRFE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17111 - MANIFOLD, INTAKE | ||||
| 17101-0Y120 |
5NRF..NSP151 |
1 | ||
| 17101-0Y090 |
5NRF..NSP151 |
1 | ||
| 17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD) | ||||
| 90126-C0005 |
5NRF..NSP151 |
2 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-0Y011 |
5NRF..NSP151 (L) |
1 | ||
| 17118-47011 |
5NRF..NSP151 (J) |
1 | ||
| 17141K - BOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD) | ||||
| 90126-C0004 |
5NRF..NSP151 |
5 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-0Y070 |
5NRF..NSP151 |
1 | ||
| 17167-0Y010 |
5NRF..NSP151 |
1 | ||
| 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 | ||||
| 17168-0Y010 |
5NRF..NSP151 |
1 | ||
| 17168-0Y080 |
5NRF..NSP151 |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-0Y020 |
5NRF..NSP151 |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-0Y010 |
5NRF..NSP151 |
1 | ||
| 25051 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD | ||||
| 25051-0Y020 |
5NRF..NSP151 |
1 | ||
| 25051-0Y190 |
5NRF..NSP151 |
1 | ||
| Common parts | ||||
| 90119-08D36 | ||||
| 90119-C0084 | ||||
| 90119-C0125 | ||||
| 90119-C0133 | ||||
| 90178-C0034 | ||||
| 90178-C0048 | ||||
| 90179-08101 | ||||
| 90201-06043 | ||||
| 90201-08011 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 1703 | ||||
| 2211 | ||||

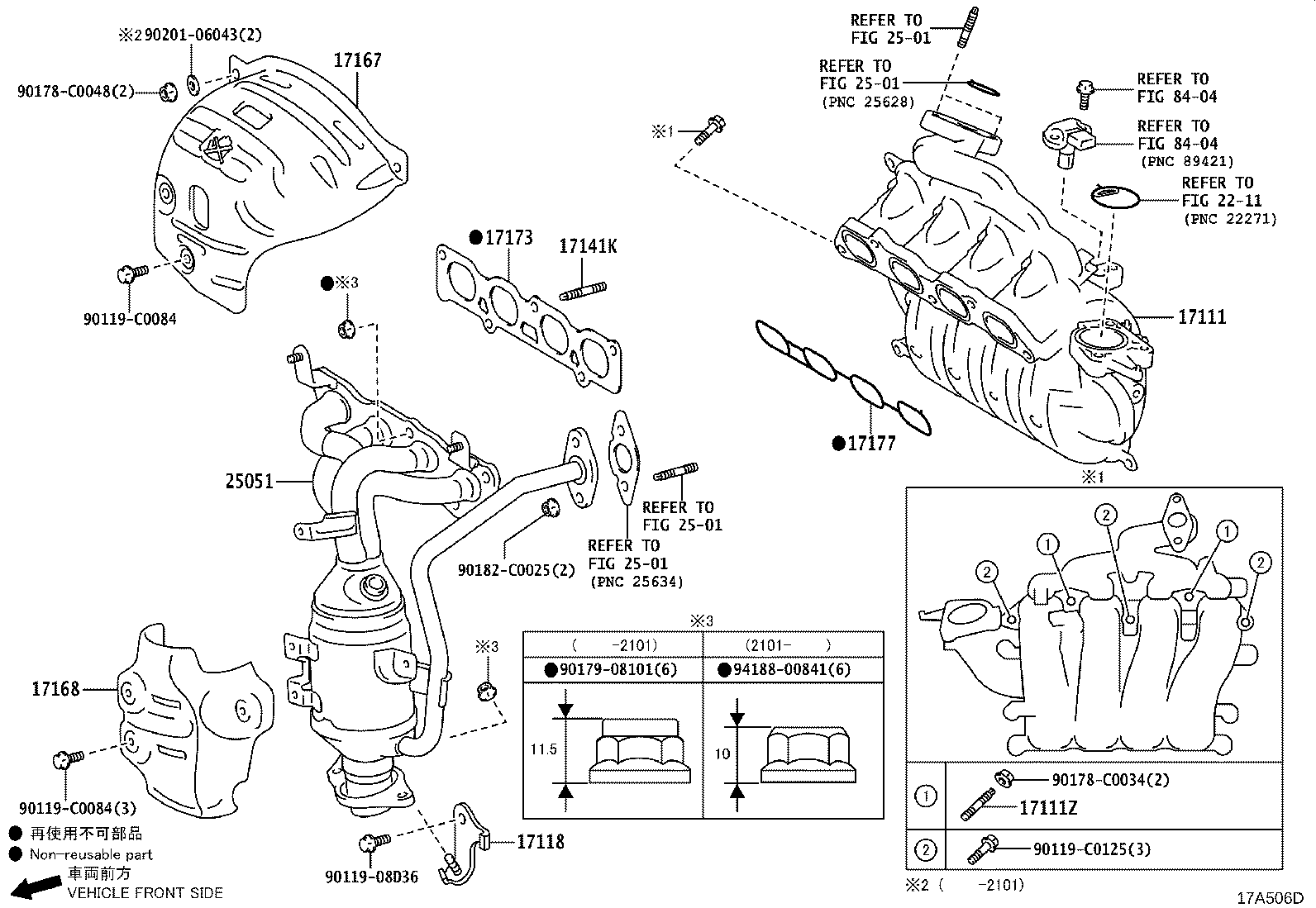

(1811- )5NRF
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17111 - MANIFOLD, INTAKE | ||||
| 17101-0Y120 |
5NRF..NSP151 |
1 | ||
| 17101-0Y090 |
5NRF..NSP151 |
1 | ||
| 17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD) | ||||
| 90126-C0005 |
5NRF..NSP151 |
2 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-0Y011 |
5NRF..NSP151 (L) |
1 | ||
| 17118-47011 |
5NRF..NSP151 (J) |
1 | ||
| 17141K - BOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD) | ||||
| 90126-C0004 |
5NRF..NSP151 |
5 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-0Y070 |
5NRF..NSP151 |
1 | ||
| 17167-0Y010 |
5NRF..NSP151 |
1 | ||
| 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 | ||||
| 17168-0Y010 |
5NRF..NSP151 |
1 | ||
| 17168-0Y080 |
5NRF..NSP151 |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-0Y020 |
5NRF..NSP151 |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-0Y010 |
5NRF..NSP151 |
1 | ||
| 25051 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD | ||||
| 25051-0Y020 |
5NRF..NSP151 |
1 | ||
| 25051-0Y190 |
5NRF..NSP151 |
1 | ||
| Common parts | ||||
| 90119-08D36 | ||||
| 90119-C0084 | ||||
| 90119-C0125 | ||||
| 90178-C0034 | ||||
| 90178-C0048 | ||||
| 90179-08101 | ||||
| 90182-C0025 | ||||
| 90201-06043 | ||||
| 94188-00841 | ||||
| Linked diagrams | ||||
| 2211 | ||||
| 2501 | ||||
| 8404 | ||||
