NSP151L-BEXRKC (2016)

Toyota Vios/Vios Fs (China)

Production Sep 2016 - Aug 2020
Engine 5NRF
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

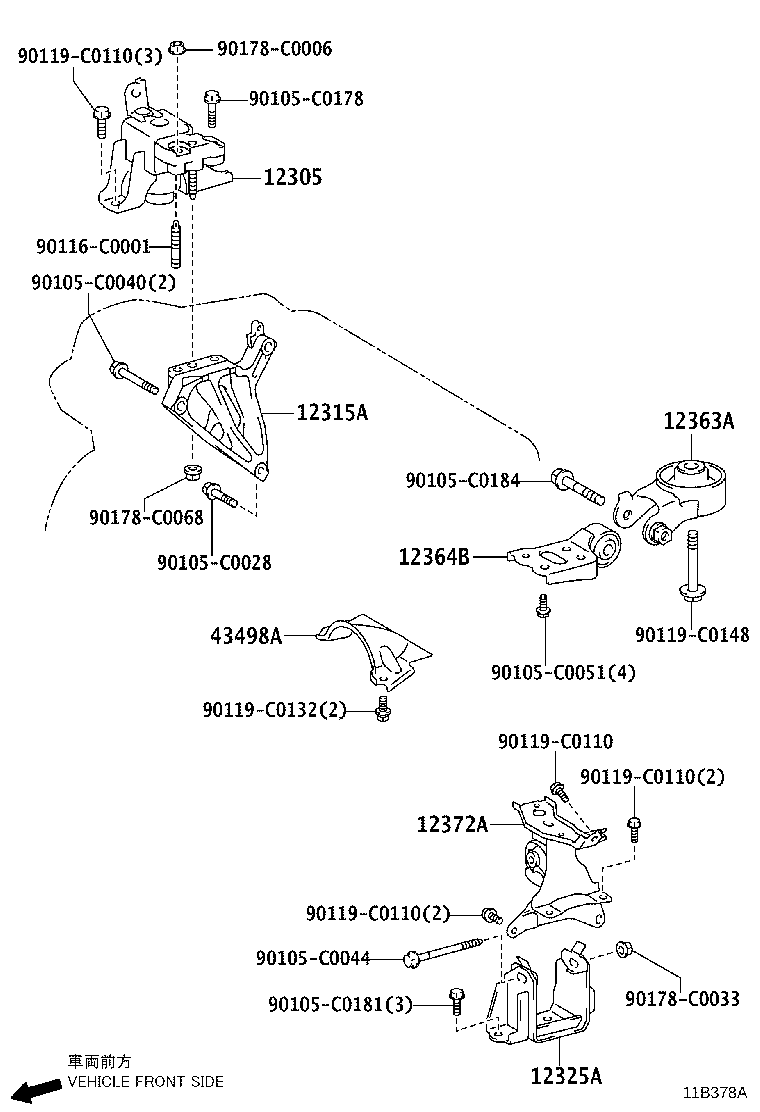

(1609-1811)4NRFE,5NRF..CVT ; (1811- )4NRFE..CVT

Click highlighted areas on diagram

diagram 12305 12315A 12325A 12363A 12364B 12372A 43498A 90105C0028 90105C0040 90105C0044 90105C0051 90105C0178 90105C0181 90105C0184 90116C0001 90119C0110 90119C0110 90119C0110 90119C0110 90119C0132 90119C0148 90178C0006 90178C0033 90178C0068
Part # Description Qty Price
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-0Y100

5NRF..NSP151

 1
12305-0Y240

5NRF..NSP151

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-0Y040

5NRF..NSP151

EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)

 1
12315-0Y040

5NRF..NSP151

EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)

 1
12315-0Y040

5NRF..NSP151

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-0Y251

5NRF..NSP151..CVT

 1
12325-0Y250

4NRFE,5NRF..NSP15#..CVT

 1
12363A - ROD, ENGINE MOVING CONTROL
12363-0Y180

5NRF..NSP151..CVT

 1
12364B - ROD, ENGINE MOVING CONTROL, NO.2
12364-0Y090

5NRF..NSP151..CVT

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-0Y220

5NRF..NSP151..CVT

 1
43498A - INSULATOR, DRIVE SHAFT HEAT, NO.1
43498-0D100

NSP151

 1
43498-0D250

NSP151

 1
Common parts
90105-C0028
90105-C0040
90105-C0044
90105-C0051
90105-C0178
90105-C0181
90105-C0184
90116-C0001
90119-C0110
90119-C0132
90119-C0148
90178-C0006
90178-C0033
90178-C0068

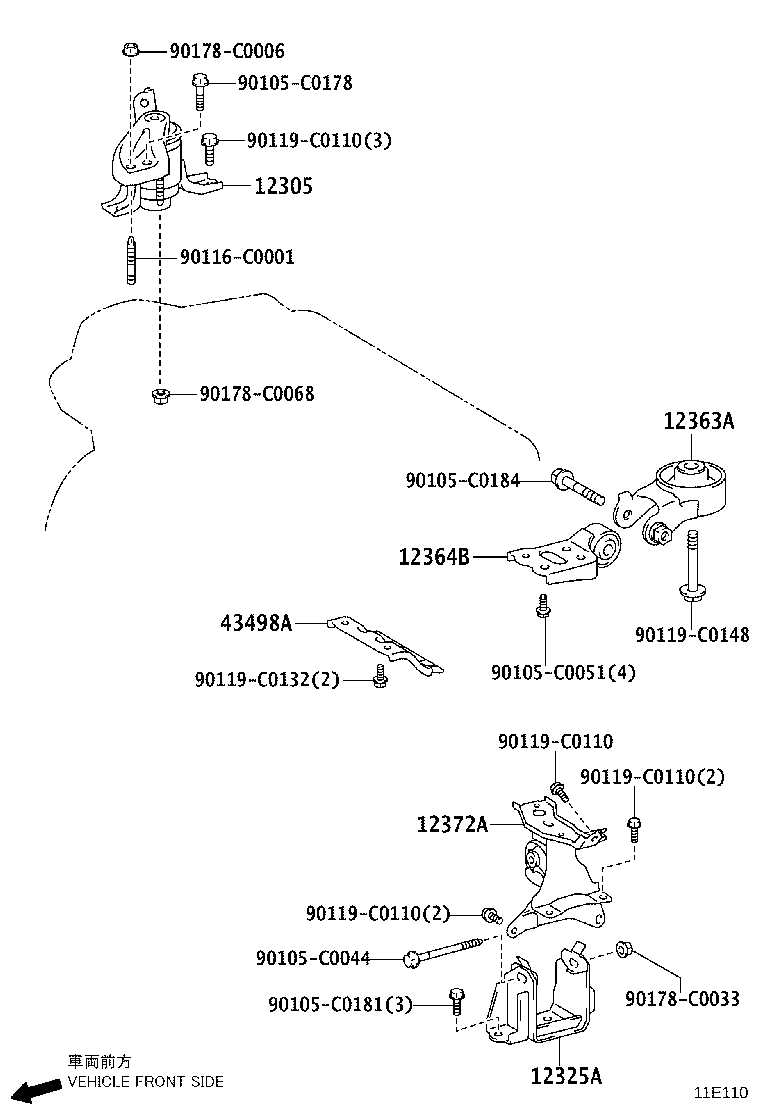

(1811- )5NRF..CVT

Click highlighted areas on diagram

diagram 12305 12325A 12363A 12364B 12372A 43498A 90105C0044 90105C0051 90105C0178 90105C0181 90105C0184 90116C0001 90119C0110 90119C0110 90119C0110 90119C0110 90119C0132 90119C0148 90178C0006 90178C0033 90178C0068
Part # Description Qty Price
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-0Y100

5NRF..NSP151

 1
12305-0Y240

5NRF..NSP151

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-0Y251

5NRF..NSP151..CVT

 1
12325-0Y250

4NRFE,5NRF..NSP15#..CVT

 1
12363A - ROD, ENGINE MOVING CONTROL
12363-0Y180

5NRF..NSP151..CVT

 1
12364B - ROD, ENGINE MOVING CONTROL, NO.2
12364-0Y090

5NRF..NSP151..CVT

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-0Y220

5NRF..NSP151..CVT

 1
43498A - INSULATOR, DRIVE SHAFT HEAT, NO.1
43498-0D100

NSP151

 1
43498-0D250

NSP151

 1
Common parts
90105-C0044
90105-C0051
90105-C0178
90105-C0181
90105-C0184
90116-C0001
90119-C0110
90119-C0132
90119-C0148
90178-C0006
90178-C0033
90178-C0068
