NSP151L-BEPRKC (2014)

Toyota Vios/Vios Fs (China)

Production Mar 2014 - Sep 2016
Engine 5NRF
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1311-1609)

Click highlighted areas on diagram

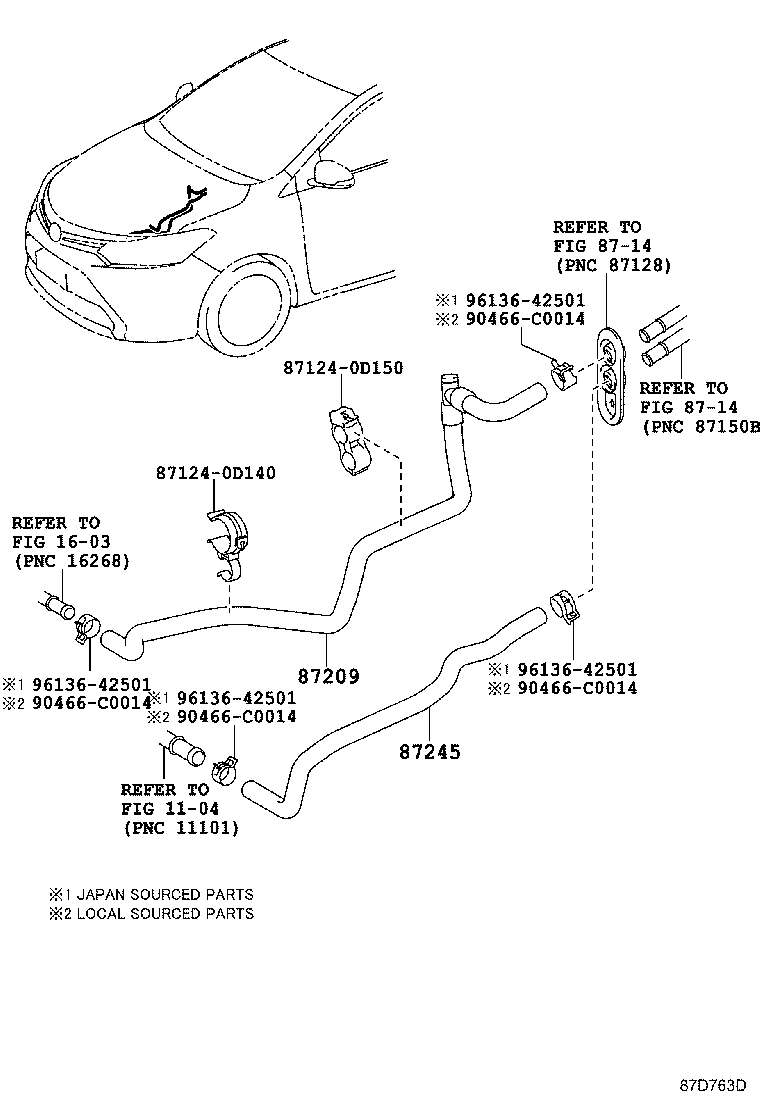

diagram 1104 1603 871240D140 871240D150 8714 8714 87209 87245 90466C0014 90466C0014 90466C0014 90466C0014 9613642501 9613642501 9613642501 9613642501
Part # Description Qty Price
87209 - HOSE SUB-ASSY, WATER
87209-0D240

NSP15#

 1
87245 - HOSE, HEATER WATER, INLET
87245-0D480

NSP15#

 1
Common parts
87124-0D140
87124-0D150
90466-C0014
96136-42501
Linked diagrams
1104
1603
8714
