NSP151L-BEMRKC (2014)

Toyota Vios/Vios Fs (China)

Production Mar 2014 - Sep 2016
Engine 5NRF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

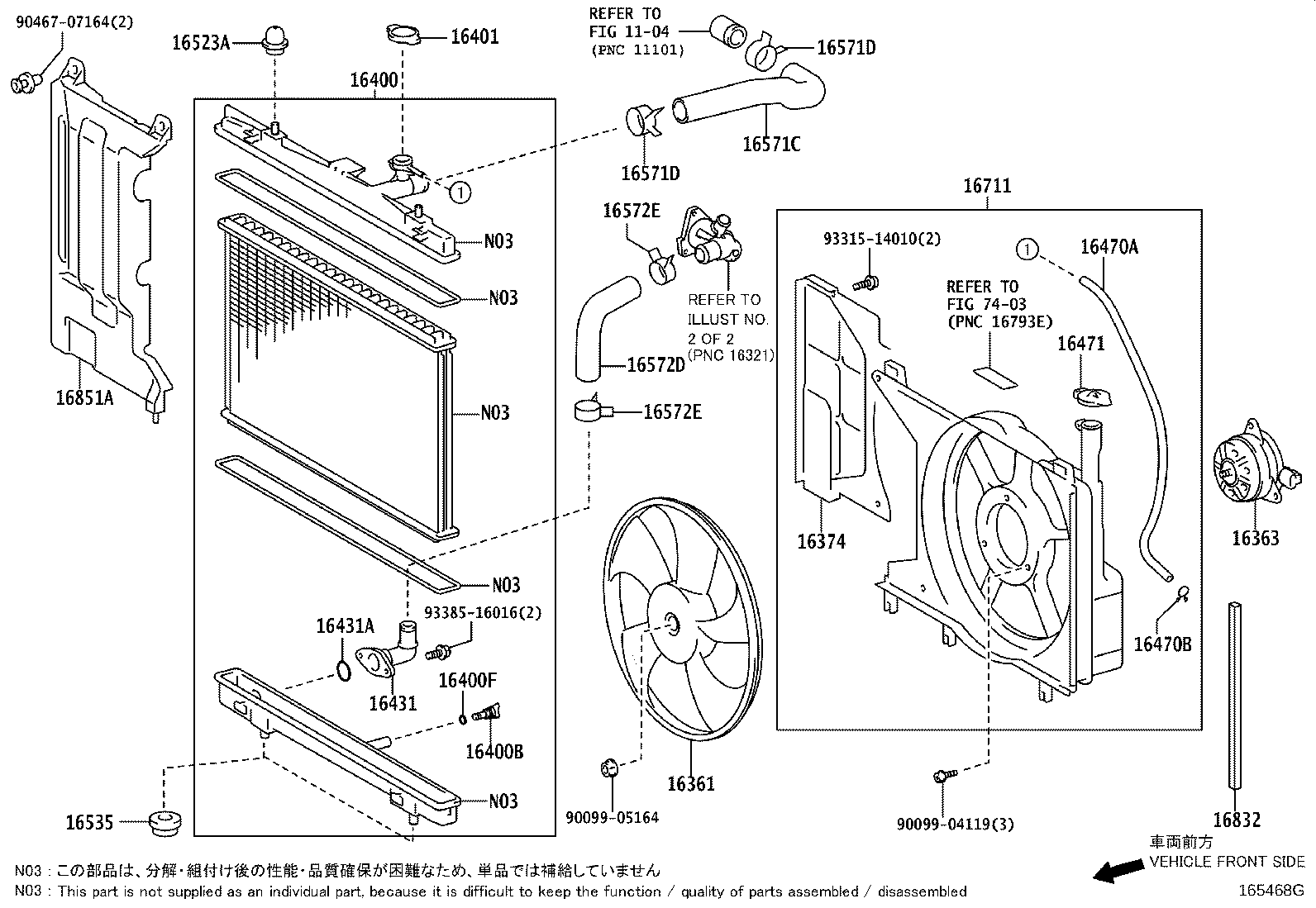

ILLUST NO. 1 OF 2(1311-1609)4NRFE,5NRF..5F

Click highlighted areas on diagram

diagram 1104 16361 16363 16374 16400 16400B 16400F 16401 16431 16431A 16470A 16470B 16471 16523A 16535 16571C 16571D 16571D 16572D 16572E 16572E 16711 16832 16851A 7403 9009904119 9009905164 9046707164 9331514010 9338516016
Part # Description Qty Price
16361 - FAN
16361-0Y040

4NRFE,5NRF..NSP15#

 1
16363 - MOTOR, COOLING FAN
16363-0Y030

4NRFE,5NRF..NSP15#

 1
16374 - INSULATOR, COOLING FAN MOTOR
16366-0Y070

4NRFE,5NRF..NSP15#

 1
16400 - RADIATOR ASSY
16400-0Y080

4NRFE,5NRF..NSP15#..5F

 1
16400B - PLUG, RADIATOR DRAIN COCK
16417-0H290

4NRFE,5NRF..NSP15#

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16492-21050

4NRFE,5NRF..NSP15#

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-0Y060

4NRFE,5NRF..NSP15#

 1
16431 - INLET, RADIATOR WATER
16431-0Y090

4NRFE,5NRF..NSP15#

 1
16431A - RING, O(FOR RADIATOR WATER INLET)
16492-0Y090

4NRFE,5NRF..NSP15#

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16377-0Y070

4NRFE,5NRF..NSP15#

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

4NRFE,5NRF..NSP15#

 1
16471 - CAP SUB-ASSY, RESERVE TANK
16471-0T010

4NRFE,5NRF..NSP15#

 1
16523A - CUSHION, RADIATOR SUPPORT
16523-0M060

4NRFE,5NRF..NSP15#

 2
16535 - SUPPORT, RADIATOR, LOWER
90480-22025

4NRFE,5NRF..NSP15#

 2
16571C - HOSE, RADIATOR, NO.1
16571-0Y090

4NRFE,5NRF..NSP15#

 1
16571D - CLIP, RADIATOR HOSE, NO.1
90466-C0008

4NRFE,5NRF..NSP15#

(L)

 2
96136-43901

4NRFE,5NRF..NSP15#

(J)

 2
16571D - CLIP, RADIATOR HOSE, NO.1
90466-C0008

4NRFE,5NRF..NSP15#

(L)

 2
96136-43901

4NRFE,5NRF..NSP15#

(J)

 2
16572D - HOSE, RADIATOR, NO.2
16572-0Y070

4NRFE,5NRF..NSP15#

 1
16572E - CLIP, RADIATOR HOSE, NO.2
90466-C0008

4NRFE,5NRF..NSP15#

(L)

 2
96136-43901

4NRFE,5NRF..NSP15#

(J)

 2
16572E - CLIP, RADIATOR HOSE, NO.2
90466-C0008

4NRFE,5NRF..NSP15#

(L)

 2
96136-43901

4NRFE,5NRF..NSP15#

(J)

 2
16711 - SHROUD, FAN
16711-0Y050

4NRFE,5NRF..NSP15#

 1
16832 - SEAL, FAN SHROUD
16561-0Y040

4NRFE,5NRF..NSP15#

 1
16851A - COVER, SHROUD SIDE
16851-0Y010

4NRFE,5NRF..NSP15#

 1
Common parts
90099-04119
90099-05164
90467-07164
93315-14010
93385-16016
Linked diagrams
1104
7403

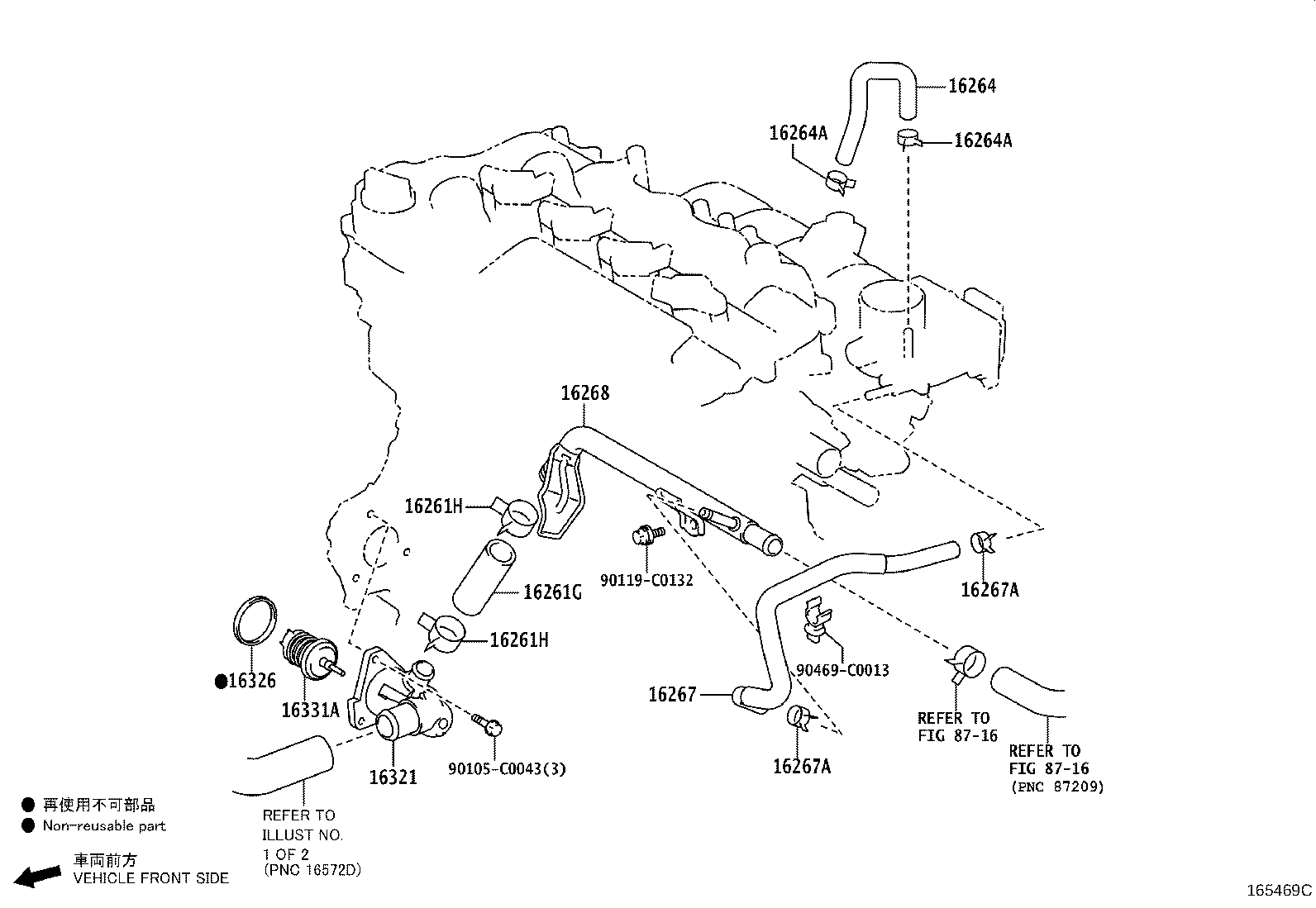

ILLUST NO. 2 OF 2(1311-1811)4NRFE,5NRF..4FC,5F ; (1811- )4NRFE..5F

Click highlighted areas on diagram

diagram 16261G 16261H 16261H 16264 16264A 16264A 16267 16267A 16267A 16268 16321 16326 16331A 8716 8716 90105C0043 90119C0132 90469C0013
Part # Description Qty Price
16261G - HOSE, WATER BY-PASS, NO.1
16261-0Y070

4NRFE,5NRF..NSP15#

 1
16261H - CLIP(FOR WATER BY-PASS HOSE NO.1)
96136-42901

4NRFE,5NRF..NSP15#

 2
16261H - CLIP(FOR WATER BY-PASS HOSE NO.1)
96136-42901

4NRFE,5NRF..NSP15#

 2
16264 - HOSE, WATER BY-PASS, NO.2
16264-0Y050

4NRFE,5NRF..NSP15#

 1
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
96136-41501

4NRFE,5NRF..NSP15#

 2
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
96136-41501

4NRFE,5NRF..NSP15#

 2
16267 - HOSE, WATER BY-PASS, NO.3
16267-0Y010

4NRFE,5NRF..NSP15#

 1
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
96136-41501

4NRFE,5NRF..NSP15#

 2
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
96136-41501

4NRFE,5NRF..NSP15#

 2
16268 - PIPE, WATER BY-PASS, NO.1
16268-0Y020

4NRFE,5NRF..NSP15#

 1
16321 - INLET, WATER
16321-47011

4NRFE,5NRF..NSP15#

 1
16326 - GASKET, WATER INLET HOUSING, NO.2
16326-47010

4NRFE,5NRF..NSP15#

 1
16326-47020

4NRFE,5NRF..NSP15#

 1
16331A - THERMOSTAT
90916-03147

4NRFE,5NRF..NSP15#

*WAX 82-95

 1
Common parts
90105-C0043
90119-C0132
90469-C0013
Linked diagrams
8716
