NSP151L-BEMRKC (2014)

Toyota Vios/Vios Fs (China)

Production Mar 2014 - Sep 2016
Engine 5NRF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1311-1609)4NRFE,5NRF..5F

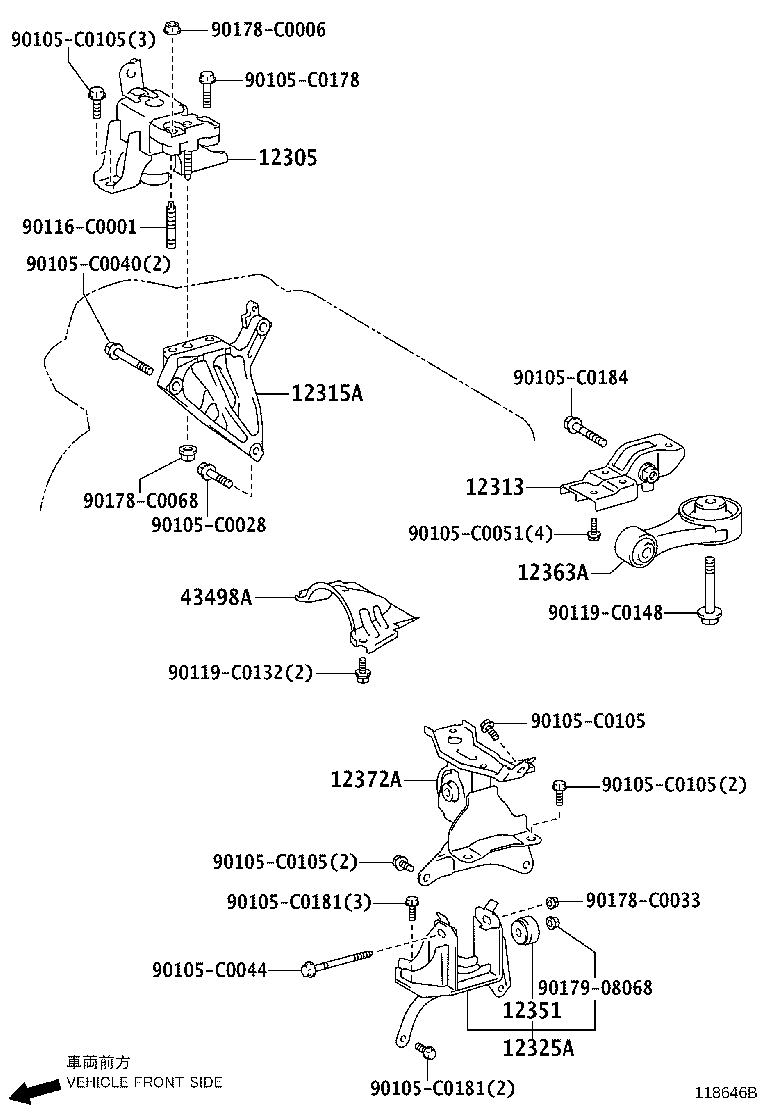

Click highlighted areas on diagram

diagram 12305 12313 12315A 12325A 12351 12363A 12372A 43498A 90105C0028 90105C0040 90105C0044 90105C0051 90105C0105 90105C0105 90105C0105 90105C0105 90105C0178 90105C0181 90105C0181 90105C0184 90116C0001 90119C0132 90119C0148 90178C0006 90178C0033 90178C0068 9017908068
Part # Description Qty Price
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-0Y100

4NRFE,5NRF..NSP15#

 1
12313 - BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE)
12313-0Y050

4NRFE,5NRF..NSP15#..5F

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-0Y030

4NRFE,5NRF..NSP15#

 1
12315-0Y040

4NRFE,5NRF..NSP15#

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12304-0Y090

4NRFE,5NRF..NSP15#..5F

 1
12351 - DAMPER, ENGINE MOUNTING
12351-0Y050

4NRFE,5NRF..NSP15#..5F

 1
12363A - ROD, ENGINE MOVING CONTROL
12363-0Y060

4NRFE,5NRF..NSP15#..5F

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-0Y100

4NRFE,5NRF..NSP15#..5F

 1
43498A - INSULATOR, DRIVE SHAFT HEAT, NO.1
43498-0D100

NSP15#

 1
Common parts
90105-C0028
90105-C0040
90105-C0044
90105-C0051
90105-C0105
90105-C0178
90105-C0181
90105-C0184
90116-C0001
90119-C0132
90119-C0148
90178-C0006
90178-C0033
90178-C0068
90179-08068
