NSP150L-BHMRKC (2017)
Toyota Vios/Vios Fs (China)
Production
Mar 2017
-
Apr 2020
Engine
4NRFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1703- )5D

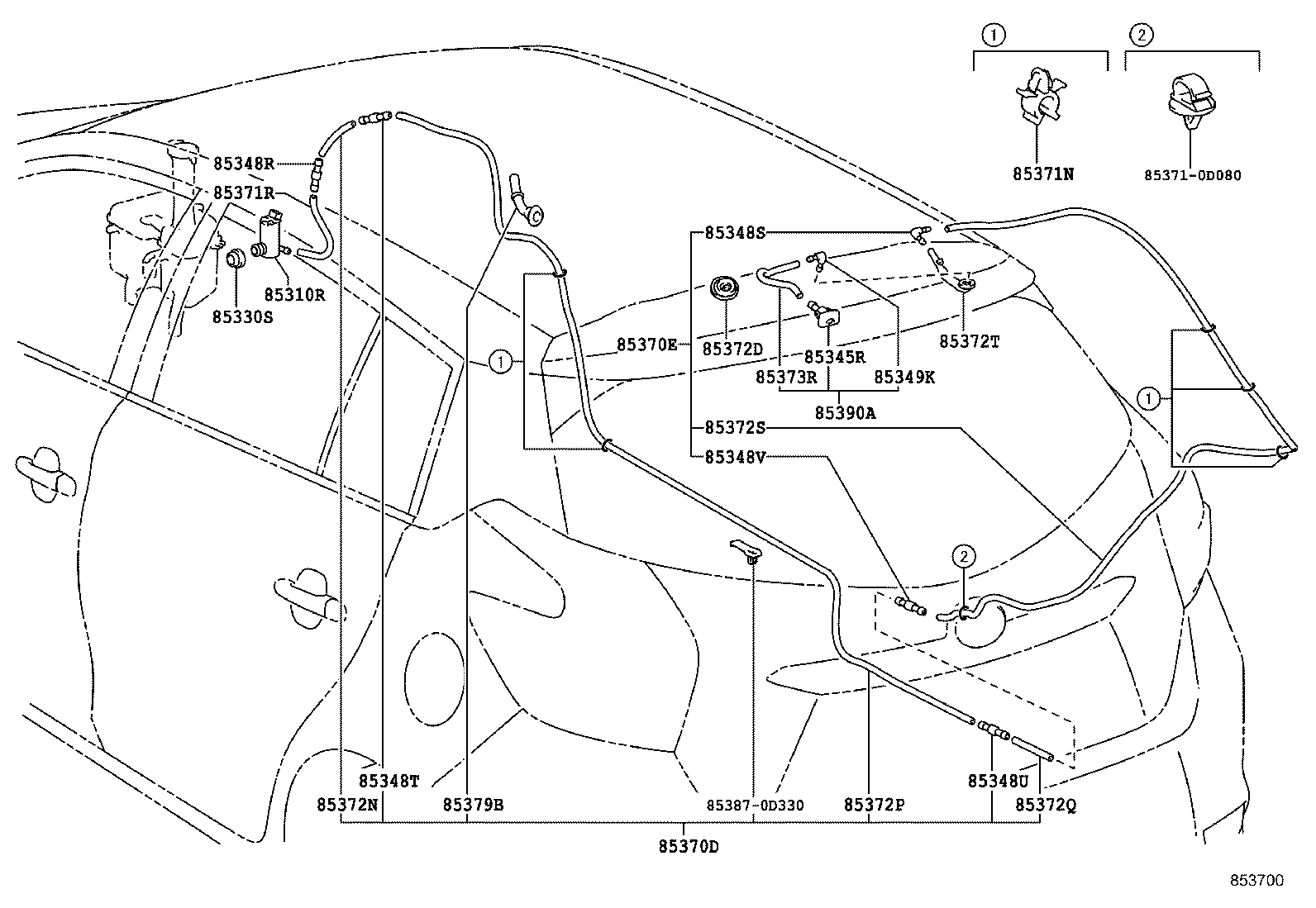

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85310R - MOTOR ASSY, REAR WASHER | ||||
| 85330-0D171 |
NSP150..5D |
1 | ||
| 85330S - BUSH, REAR WASHER JAR | ||||
| 90068-32006 |
NSP150..5D |
1 | ||
| 85345R - NOZZLE, REAR WASHER | ||||
| 85391-0D070 |
NSP150..5D |
1 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85375-0D030 |
NSP150..5D |
1 | ||
| 85348S - JOINT, REAR WASHER ELBOW, NO.1 | ||||
| 85377-0D030 |
NSP150..5D |
1 | ||
| 85348T - JOINT, REAR WASHER HOSE, NO.2 | ||||
| 85375-0D030 |
NSP150..5D |
1 | ||
| 85348U - JOINT, REAR WASHER HOSE, NO.3 | ||||
| 85375-0D030 |
NSP150..5D |
1 | ||
| 85348V - JOINT, REAR WASHER HOSE, NO.4 | ||||
| 85375-0D030 |
NSP150..5D |
1 | ||
| 85349K - JOINT, REAR WASHER ELBOW, NO.2 | ||||
| 85377-0D030 |
NSP150..5D |
1 | ||
| 85370D - HOSE ASSY, REAR WASHER, NO.1 | ||||
| 85370-0D480 |
NSP150..5D |
1 | ||
| 85370E - HOSE ASSY, REAR WASHER, NO.2 | ||||
| 85370-0D490 |
NSP150..5D |
1 | ||
| 85371N - CLAMP, REAR WASHER HOSE | ||||
| 90469-C0014 |
NSP150..5D (L) |
5 | ||
| 90469-07011 |
NSP15#..5D |
5 | ||
| 90469-07011 |
NSP150..5D (J) |
5 | ||
| 85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT) | ||||
| 90068-59162 |
NSP150..5D L=190 |
1 | ||
| 85372D - GROMMET, REAR WASHER HOSE | ||||
| 85372-20020 |
NSP150..5D |
1 | ||
| 85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90068-33302 |
NSP150..5D L=50 |
1 | ||
| 85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90068-59163 |
NSP150..5D L=2290 |
1 | ||
| 85372Q - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90068-33302 |
NSP150..5D L=50 |
1 | ||
| 85372S - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4 | ||||
| 90068-59163 |
NSP150..5D L=2290 |
1 | ||
| 85372T - GROMMET, WASHER | ||||
| 85372-20040 |
NSP150..5D |
1 | ||
| 85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE) | ||||
| 90068-33301 |
NSP150..5D L=250 |
1 | ||
| 85379B - GROMMET, WASHER, A | ||||
| 85379-52530 |
NSP150..5D |
1 | ||
| 85390A - NOZZLE & HOSE ASSY, RR WASHER | ||||
| 85390-0D160 |
NSP150..5D |
1 | ||
| Common parts | ||||
| 85371-0D080 | ||||
| 85387-0D330 | ||||
