NSP150L-BHMRKC (2017)

Toyota Vios/Vios Fs (China)

Production Mar 2017 - Apr 2020
Engine 4NRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 3(1703- )5D

Click highlighted areas on diagram

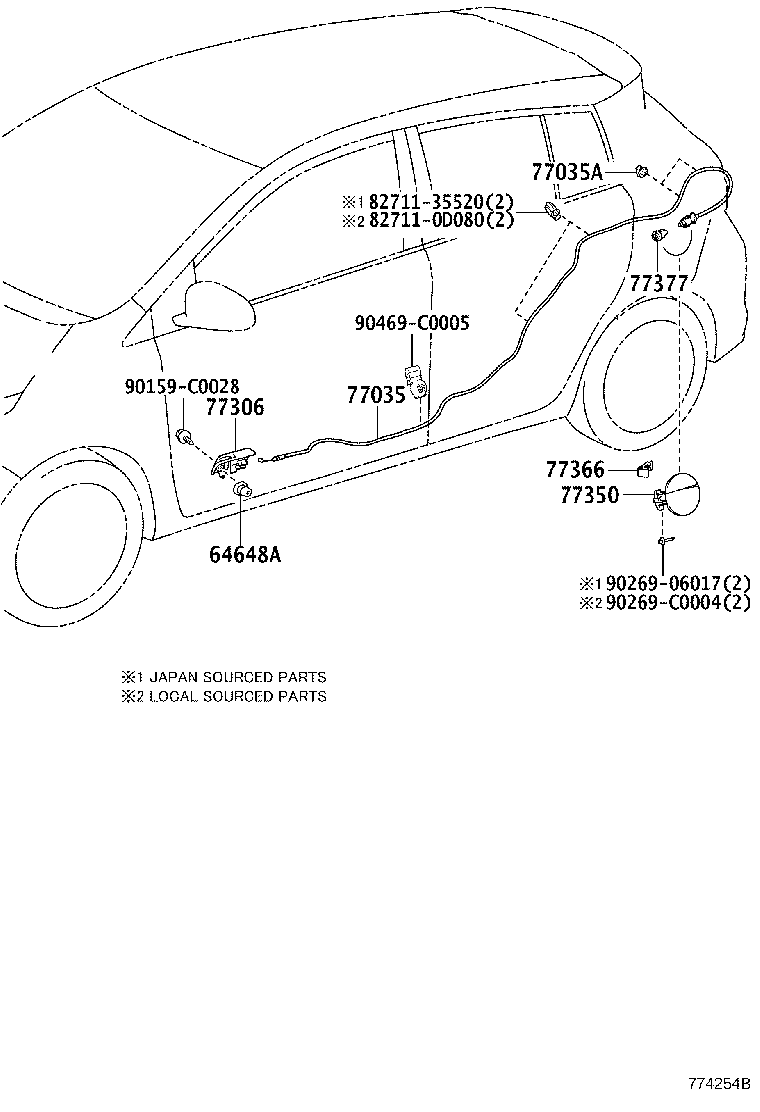

FUEL LID OPENER

diagram 64648A 77035 77035A 77306 77350 77366 77377 827110D080 8271135520 90159C0028 9026906017 90269C0004 90469C0005
Part # Description Qty Price
64648A - GROMMET, LUGGAGE DOOR LOCK OPENER
64648-32020

NSP15#..5D

 1
64648-02020

NSP150..5D

 1
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-0D450

NSP150..5D

 1
77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE)
90469-C0004

NSP150..5D

 2
77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN
77306-0D130

NSP150..5D

 1
77350 - LID ASSY, FUEL FILLER OPENING
77350-0D290

NSP150..5D

 1
Common parts
82711-0D080
82711-35520
90159-C0028
90269-06017
90269-C0004
90469-C0005
