NSP150L-BHMRKC (2017)

Toyota Vios/Vios Fs (China)

Production Mar 2017 - Apr 2020
Engine 4NRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1703- )5D

Click highlighted areas on diagram

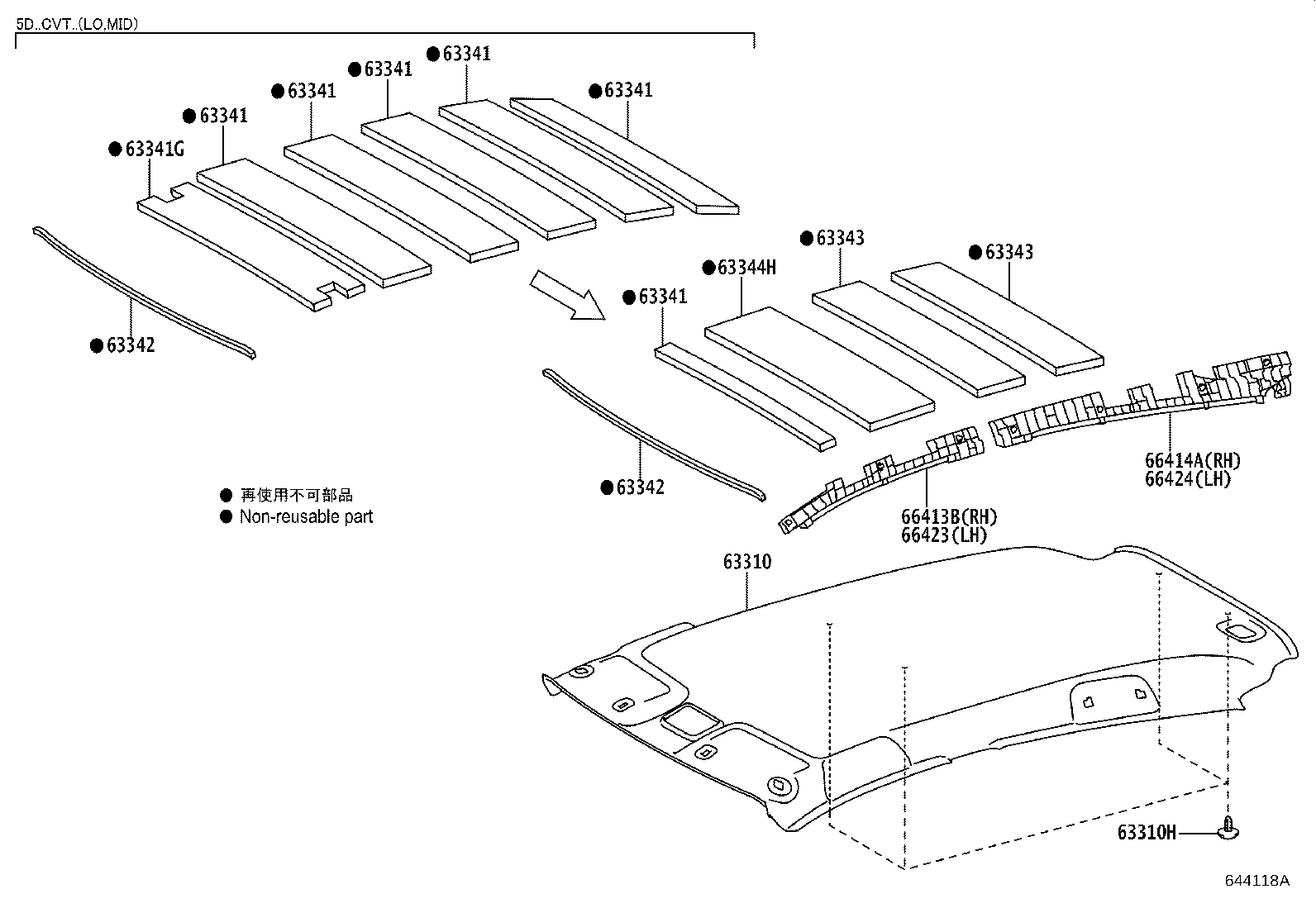

W/O(MOON ROOF)

diagram 63310 63310H 63341 63341 63341 63341 63341 63341 63341G 63342 63342 63343 63343 63344H 66413B 66414A 66423 66424
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63310-0DA80B0

NSP150..5D

GRAY,TRIM2#

 1
63310-0DA80A0

NSP150..5D

IVORY,TRIM0#

 1
63341 - PAD, ROOF SILENCER, NO.1
63341-0D440

NSP150..5D..5F

 1
63341 - PAD, ROOF SILENCER, NO.1
63341-0D440

NSP150..5D..5F

 1
63341 - PAD, ROOF SILENCER, NO.1
63341-0D440

NSP150..5D..5F

 1
63341 - PAD, ROOF SILENCER, NO.1
63341-0D440

NSP150..5D..5F

 1
63341 - PAD, ROOF SILENCER, NO.1
63341-0D440

NSP150..5D..5F

 1
63341 - PAD, ROOF SILENCER, NO.1
63341-0D440

NSP150..5D..5F

 1
63343 - PAD, ROOF SILENCER, NO.3
63343-0D310

NSP150..5D..5F

 2
63343 - PAD, ROOF SILENCER, NO.3
63343-0D310

NSP150..5D..5F

 2
63344H - PAD, ROOF SILENCER, NO.4
63343-0D320

NSP150..5D..5F

 1
66414A - SPACER, SIDE RAIL, REAR RH
66414-0D360

NSP150..5D

 1
66424 - SPACER, SIDE RAIL, REAR LH
66424-0D360

NSP150..5D

 1

(1703- )5D

Click highlighted areas on diagram

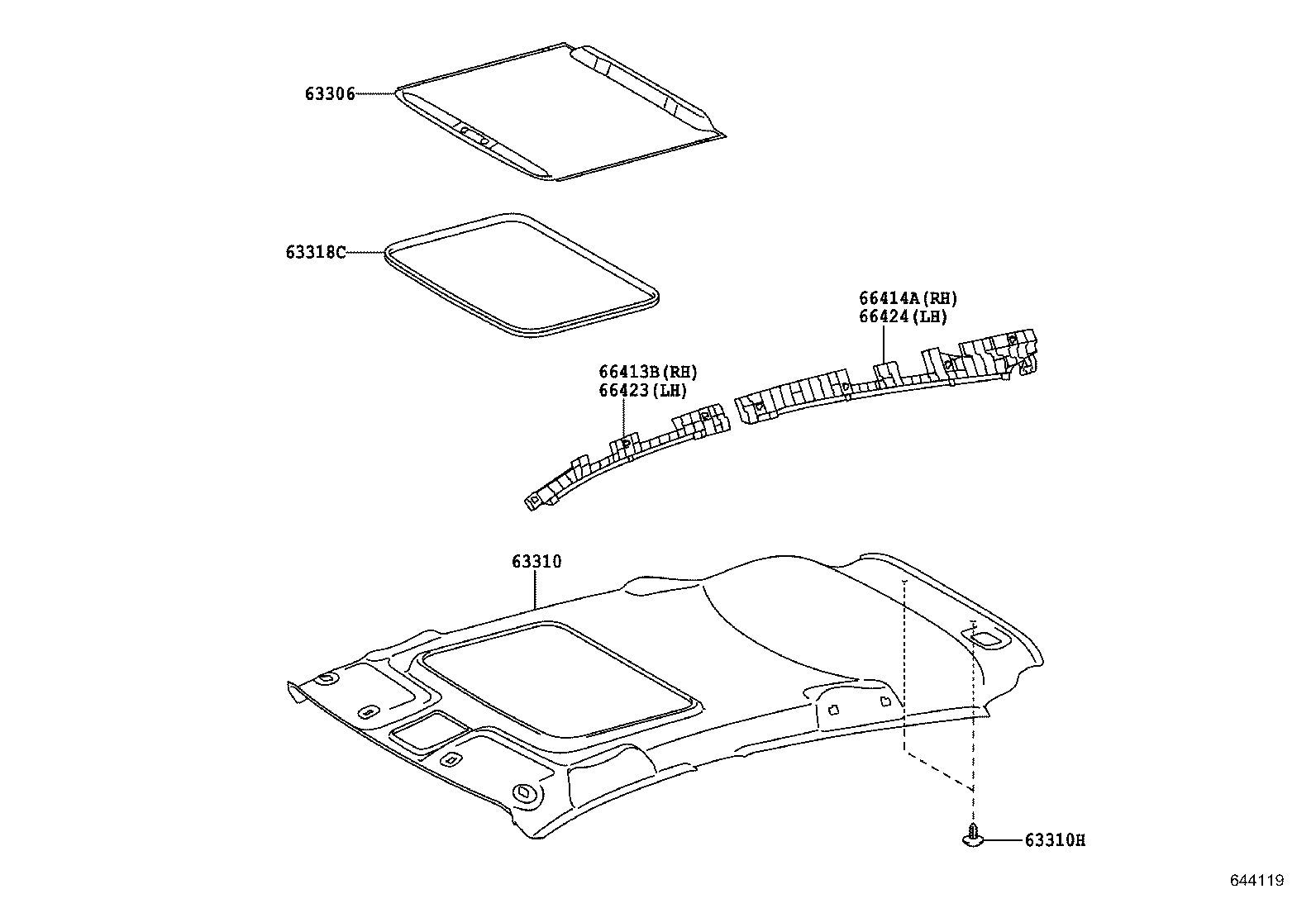

W(MOON ROOF)

diagram 63306 63310 63310H 63318C 66413B 66414A 66423 66424
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63310-0DA80B0

NSP150..5D

GRAY,TRIM2#

 1
63310-0DA80A0

NSP150..5D

IVORY,TRIM0#

 1
66414A - SPACER, SIDE RAIL, REAR RH
66414-0D360

NSP150..5D

 1
66424 - SPACER, SIDE RAIL, REAR LH
66424-0D360

NSP150..5D

 1
