NSP150L-BHMRKC (2017)

Toyota Vios/Vios Fs (China)

Production Mar 2017 - Apr 2020
Engine 4NRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1703- )5D

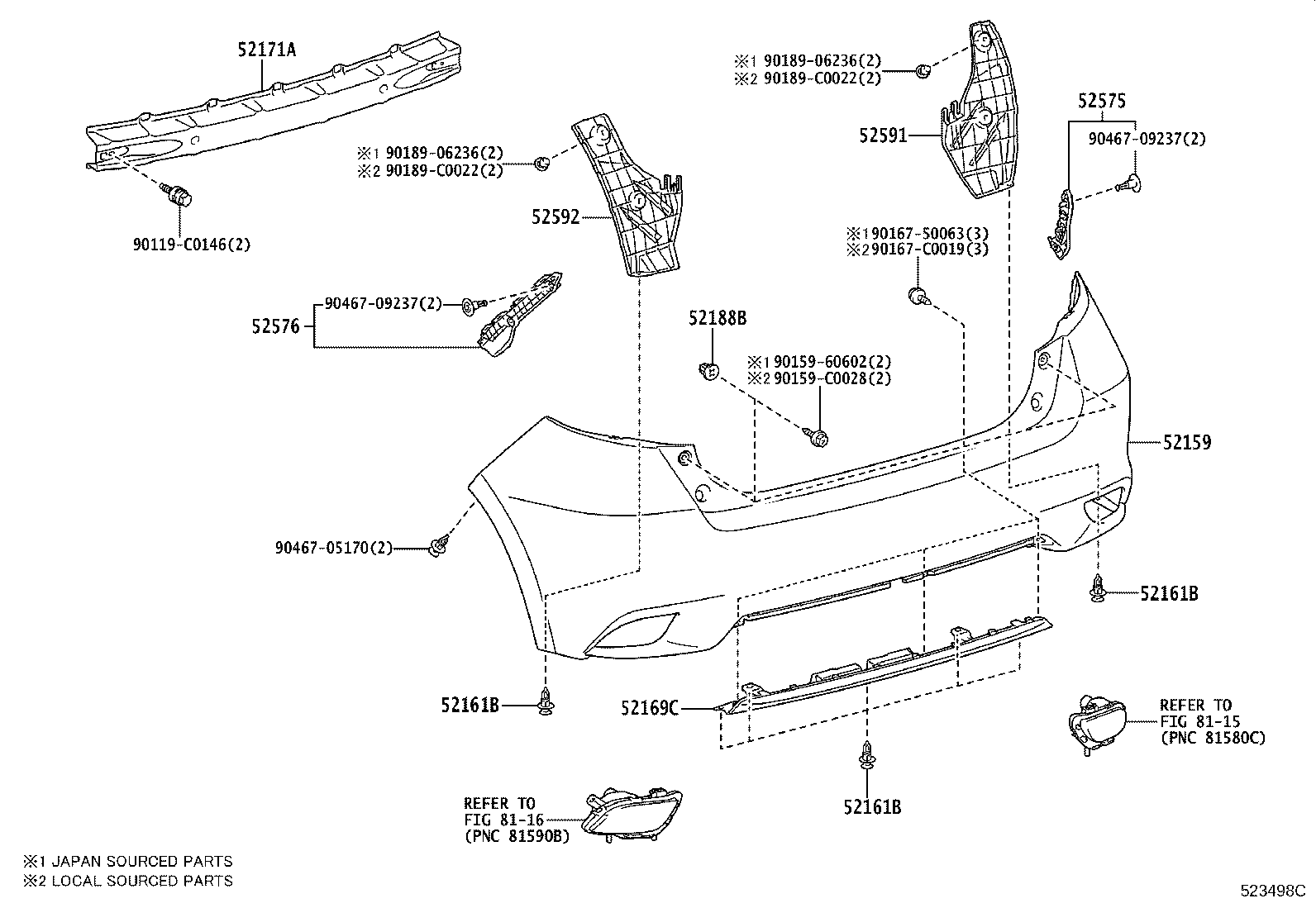

Click highlighted areas on diagram

diagram 52159 52161B 52161B 52161B 52169C 52171A 52188B 52575 52576 52591 52592 8115 8116 90119C0146 9015960602 90159C0028 9016750063 90167C0019 9018906236 9018906236 90189C0022 90189C0022 9046705170 9046709237 9046709237
Part # Description Qty Price
52159 - COVER, REAR BUMPER
52159-0Z939

NSP150..5D

PAINT REQ.

 1
52161B - PIECE, REAR BUMPER
52161-02040

NSP150..5D

 7
52161B - PIECE, REAR BUMPER
52161-02040

NSP150..5D

 7
52161B - PIECE, REAR BUMPER
52161-02040

NSP150..5D

 7
52169C - COVER, REAR BUMPER, LOWER
52169-0D060

NSP150..5D

PAINT REQ.

 1
52188B - SPACER, REAR BUMPER MOUNTING
52188-33040

NSP150..5D

(J)

 2
52188-33040

NSP15#..5D

 2
90189-C0023

NSP150..5D

(L)

 2
52575 - RETAINER, REAR BUMPER SIDE, RH
52575-0D440

NSP150..5D

 1
52576 - RETAINER, REAR BUMPER SIDE, LH
52576-0D430

NSP150..5D

 1
52591 - SEAL, REAR BUMPER SIDE, RH
52591-0D510

NSP150..5D

 1
52592 - SEAL, REAR BUMPER SIDE, LH
52592-0D510

NSP150..5D

 1
Common parts
90119-C0146
90159-60602
90159-C0028
90167-50063
90167-C0019
90189-06236
90189-C0022
90467-05170
90467-09237
Linked diagrams
8115
8116
