NSP150L-BEPRKC (2013)

Toyota Vios/Vios Fs (China)

Production Nov 2013 - Sep 2016
Engine 4NRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1311- )4D..N,R

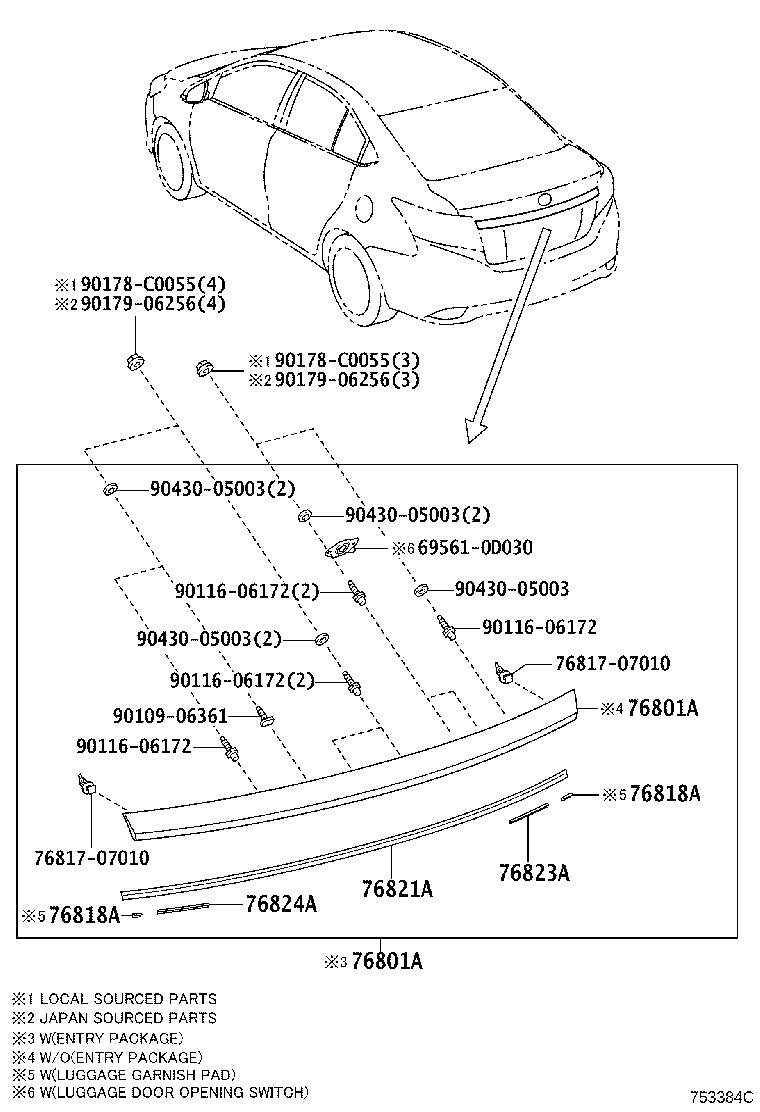

Click highlighted areas on diagram

diagram 695610D030 76801A 76801A 7681707010 7681707010 76818A 76818A 76821A 76823A 76824A 9010906361 9011606172 9011606172 9011606172 9011606172 90178C0055 90178C0055 9017906256 9017906256 9043005003 9043005003 9043005003 9043005003
Part # Description Qty Price
76801A - GARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE
76811-0D912

NSP15#..N,R

PAINT REQ.

 1
76801A - GARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE
76811-0D912

NSP15#..N,R

PAINT REQ.

 1
76821A - PROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH
76825-0D030

NSP15#

 1
76823A - PROTECTOR, LUGGAGE COMPARTMENT DOOR GARNISH, OUTSIDE RH
76821-0D100

NSP15#

 1
76824A - PROTECTOR, LUGGAGE COMPT DOOR GARNISH, OUTSIDE LH
76821-0D100

NSP15#

 1
Common parts
69561-0D030
76817-07010
90109-06361
90116-06172
90178-C0055
90179-06256
90430-05003
