NSP150L-BEPRKC (2013)
Toyota Vios/Vios Fs (China)

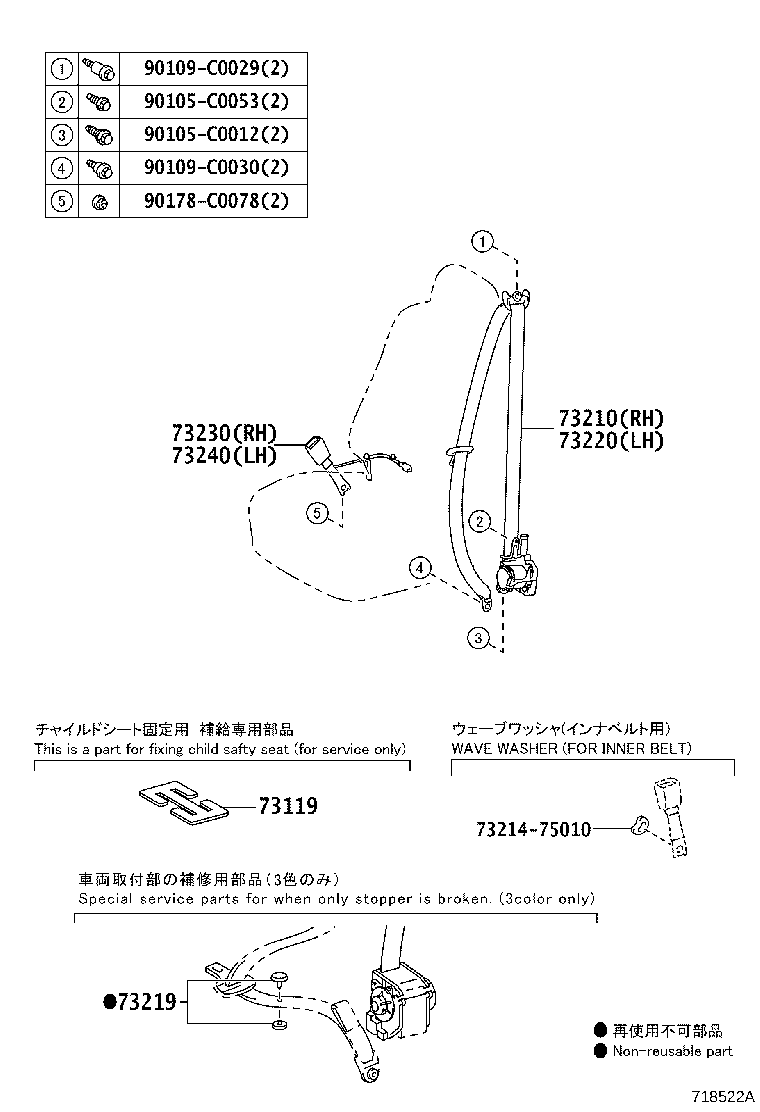

ILLUST NO. 1 OF 2(1311- )
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73119 - PLATE, SEAT BELT WEBBING CLIP | ||||
| 73119-22010 |
NSP15# |
1 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-0D350C0 |
NSP15# BLACK,TRIM2# |
1 | ||
| 73210-0D350A0 |
NSP15# IVORY,TRIM0# |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33010 |
NSP15# BLACK |
1 | ||
| 73219-33020 |
NSP15# GRAY |
1 | ||
| 73219-33030 |
NSP15# BEIGE |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-0D330A0 |
NSP15# IVORY,TRIM0# |
1 | ||
| 73220-0D330C0 |
NSP15# BLACK,TRIM2# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-0D400C0 |
NSP15# BLACK,TRIM2# |
1 | ||
| 73230-0D400A0 |
NSP15# IVORY,TRIM0# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-0D410A0 |
NSP15# IVORY,TRIM0# |
1 | ||
| 73230-0D410C0 |
NSP15# BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 73214-75010 | ||||
| 90105-C0012 | ||||
| 90105-C0053 | ||||
| 90109-C0029 | ||||
| 90109-C0030 | ||||
| 90178-C0078 | ||||

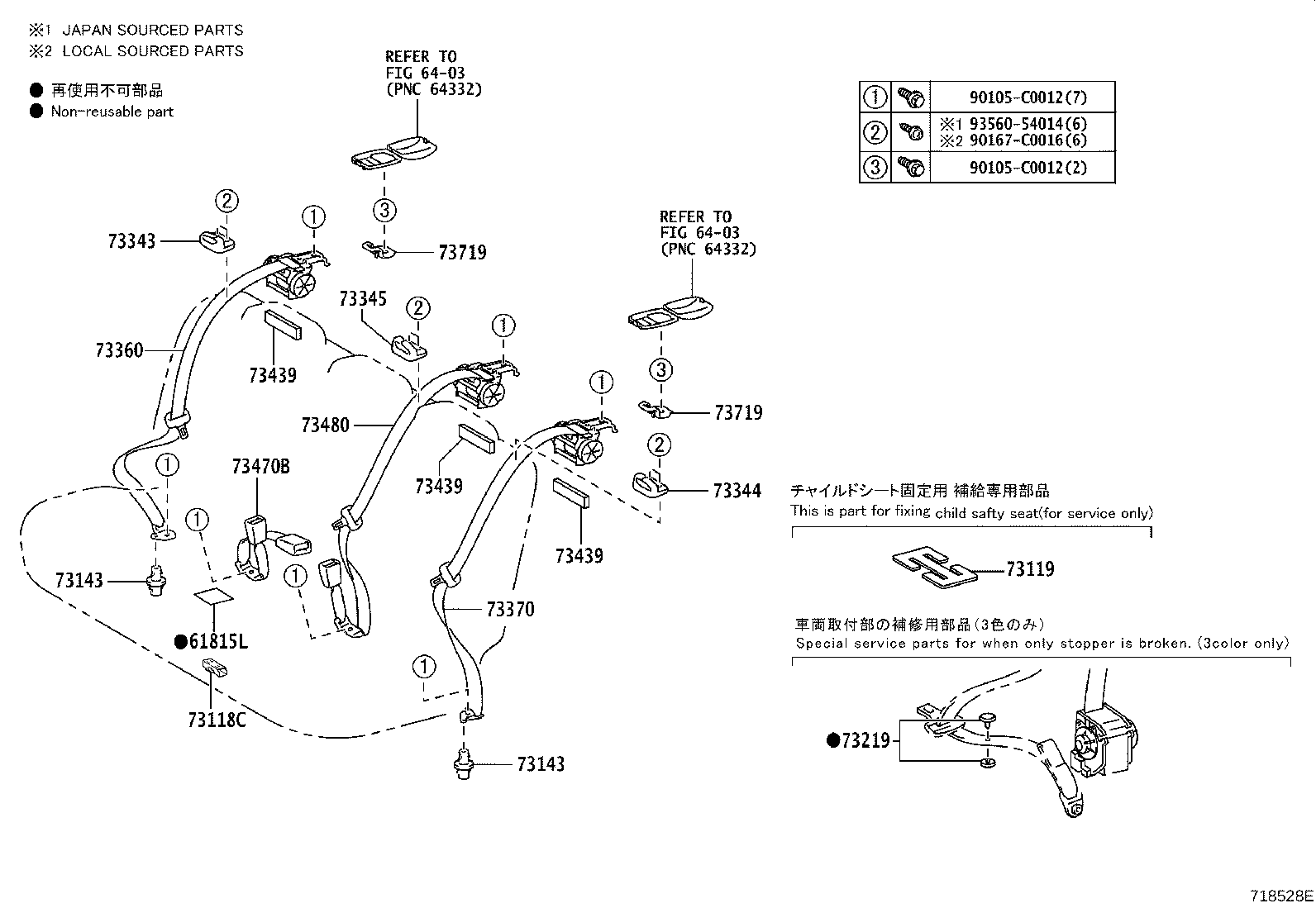

ILLUST NO. 2 OF 2(1311- )4D..G,N
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73119 - PLATE, SEAT BELT WEBBING CLIP | ||||
| 73119-22010 |
NSP15# |
1 | ||
| 73143 - SEAL, SEAT BELT HOLE | ||||
| 73143-52012 |
NSP15# |
2 | ||
| 73143 - SEAL, SEAT BELT HOLE | ||||
| 73143-52012 |
NSP15# |
2 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33010 |
NSP15# BLACK |
1 | ||
| 73219-33020 |
NSP15# GRAY |
1 | ||
| 73219-33030 |
NSP15# BEIGE |
1 | ||
| 73343 - GUIDE, REAR SEAT SHOULDER BELT, RH | ||||
| 73343-33020A3 |
NSP15# IVORY,TRIM0# |
1 | ||
| 73343-33020C0 |
NSP15# BLACK,TRIM2# |
1 | ||
| 73344 - GUIDE, REAR SEAT SHOULDER BELT, LH | ||||
| 73344-33020A3 |
NSP15# IVORY,TRIM0# |
1 | ||
| 73344-33020C0 |
NSP15# BLACK,TRIM2# |
1 | ||
| 73345 - GUIDE, REAR SEAT SHOULDER BELT, CENTER | ||||
| 73344-33020A3 |
NSP15# IVORY,TRIM0# |
1 | ||
| 73344-33020C0 |
NSP15# BLACK,TRIM2# |
1 | ||
| 73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH | ||||
| 73360-0D220A0 |
NSP15#..R IVORY,TRIM0# |
1 | ||
| 73360-0D300A0 |
NSP15#..G,N IVORY,TRIM0# |
1 | ||
| 73360-0D300C0 |
NSP15#..G,N BLACK,TRIM2# |
1 | ||
| 73360-0D220C0 |
NSP15#..R BLACK,TRIM2# |
1 | ||
| 73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH | ||||
| 73370-0D180A0 |
NSP15#..R IVORY,TRIM0# |
1 | ||
| 73370-0D260C0 |
NSP15#..G,N BLACK,TRIM2# |
1 | ||
| 73370-0D260A0 |
NSP15#..G,N IVORY,TRIM0# |
1 | ||
| 73370-0D180C0 |
NSP15#..R BLACK,TRIM2# |
1 | ||
| 73439 - CUSHION, REAR SEAT BELT RETRACTOR | ||||
| 73439-0D040 |
NSP15#..R |
3 | ||
| 73439-0D040 |
NSP15#..G,N |
1 | ||
| 73470B - BELT ASSY, REAR SEAT INNER W/CENTER, RH | ||||
| 73470-0D200A0 |
NSP15# IVORY,TRIM0# |
1 | ||
| 73470-0D200C0 |
NSP15# BLACK,TRIM2# |
1 | ||
| 73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH | ||||
| 73480-0D160C0 |
NSP15# BLACK,TRIM2# |
1 | ||
| 73480-0D160A0 |
NSP15# IVORY,TRIM0# |
1 | ||
| 73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73719-52030 |
NSP15# |
2 | ||
| 73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73719-52030 |
NSP15# |
2 | ||
| Common parts | ||||
| 90105-C0012 | ||||
| 90167-C0016 | ||||
| 93560-54014 | ||||
| Linked diagrams | ||||
| 6403 | ||||
ILLUST NO. 2 OF 2(1311- )4D..R
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73119 - PLATE, SEAT BELT WEBBING CLIP | ||||
| 73119-22010 |
NSP15# |
1 | ||
| 73143 - SEAL, SEAT BELT HOLE | ||||
| 73143-52012 |
NSP15# |
2 | ||
| 73143 - SEAL, SEAT BELT HOLE | ||||
| 73143-52012 |
NSP15# |
2 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33010 |
NSP15# BLACK |
1 | ||
| 73219-33020 |
NSP15# GRAY |
1 | ||
| 73219-33030 |
NSP15# BEIGE |
1 | ||
| 73343 - GUIDE, REAR SEAT SHOULDER BELT, RH | ||||
| 73343-33020A3 |
NSP15# IVORY,TRIM0# |
1 | ||
| 73343-33020C0 |
NSP15# BLACK,TRIM2# |
1 | ||
| 73344 - GUIDE, REAR SEAT SHOULDER BELT, LH | ||||
| 73344-33020A3 |
NSP15# IVORY,TRIM0# |
1 | ||
| 73344-33020C0 |
NSP15# BLACK,TRIM2# |
1 | ||
| 73345 - GUIDE, REAR SEAT SHOULDER BELT, CENTER | ||||
| 73344-33020A3 |
NSP15# IVORY,TRIM0# |
1 | ||
| 73344-33020C0 |
NSP15# BLACK,TRIM2# |
1 | ||
| 73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH | ||||
| 73360-0D220A0 |
NSP15#..R IVORY,TRIM0# |
1 | ||
| 73360-0D300A0 |
NSP15#..G,N IVORY,TRIM0# |
1 | ||
| 73360-0D300C0 |
NSP15#..G,N BLACK,TRIM2# |
1 | ||
| 73360-0D220C0 |
NSP15#..R BLACK,TRIM2# |
1 | ||
| 73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH | ||||
| 73370-0D180A0 |
NSP15#..R IVORY,TRIM0# |
1 | ||
| 73370-0D260C0 |
NSP15#..G,N BLACK,TRIM2# |
1 | ||
| 73370-0D260A0 |
NSP15#..G,N IVORY,TRIM0# |
1 | ||
| 73370-0D180C0 |
NSP15#..R BLACK,TRIM2# |
1 | ||
| 73439 - CUSHION, REAR SEAT BELT RETRACTOR | ||||
| 73439-0D040 |
NSP15#..R |
3 | ||
| 73439-0D040 |
NSP15#..G,N |
1 | ||
| 73439 - CUSHION, REAR SEAT BELT RETRACTOR | ||||
| 73439-0D040 |
NSP15#..R |
3 | ||
| 73439-0D040 |
NSP15#..G,N |
1 | ||
| 73439 - CUSHION, REAR SEAT BELT RETRACTOR | ||||
| 73439-0D040 |
NSP15#..R |
3 | ||
| 73439-0D040 |
NSP15#..G,N |
1 | ||
| 73470B - BELT ASSY, REAR SEAT INNER W/CENTER, RH | ||||
| 73470-0D200A0 |
NSP15# IVORY,TRIM0# |
1 | ||
| 73470-0D200C0 |
NSP15# BLACK,TRIM2# |
1 | ||
| 73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH | ||||
| 73480-0D160C0 |
NSP15# BLACK,TRIM2# |
1 | ||
| 73480-0D160A0 |
NSP15# IVORY,TRIM0# |
1 | ||
| 73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73719-52030 |
NSP15# |
2 | ||
| 73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73719-52030 |
NSP15# |
2 | ||
| Common parts | ||||
| 90105-C0012 | ||||
| 90167-C0016 | ||||
| 93560-54014 | ||||
| Linked diagrams | ||||
| 6403 | ||||
