NSP150L-BEMRKC (2013)

Toyota Vios/Vios Fs (China)

Production Nov 2013 - Sep 2016
Engine 4NRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

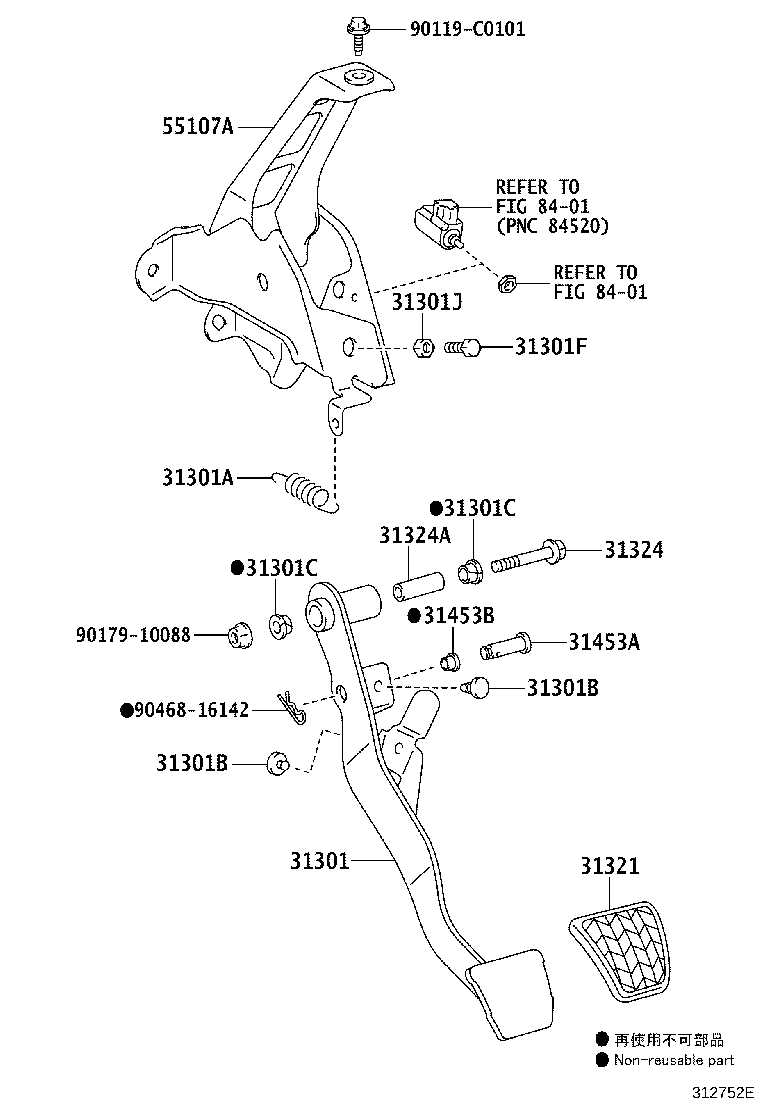

ILLUST NO. 1 OF 2(1311-1609)5F

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301B 31301C 31301C 31301F 31301J 31321 31324 31324A 31453A 31453B 55107A 8401 8401 90119C0101 9017910088 9046816142
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-0D200

NSP15#..5F

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90507-14018

NSP15#..5F

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

NSP15#..5F

 2
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

NSP15#..5F

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

NSP15#..5F

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

NSP15#..5F

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369

NSP15#..5F

 1
31301J - NUT(FOR CLUTCH PEDAL STOPPER)
90170-10017

NSP15#..5F

 1
31321 - PAD, CLUTCH PEDAL
31321-0D080

NSP15#..5F

 1
31324 - SHAFT, CLUTCH PEDAL
90101-10081

NSP15#..5F

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10004

NSP15#..5F

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90249-08256

NSP15#..5F

L=36.5

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

NSP15#..5F

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-0D250

NSP15#..5F

 1
Common parts
90119-C0101
90179-10088
90468-16142
Linked diagrams
8401

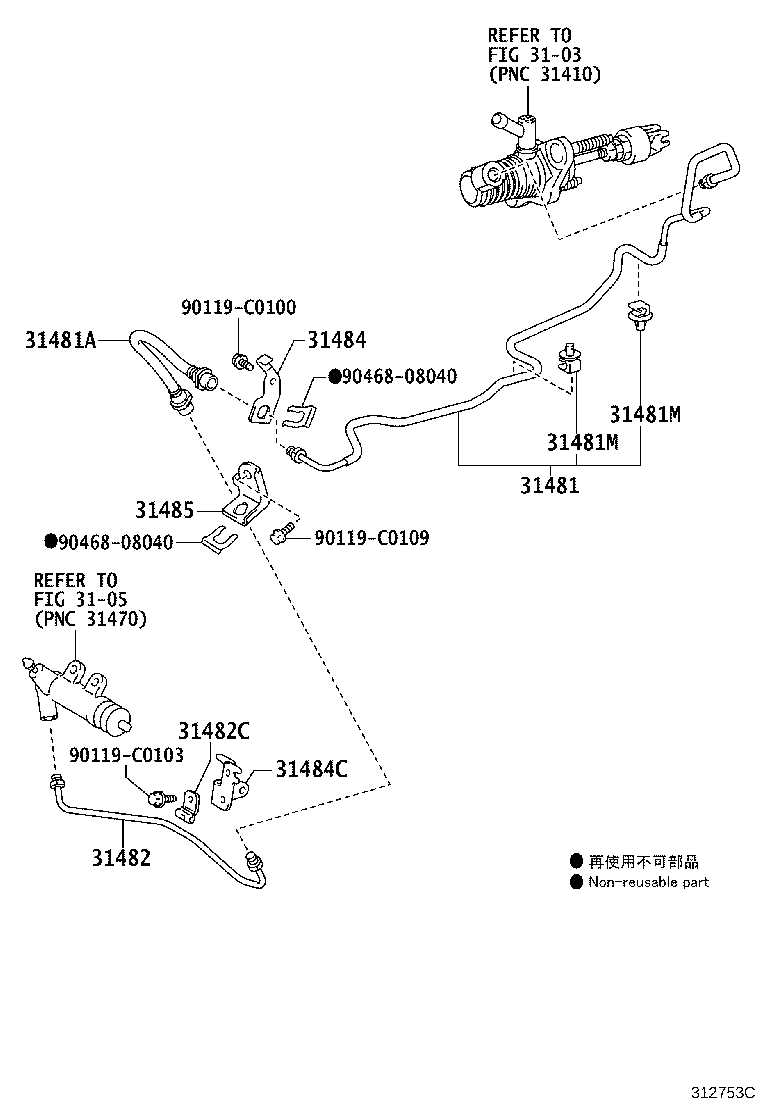

ILLUST NO. 2 OF 2(1311- )5F

Click highlighted areas on diagram

diagram 3103 3105 31481 31481A 31481M 31481M 31482 31482C 31484 31484C 31485 90119C0100 90119C0103 90119C0109 9046808040 9046808040
Part # Description Qty Price
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-0D110

NSP15#..5F

 1
31481A - HOSE, CLUTCH, NO.1
90947-C2054

NSP15#..5F

 1
31481M - CLAMP(FOR CLUTCH MASTER CYLINDER TUBE)
90949-01D17

NSP15#..5F

 2
31481M - CLAMP(FOR CLUTCH MASTER CYLINDER TUBE)
90949-01D17

NSP15#..5F

 2
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-0D190

NSP15#..5F

 1
31482C - CLAMP(FOR CLUTCH TUBE)
90461-08652

NSP15#..5F

 1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-0D140

NSP15#..5F

 1
31484C - BRACKET, CLUTCH TUBE, NO.1
31484-0D130

NSP15#..5F

 1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31484-0D150

NSP15#..5F

 1
Common parts
90119-C0100
90119-C0103
90119-C0109
90468-08040
Linked diagrams
3103
3105
