NSP150L-BEMRKC (2016)

Toyota Vios/Vios Fs (China)

Production Sep 2016 - Apr 2020
Engine 4NRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1609-1811)NSP151..5F ; (1609- )NSP150..5F

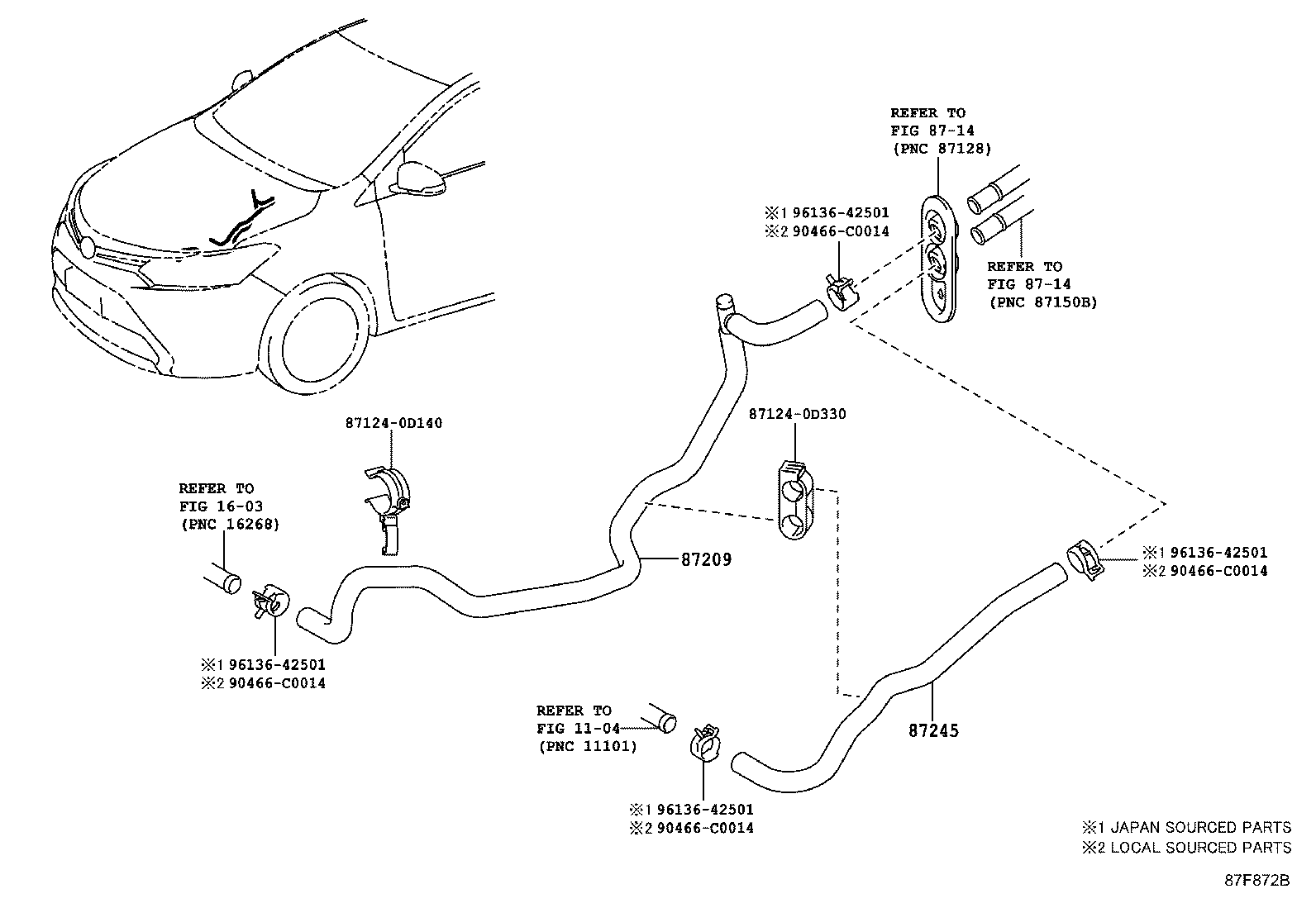

Click highlighted areas on diagram

diagram 1104 1603 871240D140 871240D330 8714 8714 87209 87245 90466C0014 90466C0014 90466C0014 90466C0014 9613642501 9613642501 9613642501 9613642501
Part # Description Qty Price
87209 - HOSE SUB-ASSY, WATER
87209-0D280

NSP150..5F

 1
87245 - HOSE, HEATER WATER, INLET
87245-0D640

NSP150..5F

 1
Common parts
87124-0D140
87124-0D330
90466-C0014
96136-42501
Linked diagrams
1104
1603
8714
