NSP150L-BEMRKC (2016)

Toyota Vios/Vios Fs (China)

Production Sep 2016 - Apr 2020
Engine 4NRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1609-1811)4NRFE,5NRF..5F ; (1811- )4NRFE..5F

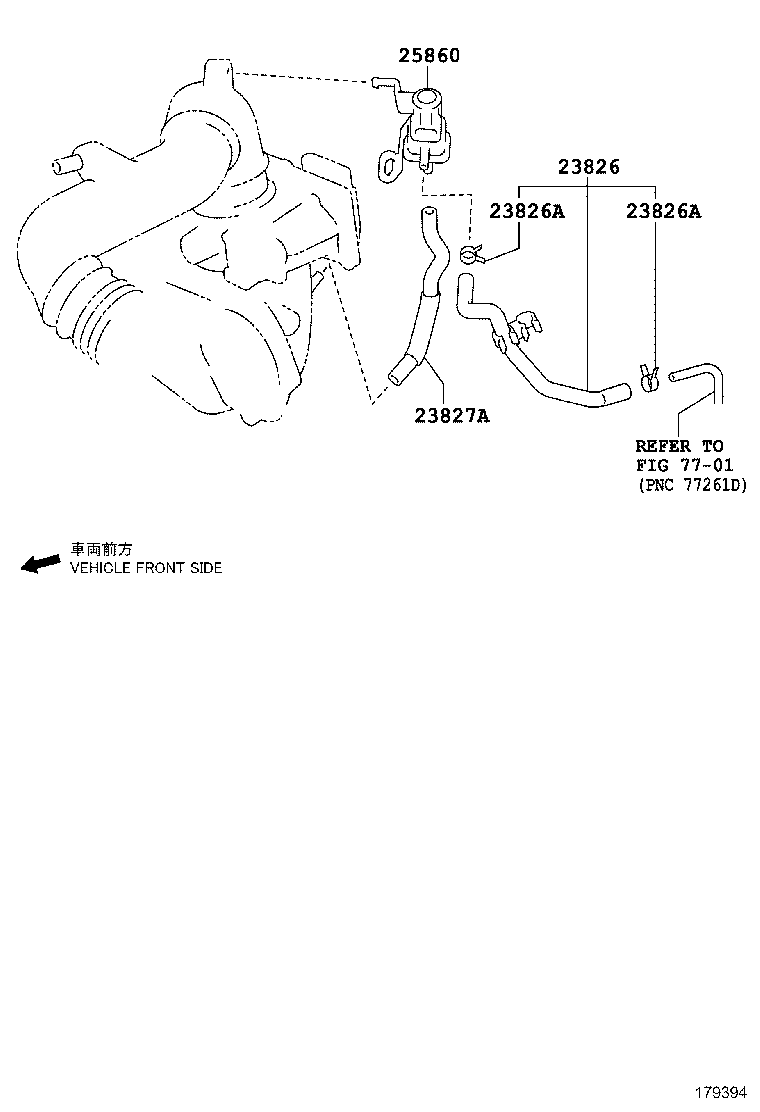

Click highlighted areas on diagram

diagram 23826 23826A 23826A 23827A 25860 7701
Part # Description Qty Price
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-0Y130

4NRFE..NSP150

 1
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
90466-11003

4NRFE..NSP150

 2
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
90466-11003

4NRFE..NSP150

 2
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-0Y130

4NRFE..NSP150

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-0Y070

4NRFE..NSP150

 1
Linked diagrams
7701
