SCP42L-EEPHKC (2006)

Toyota Vios/Soluna Vios

Production Aug 2006 - Feb 2008
Engine 3SZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

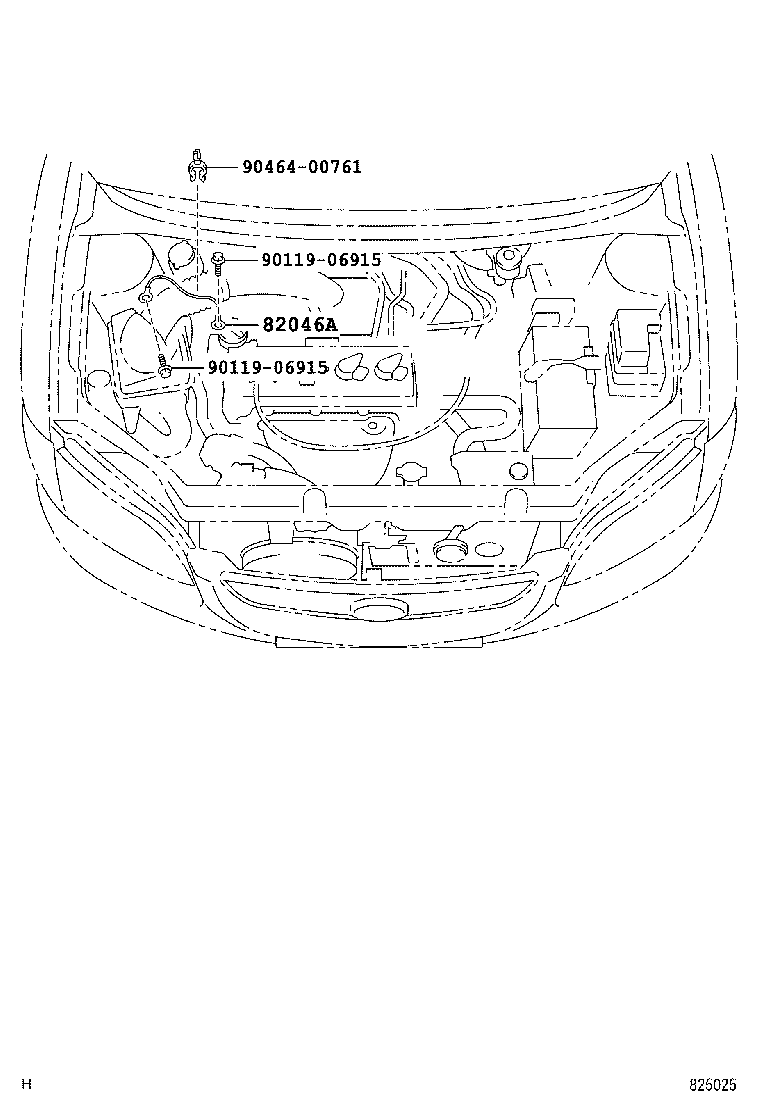

ILLUST NO. 6 OF 8(0608- )GL,GLI

Click highlighted areas on diagram

CABLE BOND

diagram 82046A 9011906915 9011906915 9046400761
Part # Description Qty Price
82046A - WIRE SUB-ASSY, BODY GROUND, NO.1
82046-0D010

SCP42..GLI

 1
Common parts
90119-06915
90464-00761

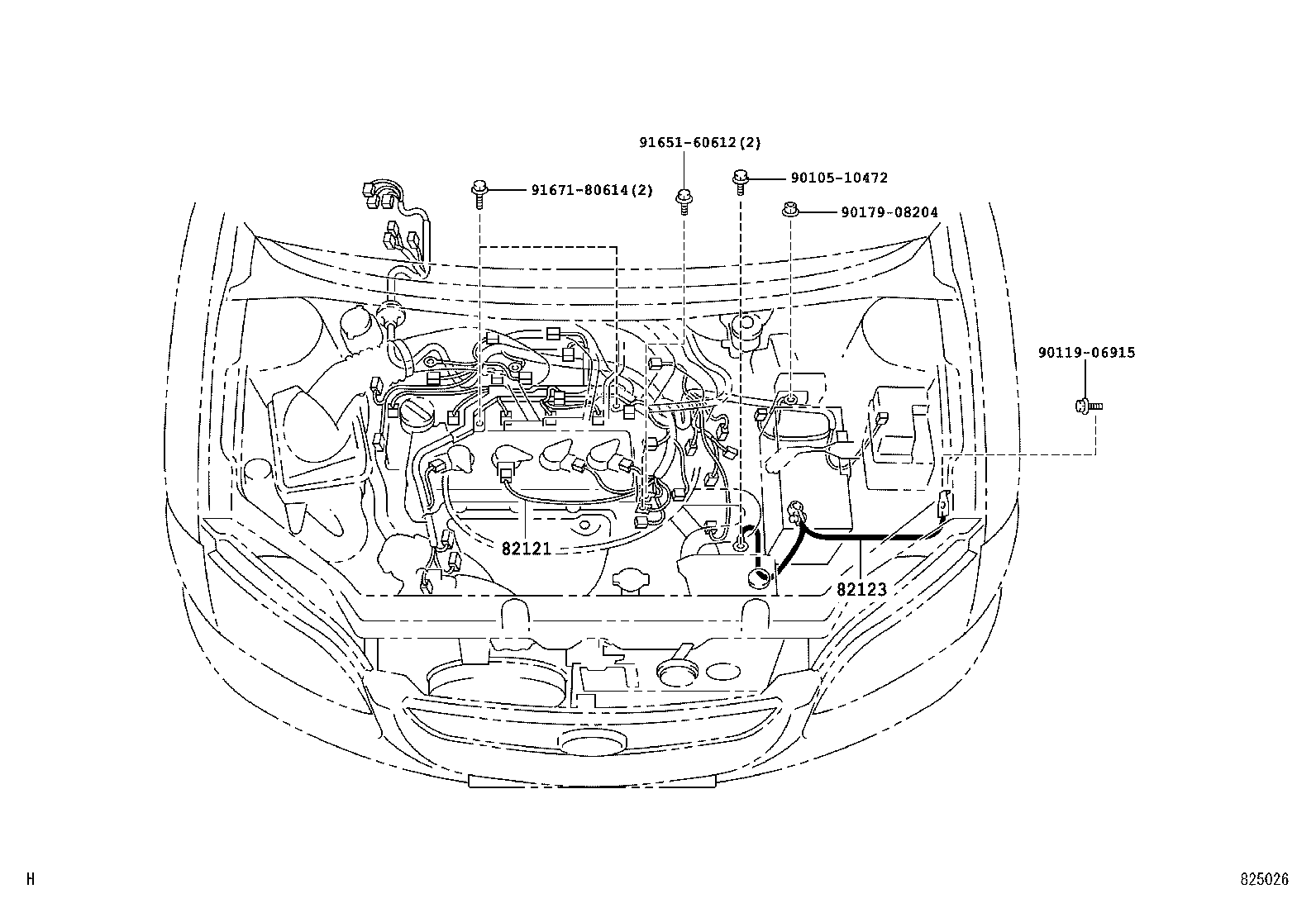

ILLUST NO. 2 OF 8(0608- )SCP4#

Click highlighted areas on diagram

ENGINE

diagram 82121 82123 9010510472 9011906915 9017908204 9165160612 9167180614
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-0D790

SCP42..ATM

 1
82123 - WIRE, ENGINE, NO.3
82123-0D260

SCP4#..ATM

 1
Common parts
90105-10472
90119-06915
90179-08204
91651-60612
91671-80614
